Touch POS P2C-S100 Black

Slim & Sleek Style POS System (Fanless). Intuitive and easy maintenance with left and right I/O ports placement, removable HDD, screw minimized and harness. A variety of replaceable colored covers. Heat dissipation aluminum die casting, flat style ultra-slim design. One touch easily detachable, VESA wall mount capable. PCAP touch with 15 inch LED backlight LCD panel (optional). CPU: Intel® i5 7200U 2.50 GHz to 2.71GHz / Fanless.


Specifications

Touch Systems
Monitor 15" TFT LCD Touch LED Backlight
CPU Intel® i5 7200U 2.50 GHz to 2.71GHz / Fanless
Memory 8GB up to 16GB.
HDD 2.5" SATA SSD 128GB (SSD 256GB, optional)
Operating System Windows 7, Windows 10, Linux
Resolution 1024 x 768

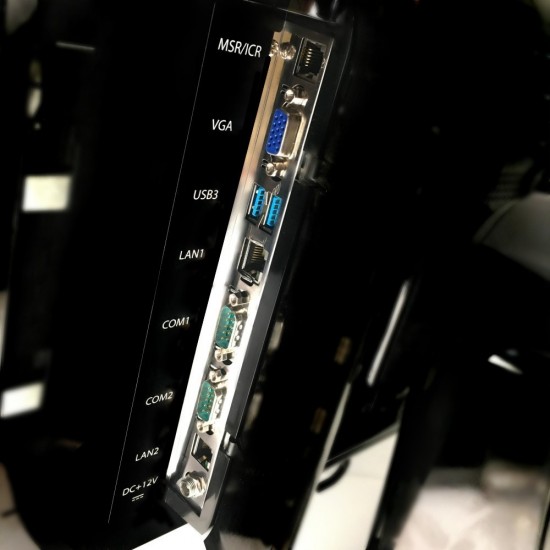

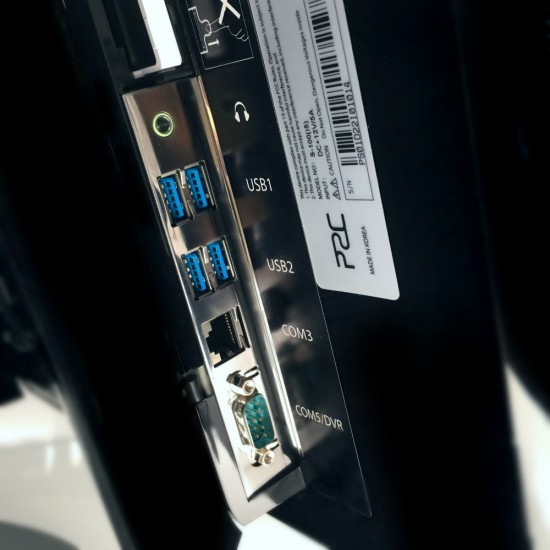

USB Ports 6 x USB 3.0
Serial Ports 5 X Serials (DB9 x 3, RJ50 x 1, RJ11 x 1)
Ethernet Ports 2 x 10/100/1000Mbps Base T Ethernet
Additional Ports 1x VGA port/ 1 x Audio-out
Power supply DC12V-5A Adaptor, 96VAC~250VAC, 47Hz ~ 66Hz 60watt.
Temperature/ Humidity Operating: 0 ~ 50℃ at 10% to 90% humidity
Dimensions/ Weight 354 x 246 x 339 (WxDxH mm)/ 5.5 Kg
Additional features Touch Touch Systems Optional: MSR: ISO7811, All Track. Customer Display 10''
