Description

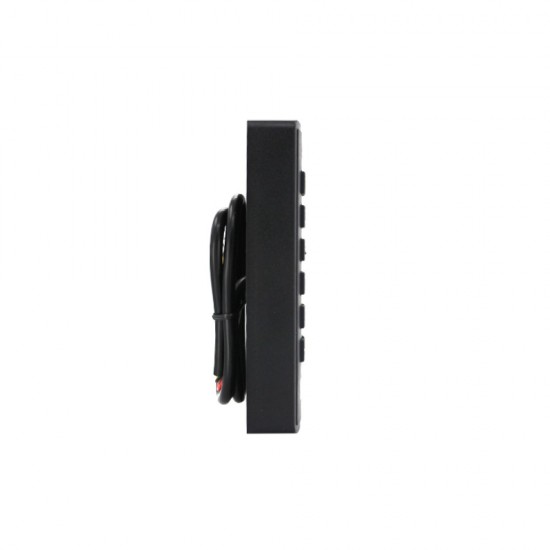

Access Control System WAC-II

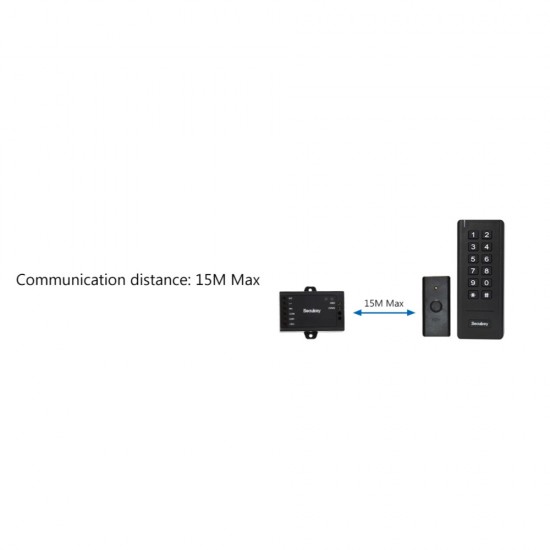

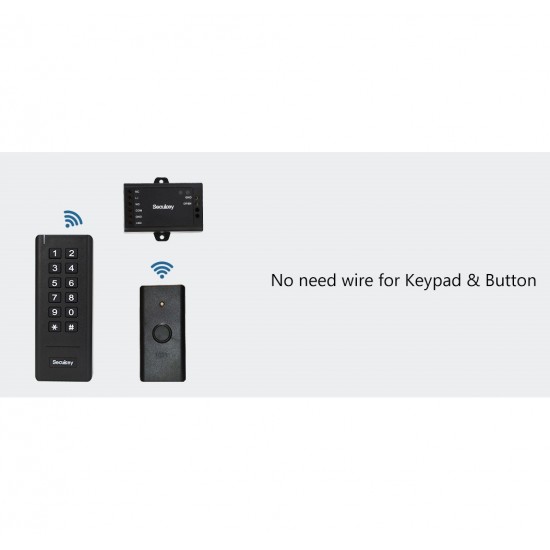

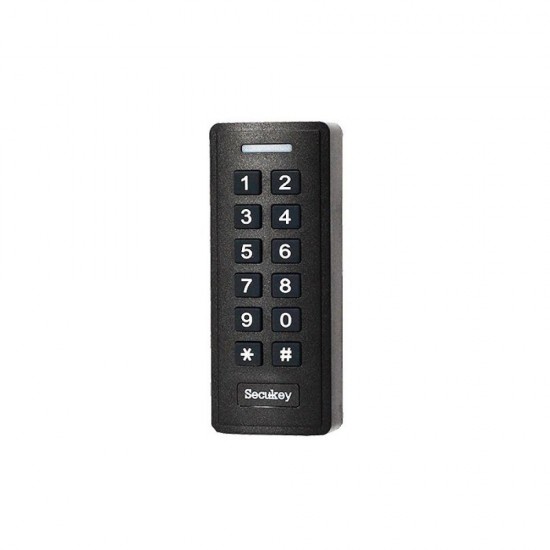

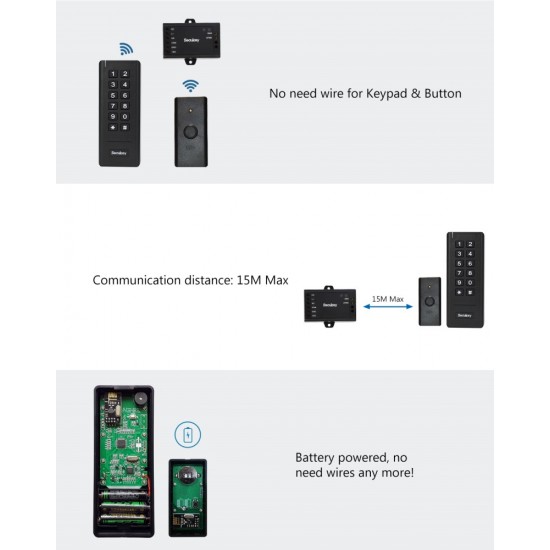

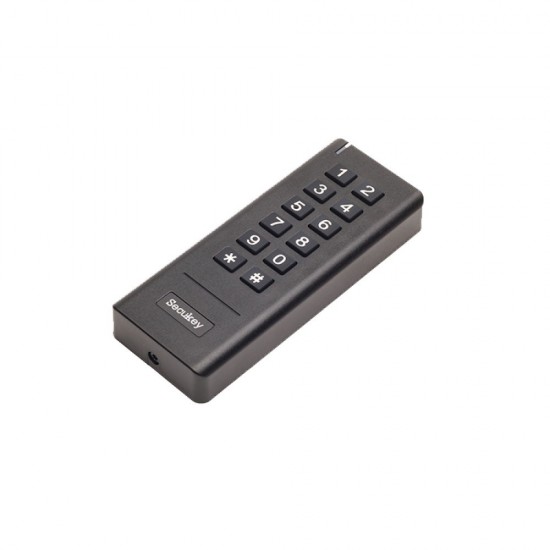

The WAC-II is a single door wireless access control, consists of a wireless keypad, a mini controller and a wireless exit button. TEA and Rolling Code of encryption algorithm and the split design guarantees higher-secure. With 500 PIN/card users, 4~8 digits pIN length, communication distance 15m Max, pulse mode, toggle mode, tri-color LED status display. Ultra low power consumption (wireless keypad<10uA, Wireless Exit Button: <10uA). Supports integrate 1 keypad and 1 exit button, or 2 keypads.




Specifications

Access Control Systems
Operating Voltage 9~18V DC
Frequency 125KHz
Card Type EM Card
Reading Distance 4~8 CM

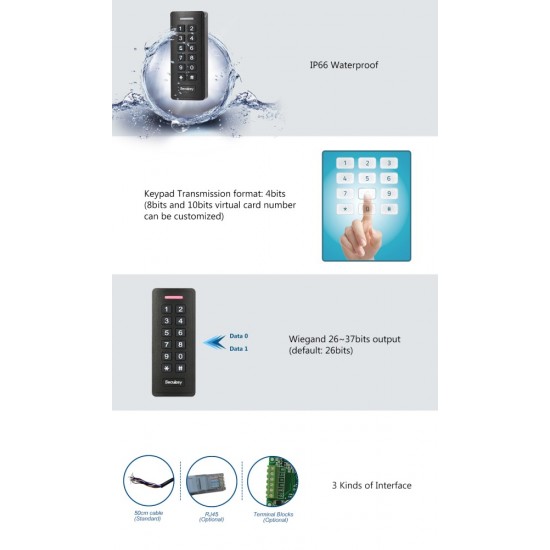

Output Format Programmable Wiegand 26~37 bits (Factory default: 26 bits)
Keypad Transmission Format Programmable 4 bits, 8 bits or virtual card number format (Factory default: 4 bits)
Operating Temperature -40 °C ~ 60 °C (-40 °F ~ 140 °F)
Standby Current < 35mA
Operating Humidity 0%~96% RH
Protection IP IP66
Dimensions/ Weight access control 12.2L x 5.0W x 2.1H (cm)
