P2C-P100 i3 Touch POS

Downloads

File	Size	Download
ics-p2c-100-series-p2c_100 series_gr.pdf	1.08MB	Download

Description
video

Touch POS P2C-P100 i3

Slim & Sleek Style POS System (Fanless). Intuitive and easy maintenance (Left and right I/O ports placement, Removable HDD, Screw minimized and harness, etc.). A variety of replaceable colored covers. Heat dissipation aluminum die casting, flat style ultra-slim design. One touch easily detachable, VESA wall mount capable. PCAP touch with 15 inch LED backlight LCD panel (optional). CPU: Intel Core™ i3,i5,i7 (3rd generation)

P2C

Specifications

Touch Systems
Monitor	15" with LED Backlight
CPU	Intel Core™ i3,i5
Memory	4GB up to 8GB
Disk	SSD 64GB (default) up to 256GB SSD
Operating System	Windows 7, Windows 10, Linux compatible
Resolution	1024 x 768
USB Ports	4 x USB 2.0 , 2 x USB 3.0, 1 x mini USB
Serial Ports	2 x DB9 (powered on pin 9), 1 x DB9, 1 x RJ50
Ethernet Ports	1 x 10/100/1000Mbps Base T Ethernet

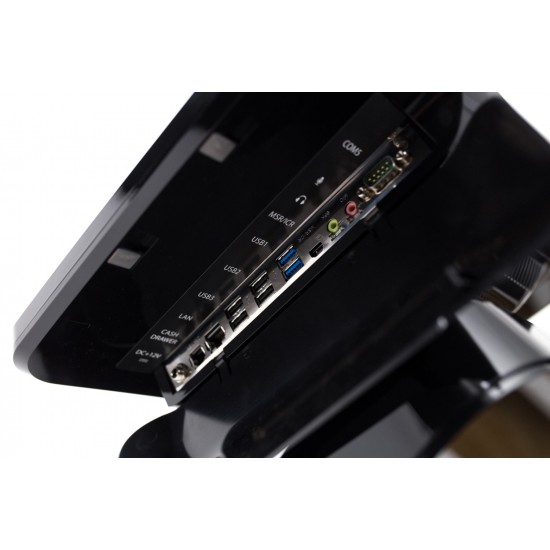

Additional Ports	1x VGA port/ 1x Cash Drawer 1 x RJ11 (12V)/ Audio Ports 1 x Mic-in/ 1 x Audio-out
Power supply	DC12V-5A Adaptor, 96VAC~250VAC, 47Hz ~ 66Hz 60watt.
Temperature/ Humidity	Operating: 0 ℃ ~ 50℃ at 10% to 90% humidity
Dimensions/ Weight	354 x 246 x 339 (WxDxH mm)/ 5.5 Kg
Additional features Touch Touch Systems	Optional: MSR: ISO7811, All Track. Customer Display 10''
