IC-DP-2258 Money Detector

Downloads

File	Size	Download
DP-2258.pdf	470.92KB	Download

Description

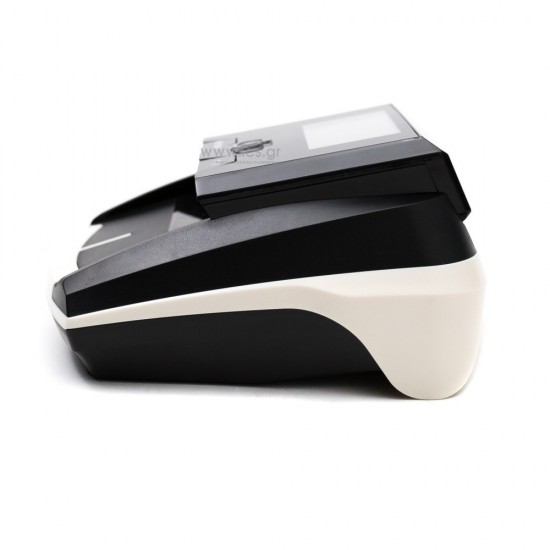

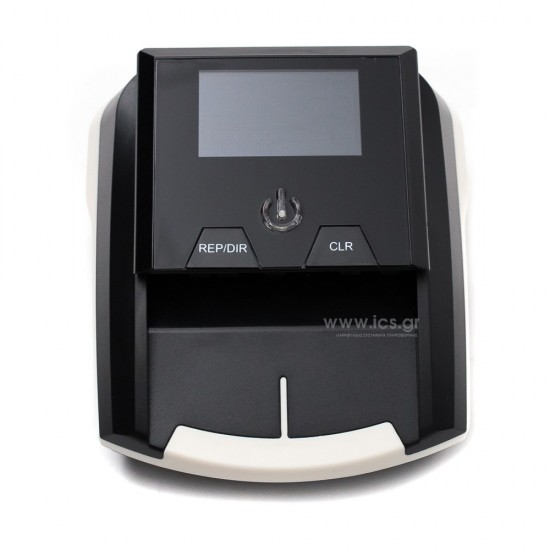

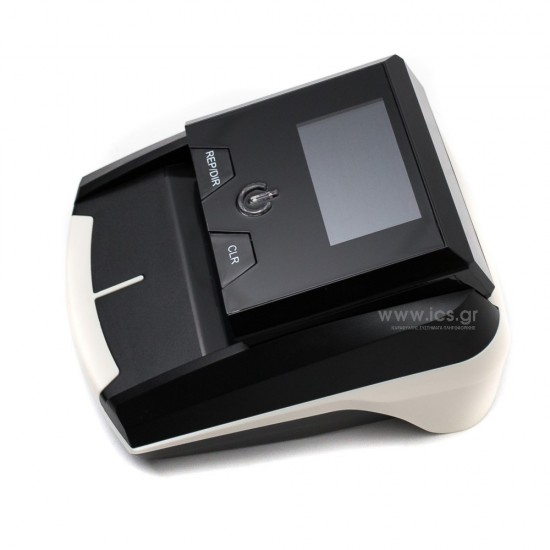

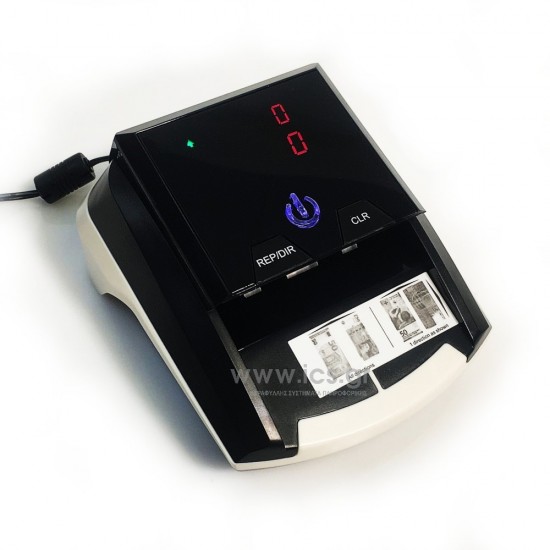

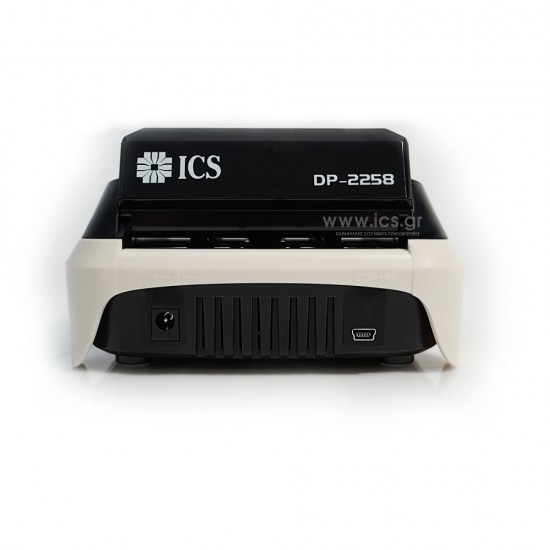

Money Detector DP-2258

Reliable single currency authentication detector, with LCD display, high precision with a composite check on the authenticity of banknotes. Paper quality control via ultraviolet UV lamp, authenticity check with MG detector. Metal strip authentication with MT detector, new technology that controls the conductivity of the metal film. Infrared IR IR detector test, automatically recognizes currency and value. Lithium battery (optional) for portable use. Upgrading software via USB cable and Micro SD card. Easy sensor cleaning.

ICS

Specifications

Banknote detectors
Detection technology	ICD (Intelligent Code Detection) to search for a code hidden inside the security thread/ Authenticity check with MG detector/ Metal strip authentication with MT detector, new technology that controls the conductivity of the metal film/ Infrared IR IR detector test.
Banknote detection	Euro (Standard) + 1 (Optional)
Speed	< 0.5 second/sheet
Interface	mini USB
Upgrade	PC/ micro SD
Power	110~230V/ 50-60Hz
Power Consumption	< 10W
Operating Temperature	0-40°C
Storage Temperature	20-65°C
Dimensions of detector	155x137x82 (mm)
Additional features of detector	Big LCD display and touch screen control panel to provide human interface. Rechargeable battery inside for portable usage (optional), provide more than 24 hours standby time. Net weight: 0.7kg. CE, REACH & ROHS compliant.
