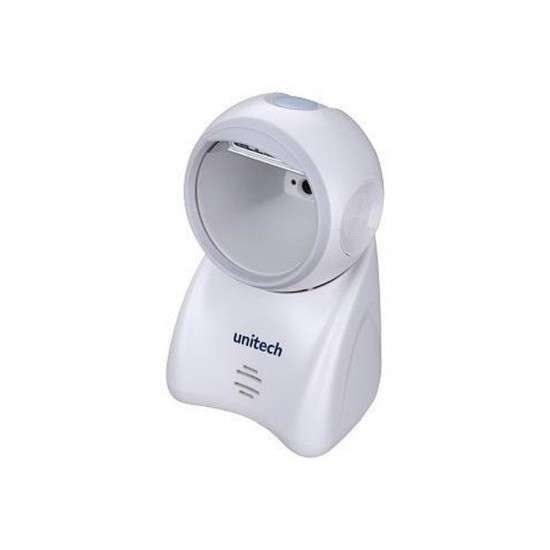

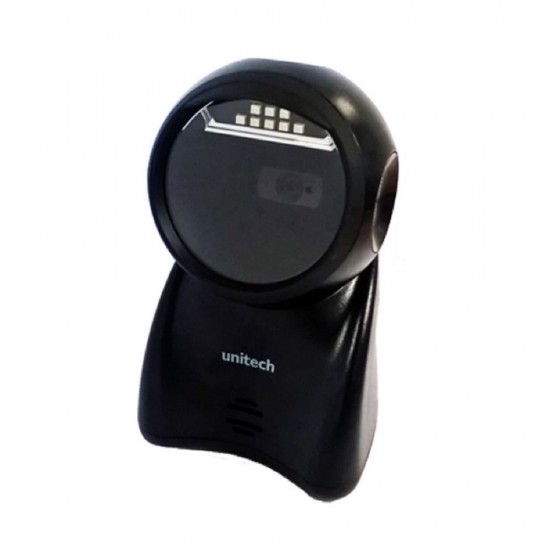

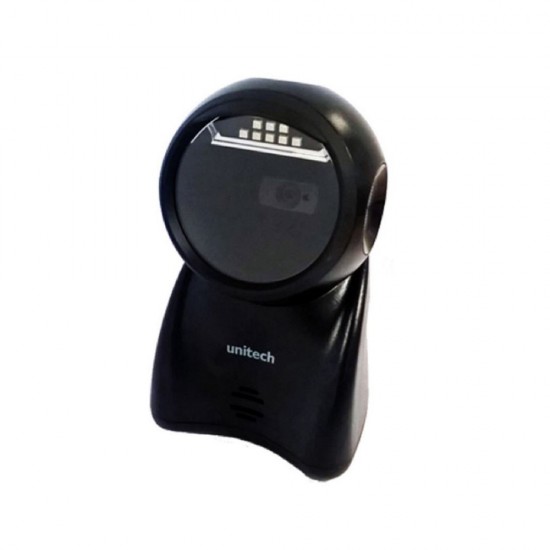

Scanner Unitech PS800

2D High performance on-counter imager. The Unitech PS800 is the ideal on-counter imager for retailers that require high performance in a compact design. Supporting all common 1D and 2D barcodes, the PS800 can be used in a wide variety of markets and applications such as retail, point-of sale, pharmacy, hospitality at affordable price! The ideal solution for retail, point-of-sale, pharmacy, hospitality applications: Point-of-Sale, Loyalty Card, Mobile Coupon, Administration / information service, Check-in / Check-out, Personal identification, Document tracking.


Reading mode 2D imager
Scanning range/ Βάθος πεδίου 5 mil Code 39 (3B): 10 – 60 mm/ 10 mil Code 39 (3B): 0 – 160 mm/ 13 mil UPC (6B): 0 – 170 mm/ 20 mil Code39 (1B): 0 – 255 mm/ 6.7 mil PDF417 (20B): 5 – 70mm/ 10 mil QR (20B): 0 – 95mm/ 20 mil QR (20B): 0 – 220 mm
Scanning range/ Width of Field Horizontal 64°/ Vertiacal 44°
Resolution 1280 x 800 pixels
Interfaces RS-232, USB Keyboard, USB virtual COM, RJ-45 phone jack connector
Dimensions 93 mm × 95 mm × 157 mm
Weight 287 g
Ambient light 100.000 LUX
Sealing IP50
Symbologies 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved, 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 USD-8), MSI/Plessey, UK/ Plessey, China Post, China Finance, GS1 Data Bar (formerly RSS) variants. 2D: PDF417, QR Code, DataMatrix, Stacked GS1 Databar, Micro QR code, Chinese Hanxin Code, Aztec, MicroPDF417* = Update specific firmware required to support it.
Additional features Operation Voltage 5 DC ± 0.25 V/ Power: Working: 255 mA/ Standby: 110 mA/ Operating Temperature -20°C to 55°C/ Storage Temperature -20°C to 75°C/ Relative Humidity 5% to 95% non-condensing./ 5 Years scanner head only* 1 Year USB cable
