FDL Inox and FDL Painted Floor Scale with indicator selection

FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection
FDL Inox and FDL Painted Floor Scale with indicator selection

Downloads

File Size Download
ΠΛΑΤΦΟΡΜΕΣ.pdf 555.32KB Download

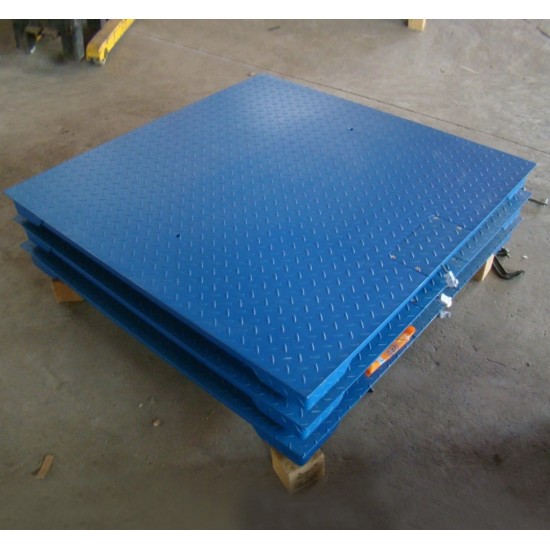

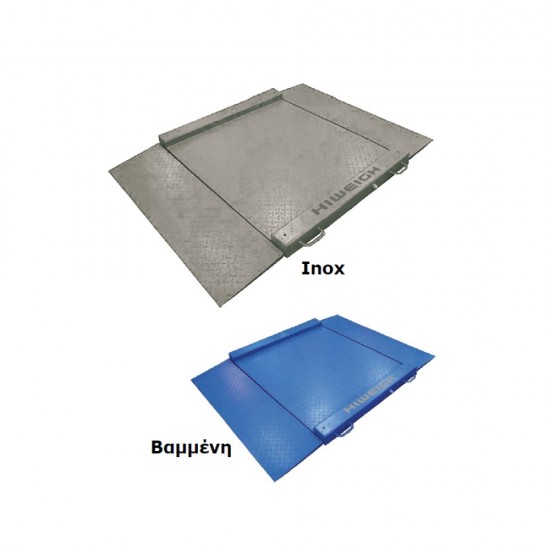

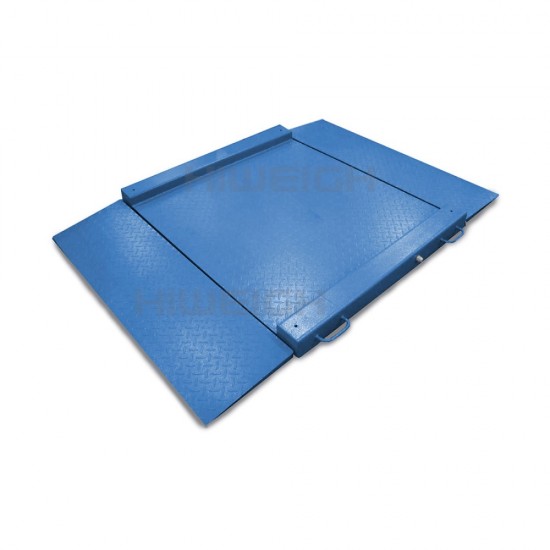

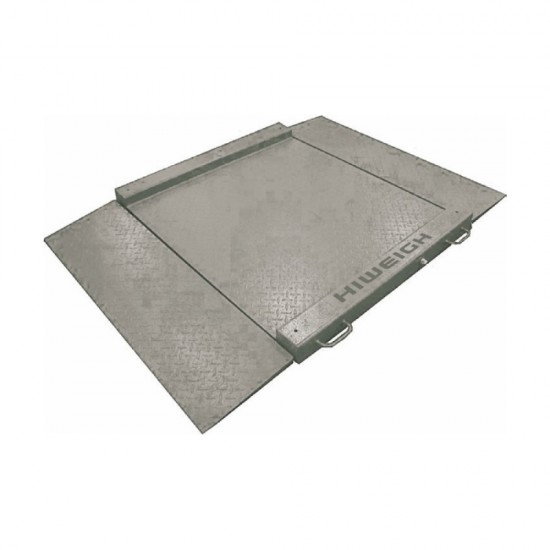

FDL Inox and FDL Painted Floor Scale

Low profile platform with checked plate. Double ramps of 300mm length. With handles for easy movemen.t 5m indicator cable with 5-pin connector -optional wireless connection. Capacity up to 3000kg. Plastic powder coated finish. M28/H8C Load Cell. IP67 protection, with alloy steel feet. Models1 with standard M28 load cells. Models2 with OIML/NTEP approved H8C load cells. Optional X3A Indicator. ABS housing. Stainless steel bracket. Rechargeable battery. Programming zero tracking. Selectable Kg/lb units. Counting function. Animal weighing. Hold function. Power saving mode. Accumulation. RS232 interface.


Specifications

Scales
Display Depending on the head: X3AC–1 ”FSTN LCD/X3AM–1” LCD
Capacity 1500kg/3000kg
Power supply Scale 100-240V – 12V adaptor
Battery Battery:6V2.8Ah. Battery life: 24 hours
Interface- Scale RS232
Dimensions /weight Plaform Sizes: 1000x1000mm/ 1200x1200mm/ 1500x 1500mm
Additional features-Scales IP67, Operating Temperature -10 – 40°C, Approvals: M28–OIML,H8C–OIML,NTEP. Indicator & Approval X3AC–CE/ X3AM–OIML/EC Type
