SKORPIO x 4 Mobile Computer

SKORPIO x 4 Mobile Computer

Downloads

File	Size	Download
product_description_-_skorpio_x4_introduction.pdf	510.71KB	Download

Description
Video

Mobile Computer DataLogic SKORPIOX4

The Skorpio™ X4 mobile computer features a high performance architecture that offers blazing speed for legacy applications while providing an easy migration path to Android™. Large high visibility color display with touch screen. Choice of 1D or 2D imagers featuring Datalogic’s patented ‘Green Spot’ technology for good-read feedback. Wide Band Audio for improved speech recognition (Android™ only). Choice of Microsoft Windows Embedded Compact 7 or Android v4.4 operating systems. TI 802.11 a/b/g/n radio with CCX v4 and featuring MIMO antenna technology. Bluetooth wireless technology v4.0 with BLE (low energy) on Android models. 1.8 m / 6.0 ft drop resistance. IP64 protection class. WEC7 units include: Wavelink® Avalanche™ pre-installed and pre-licensed. Wavelink TelnetCE pre-installed and prelicensed on Pistol Grip units. Pal™ pre-installed. Upgradable to Android 4.4. Attachable handle (and orderable pre-installed). EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.

DATALOGIC

Specifications

Mobile Terminals
Monitor pda	TFT / Transflective LCD with 240 x 320 pixel resolution; LED backlight and integrated touch screen, 3.2 inch diagonal
Operation System	Microsoft Windows Embedded Compact 7 (WEC7) or Android v4.4*
CPU pda	Microprocessor TI OMAP4 @ 1 GHz/ Expansion Slots Micro Secure Digital slot (SDHC) up to 32 GB
Memory pda	RAM Memory: 1 GB/ Flash Memory: 8 GB (partially used for firmware and reserved data
Communication	Local Area Network (WLAN): TI Wi-Link 8, IEEE 802.11a/b/g/n; Frequency Range: Country dependent, typically 2.4 and 5 GHz; Cisco Compatible CCX v4 Security/ Personal Area Network (WPAN): Bluetooth v4 with BLE (Android models); Bluetooth v2.1 + EDR (WEC7 models)
Interface-Ports	Main connector with USB 2.0 High Speed Host (480 Mbps) and Client, RS-232 up to 115.2 Kbps; microUSB port for power and communications; Ethernet: via single dock (external module) or multislot dock
Barcode scanner	Decoding Capacity: 1D / Linear Codes, 2D Codes, Postal Codes, GS1 Composite Codes - Reading Performance: 2D Imager (Standard Range), 2D Imager (DL Focus),1D Imager.
Battery pda	Removable battery pack with rechargeable Li-Ion batteries; MicroUSB for fast battery charging Standard: 3.7V; 3,000 mAh (11.1 Watt-hours); standard on all handheld models Extended: 3.7 V; 5,200 mAh (19.2 Watt-hours); standard on all Pistol Grip models
Keyboard	50-key full alphanumeric, 38-key functional or 28-key numeric keyboard
Sealing	IP64
Resistance	Withstands drops from 1.8 m / 6.0 ft onto concrete/ Temperature Operating: -10 to 50 ºC / 14 to 122 ºF Storage: -20 to 70 ºC / -4 to 158 ºF
Dimensions/ Weight pda	Handheld: 19.3 x 7.6 x 4.2 cm (6.1 x 3.5 cm at keyboard) / 7.6 x 3.0 x 1.3 in (2.4 x 1.4 in at keyboard) Pistol Grip: 19.3 x 7.6 x 15.6 cm / 7.6 x 3.0 x 6.2 in/ Weight: Handheld (with standard battery): 388 g / 13.7 oz, Handheld (with hi-cap battery): 422 g / 14.9 oz, Pistol Grip (with standard battery): 482 g / 17.0 oz Pistol Grip (with hi-cap battery): 516 g / 18.2 oz

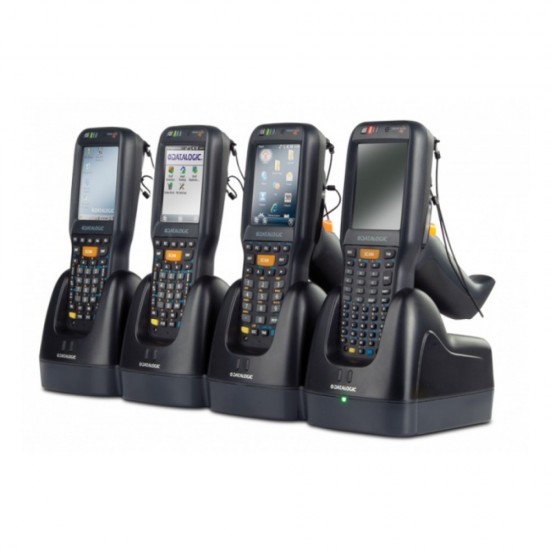

Accessories	Base Stations/Chargers: Single Slot Dock with Spare Battery Slot, Optional Ethernet Adaptor for Single Slot Dock, Four Slot Ethernet Dock, Multi Battery Charger/ Cases/Holsters: Holster, Rubber Boot/ Miscellaneous: Headset VXI VR12, Bluetooth Headset: BlueParrott B350-XT VXI EU, Bluetooth Headset: BlueParrott B350-XT VXI US
