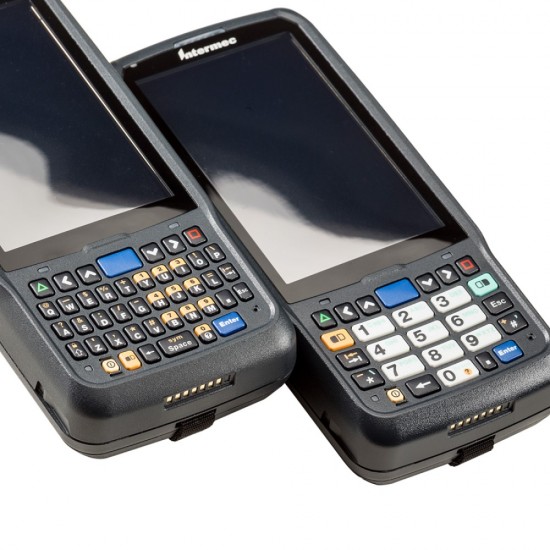

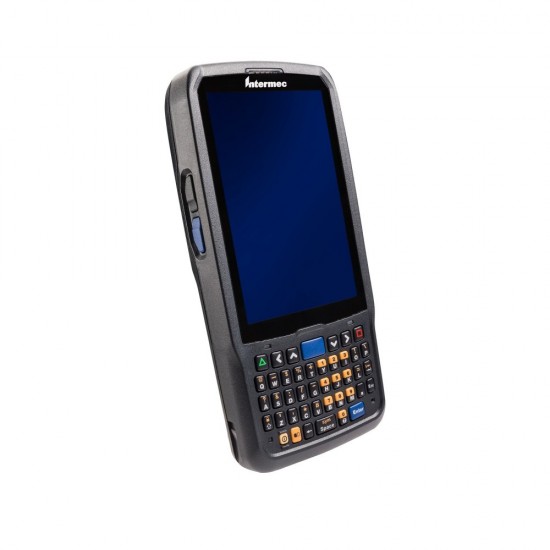

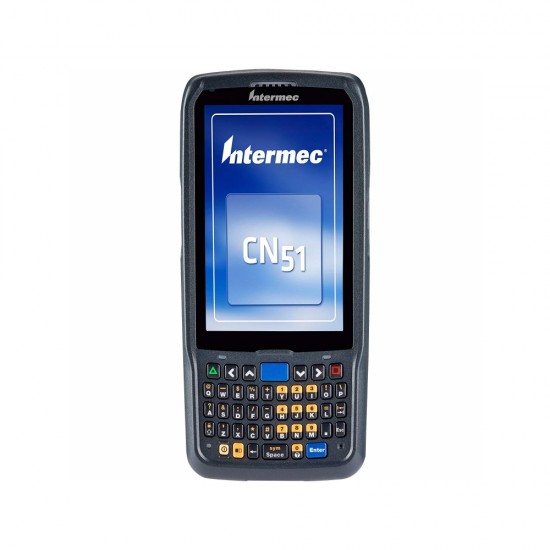

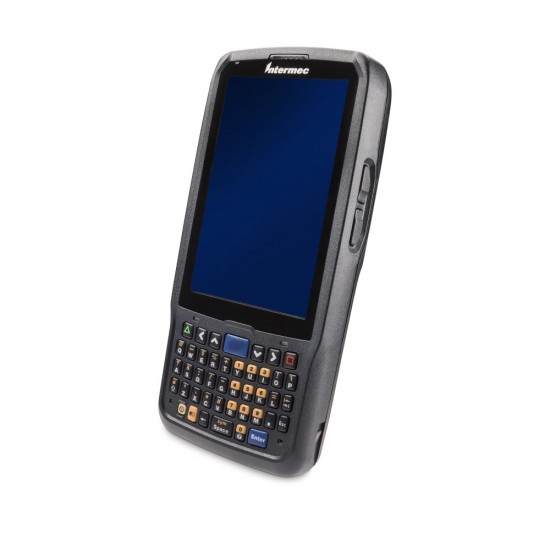

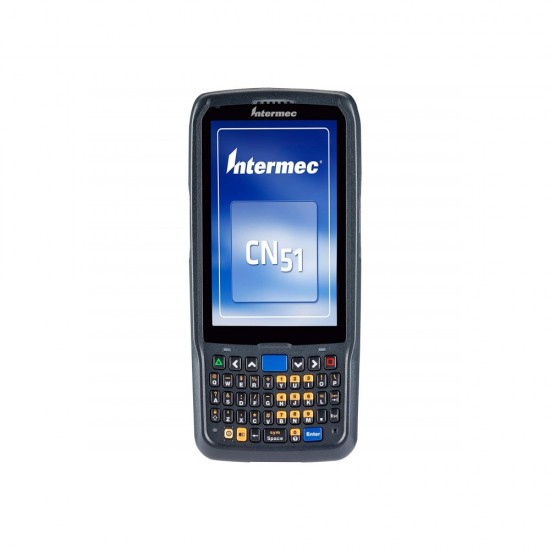

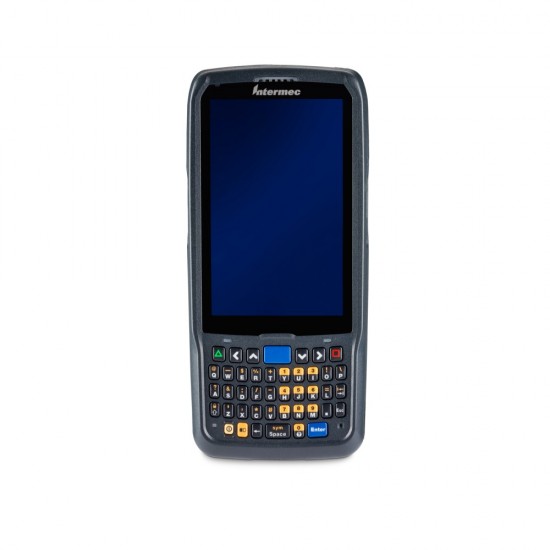

CN51 Handheld Computer

CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer
CN51 Handheld Computer

Downloads

File Size Download
cn51-handheld-computer-data-sheet-en.pdf 259.03KB Download

Description

Handheld Computer Honeywell CN51

High-performance imager provides quick, accurate barcode scanning even in low light. Unmatched motion tolerance eliminates costly delays and user frustration during scan-intensive applications. 5-megapixel color camera and our cutting-edge image processing technologies deliver advanced capability beyond reading barcodes. Mobile Document Imaging (MDI) and Remote Deposit Capture (RDC) provide a fast and reliable way to convert full-size paper documents or check payments into electronic files. Transmit files directly from the point of capture to the back-office workflow. CloneNGo device provisioning makes it easy to replicate a master configuration across an unlimited number of devices to get up and running quickly. Honeywell SmartSystems™ Foundation monitors key subsystems to prevent issues before they impact operations.

Specifications

Mobile Terminals
Monitor pda 101.6 mm (4.0 in), 480 x 800 pixel (WVGA) TFT-LCD display.LCD supports 24 bpp color depth. LED backlight. Ambient light sensor. Resistive multi-touch touch panel.
Operation System Microsoft Windows Embedded Handheld 6.5 or Android 6.0 Marshmallow with GMS
CPU pda Texas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture
Memory pda Memory: 1 GB RAM. ROM: 16 GB Flash customer-accessible microSD slot for removable memory cards up to 32 GB
Communication Wireless WAN Options: UMTS/HSPA+ (Voice and Data): Worldwide except Americas, Australia and New Zealand UMTS/HSPA Frequencies: 900, 2100 MHz Max Speeds (Network Dependent): Uplink – 5.76 Mbps; Downlink – 14.4 Mbps GSM/GPRS/EDGE Frequencies: 900, 1800 MHz Max Speeds (Network Dependent): Uplink – 384 Kbps; Downlink – 384 Kbps Flexible Network (Voice and Data): Americas, Australia and New Zealand (can be switched between the UMTS and CDMA radio networks) UMTS/ HSPA+UMTS Frequencies: 800, 850, 900, 1900, 2100 MHz GSM/GPRS/EDGE Frequencies: 850, 900, 1800, 1900 MHz Max Speeds (Network Dependent): Uplink – 5.76 Mbps; Downlink – 14.4 Mbps CDMA/EV-DO Rev A/ Dual-Band CDMA2000 Bands: BC0 and BC1 (800/1900 MHz) Max Speeds (Network Dependent): Uplink – 1.8 Mbps; Downlink – 3.1 Mbps Wireless LAN: IEEE® 802.11 a/b/g/n on devices without Wireless WAN radio; IEEE 802.11 b/g/n on cellular devices Security: Wi-Fi Certified for WPA and WPA2, WAPI Certified Authentication: 802.1x Cisco® Compatibility: CCXv4 Encryption: WEP (64- or 128-bit), AES, TKIP Wireless PAN: Integrated Bluetooth Power Class 1.5 Version 4
Interface-Ports USB – High Speed 2.0 Host, USB – High Speed 2.0 Client
Barcode scanner EA30 High-Performance Motion-Tolerant 2D Imager: (up to 500 in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils. Refer to User’s Manual for depth-of-field performance. EA31 High-Performance Motion-Tolerant 2D Imager: (up to 400 in/s) white LED illumination. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils. Refer to User’s Manual for depth-of-field performance.
Battery pda Smart Battery Pack: 3.7V, 3920mAh; batteries are IEEE 1725 compliant, Li-Ion, removable, rechargeable
Keyboard 27-key numeric or 43-key QWERTY with backlit keypad
Sealing IP64
Resistance 26 drops from 1.5 m (5 ft) to concrete across the operating temperature range per MIL-STD 810G/ Operating Temperature: -10°C to +50°C (+14°F to +122°F)/ Storage Temperature: -20°C to +70°C (-4°F to +158°F)/ Charging Temperature: +5°C to +35°C (+41°F to +95°F)/ Relative Humidity: Non-condensing, 95%
Dimensions/ Weight pda 164 mm x 74 mm x 28 mm (base of unit) or 32 mm (top of unit) (6.45 in x 2.93 in x 1.09 in or 1.26 in)/ Weight with Battery: 350 g (12.3 oz)
Accessories Supports all CN50 charging and docking accessories as well as FlexDock modular docking system, vehicle dock, vehicle holder, snap-on adaptors, removable scan handle, DEX adapter and magnetic stripe reader.
Additional features mobile terminals 5-megapixel auto focus color camera with LED flash/ Supports VoIP / speech recognition / push-to-talk applications; speaker and front panel microphone for handset audio communication and audio recording; wireless Bluetooth headset support.
