Description

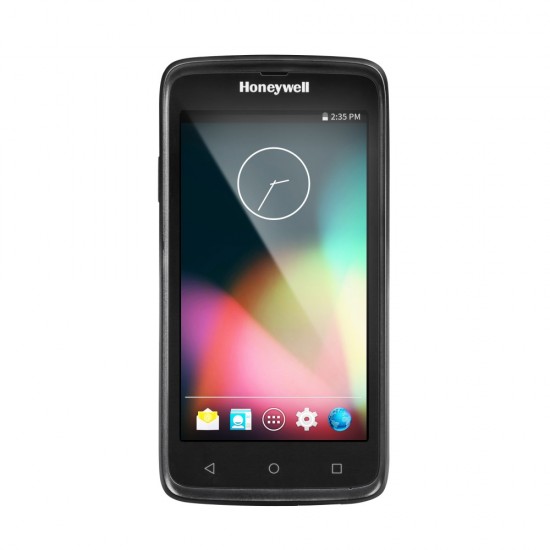

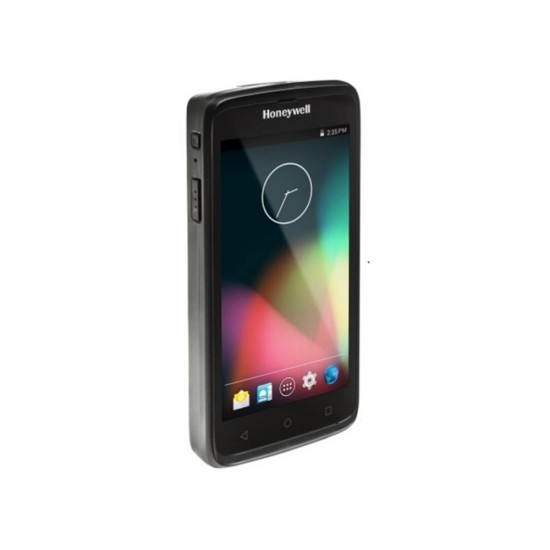

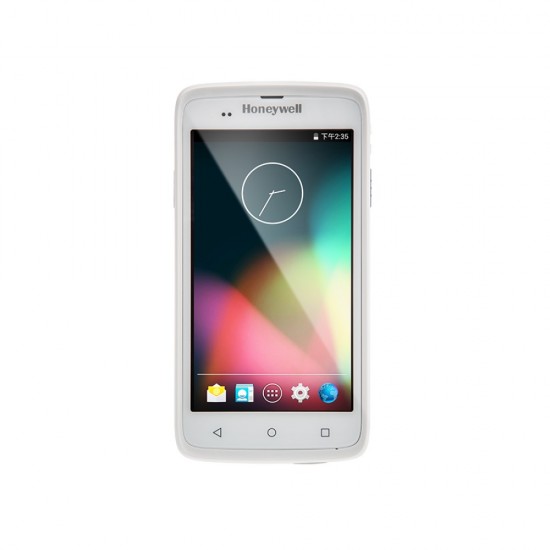

Mobile Computer Honeywell EDA50

The ScanPal EDA50 enterprise hybrid device combines reliability and usability to provide mobile workers real-time visibility to business-critical information. Powerful Platform. An industry-leading Qualcomm® Snapdragon™ 410 processor with 1.2 GHz quad-core CPU enables fast access to business-critical applications. Large Touchscreen Display. Large, 12.7 cm (5 in) Corning Gorilla® capacitive touchscreen is readable both indoors and outdoors, and works when used with wet hands. Lightweight, Ergonomic Design. Lightweight design offering the user the perfect combination of durability, comfort, convenience and portability. Small enough to fit conveniently into a pocket. Long Battery Life. Featuring smart battery technology, the ScanPal EDA50 device can power through a full shift and beyond. Multiple-Device Connectivity ScanPal EDA50 devices can be easily connected to multiple devices, enabling support for more use cases and applications. VoIP Support. The ScanPal EDA50 device supports Voice over Internet Protocol (VoIP) over a wireless network, saving on cellular contract costs.

Specifications

Mobile Terminals
Monitor pda 12.7 cm (5.0 in), Resolution: 1280 × 720 High Definition Backlight: LED, Multi-touch capacitive.
Operation System Android 4.4.4
CPU pda Qualcomm Snapdragon 410 MSM8916, 1.2 GHz quad-core
Memory pda 2 GB RAM, 8 GB Flash/ Storage Expansion: MicroSDHC (up to 32 GB)
Communication WWAN: GSM & EDGE: Band 3/Band 8; WCDMA: Band 1/Band 8; Non-GCF Certified/ WLAN: EEE 802.11 a/b/g/n radio/ NFC/ Bluetooth® Class 4.0/ GPS Supported Protocols: GNSS Receiver for GPS,GLONASS and Compass(Beidou).
Barcode scanner HI2D Imager
Battery pda Li-Ion, 3.8V, 4000mAh/ Button Batteries: 22mF super cap/ Battery Runtime: 12 hours/ Charging Time: 4 hours.
Keyboard Hard Keys: Volume up/down key, left/right scan, power, reset/ Soft keys: Three touch keys (Back, Home, Menu).
Sealing IP54
Resistance Multiple 1.2 m (4 ft) drops to concrete under room temperature/ Operating Temperature: -10°C to +50°C (+14°F to +122°F)/ Storage Temperature: -20°C to +60°C/ (-4°F to +148°F)/ Humidity: 10% to 90% (non-condensing).
Dimensions/ Weight pda Dimension: 153.5 mm x 78.9 mm x 18 mm (6.04 in x 3.11 in x 0.71 in)/ Weight: 270 g (9.52 oz)
Accessories Single Charging Cradle, Hand Strap,Replacement Battery, USB Communication Cable: Micro USB 2.0 (communicates to PC, supports adaptor/ USB charging), USB Wall Adaptor: 5V/2A.
Additional features mobile terminals Vibration: Vertical rms = 1.04 g, Transverse rms = 0.2 g, Longitudinal rms = 0.74 g/ Default Language: Worldwide English/ Real-Time Clock: 10 min backup via super cap/ Scan Notification: Red/Green light/ Radio Co-Location: All radios operate simultaneously/ Camera: 5.0-megapixel color camera with autofocus and LED flash.
