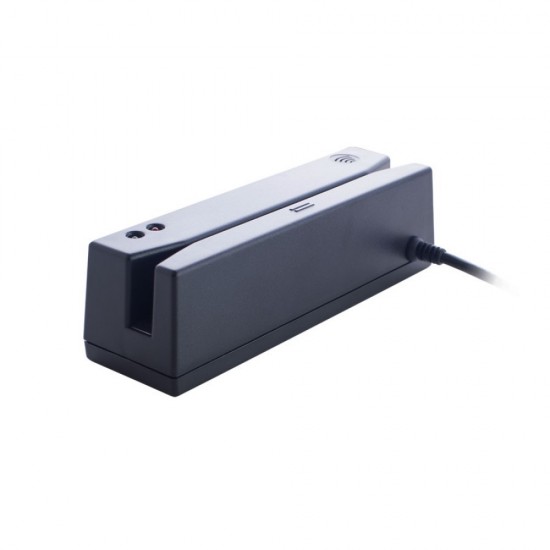

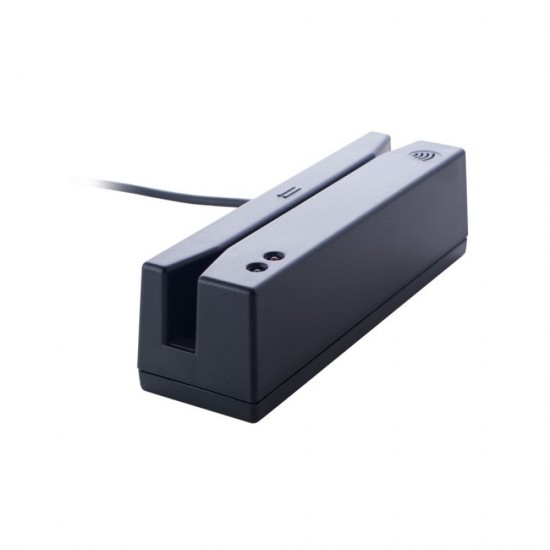

Magnetic Card Reader MR-800

Magnetic Card Reader MR-800
Magnetic Card Reader MR-800
Magnetic Card Reader MR-800
Magnetic Card Reader MR-800
Magnetic Card Reader MR-800

Downloads

File Size Download
mr-800-mr800.pdf 320.46KB Download
Specification-MR800.pdf 369.25KB Download

Description

Magnetic Card Reader MR-800

MR800 Magnetic Stripe Reader provides you with a cost-effective magnetic stripe reader to satisfy the POS industries needs. MR800 is a well designed magnetic stripe reader with badge length 90mm and the data format complies with ISO 7810-7813, JISII standards. Reads magstripe cards with range from 300 to 4000 Oersted. MR800 integrates USB (HID), KB Wedge, RS232 for three interfaces. Reading magnetic stripe card complied with JISII(Option). Magnetic stripe reader with badge length 15cm. Card Reading Speed: 10 to 100 cm/sec. Reading 300 and 4000 Oersted cards. Support beep and LED for each stripe status indicators. Parameter program software for Windows series version. Reading card data on single, dual, or triple track in one swipe. Support 3 in 1 interface that changes interface by replacing cable. Magnetic Head Life 1,000,000 passes.

Specifications

Card Readers
Card Standard ISO 7810-7813, ABA and JIS II
Magnetic Head 1,000,000 pass
Reader Interface TTL/RS232/KB/USB
Reader Rate 100~1000 mm per second / 3.9 - 39 inches per second Bi-directional
Magnetic Track Tripe Tracks (1&2&3 Tracks)
Reader Power supply DC +5V ±5%
Reader Operation Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)/ Storage temperature: -20°C to 70°C (-4°F to 158°F)/ Relative Humidity 20% to 95%.
Reader Dimensions 150.2 X 43.0 X 43.3 mm
Reader Weight Body Weight 145 g ( 4.67 oz )/ Cable Weight KBW 67g (2.36 oz)/ USB 50.6g (1.78 oz)/ RS232 70.4g (2.48 oz)
Reader Additional features Magnetic stripe reader with badge length 15cm. / Reading 300 and 4000 Oersted cards. Support beep and LED for each stripe status indicators. Parameter program software for Windows series version. Reading card data on single, dual, or triple track in one swipe. Support 3 in 1 interface that changes interface by replacing cable. Power consumption: Operation 88mA(Max), Stand by 62mA (Max)
