1517L ELO Touch Monitor

Downloads

File	Size	Download
1517l-elo_1517l.pdf	1.03MB	Download
ELO-1517L-DS-19112AES00011.pdf	237.07KB	Download

Description

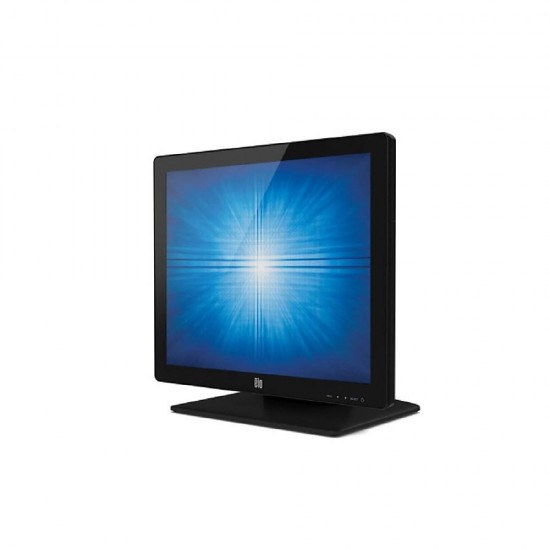

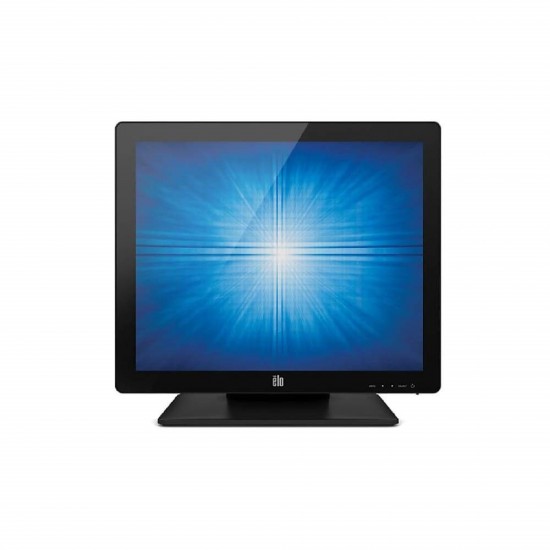

Touch Monitor ELO 1517L

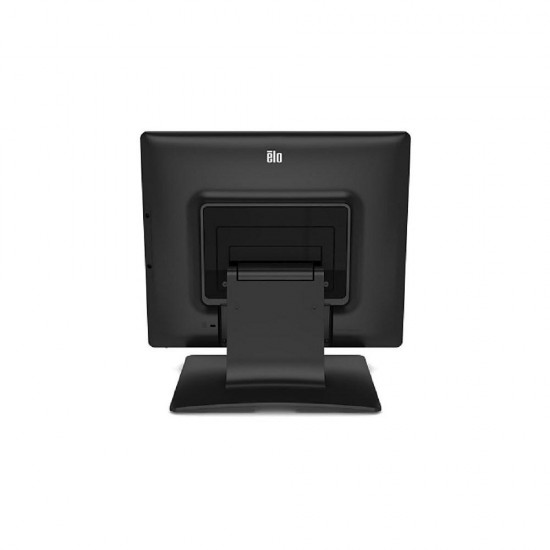

Sleek and thin design with "built for touch" reliability. Flexible and space-saving. 60% Energy savings using LED technology. Zero-bezel touchscreen versions for a smooth, easy-to-clean surface. Antiglare or Clear glass options. Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security. USB and RS232 serial connections.Touch technology: single-touch AccuTouch, IntelliTouch and IntelliTouch Zero-Bezel; 10-touch IntelliTouch Pro projected capacitive. Typical power consumption: 12W, internal and external power options.

ELO

Specifications

Monitors
Monitor specifications	15.0"/ Monitor thickness 1.7 inches/43 mm panel depth/ Colors:16.2 million.
Monitor Technology	Active matrix TFT LCD with LED backlighting
Brightness	LCD panel: 250 nits/ AccuTouch: 200 nits/ IntelliTouch: 225 nits/ IntelliTouch ZB: 225 nits/ IntelliTouch Pro PCAP: 225 nits
Resolution monitor	1024 x 768/ Other supported resolutions: 640x480 @ 60Hz, 75Hz/ 720x400 @ 70Hz/ 800x600 @ 56Hz, 60Hz, 75Hz / 1024x768 @ 60Hz, 75Hz,
Display area	8.98 x 11.97 inches/228 x 304 mm
Aspect Ratio	4:3
Interface	Serial (RS232) and USB
USB Ports	USB

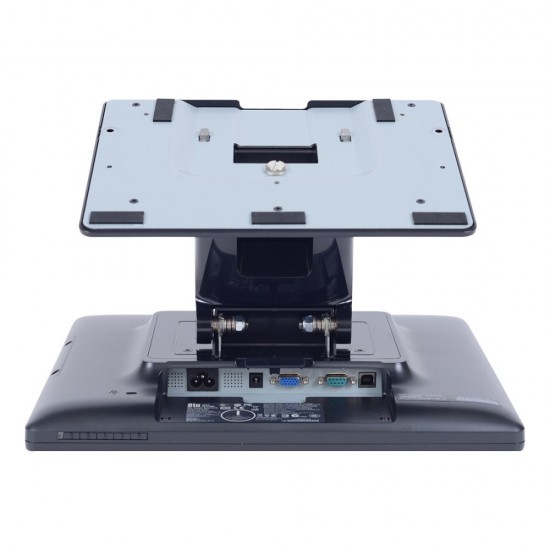

VGA Ports	Video: Analog VGA σε Female DE-15 connector, Input Video Horizontal Sync frequency range: 31.5- 60KHz, Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
Power monitor	Monitor input power connector: – AC: IEC 60320 C6, Monitor input power signal specifications: 100-240VAC, 50/60Hz, Monitor input power connector- DC: Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter), Monitor input power signal specifications: 12VDC ±5%, Note: Optional AC-DC power adapter sold for this monitor, Adapter input connector: IEC 60320 C14, Adapter input voltage range: 100-240VAC, 50/60Hz.
Temperature/ Humidity	Operating: 0 °C to 40 °C /32 °F to 104 °F; Storage: -20 °C to 60 °C /-4 °F to 140 °F/ Humidity (non-condensing) Operating: 20%-80%; Storage: 10%-90%
Dimensions /weight	14.1 x 7.8 x 12.5 inches /358 x 197 x 319 mm/ 16.09 lbs (7.3 kg)
Additional features - Monitor	Response Time (Tr+tf) (Typical): 16 msec/ Viewing Angle (Typical) Horizontal: +/-80° or 160° total Vertical: +/-70° or 140 ° total /Contrast Ratio (Typical):700:1/ On-Screen Display (OSD): Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese Lockouts: OSD, Power/
