DENSO BHT-1261 QWB barcode terminal

DENSO BHT-1261 QWB barcode terminal

Downloads

File	Size	Download
bht-1100-brochure_bht-1100_0.pdf	2.24MB	Download

Description
Video

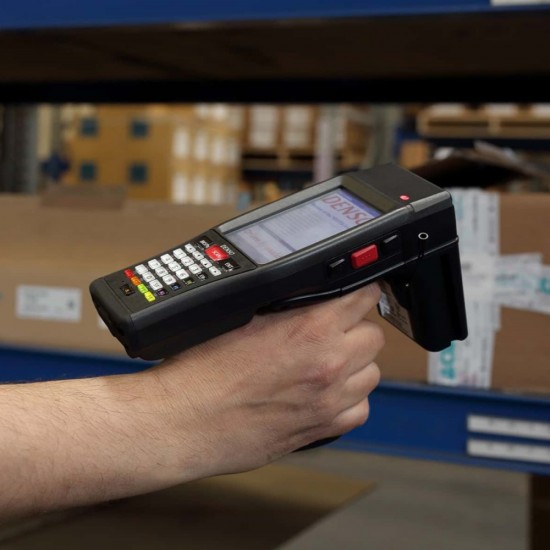

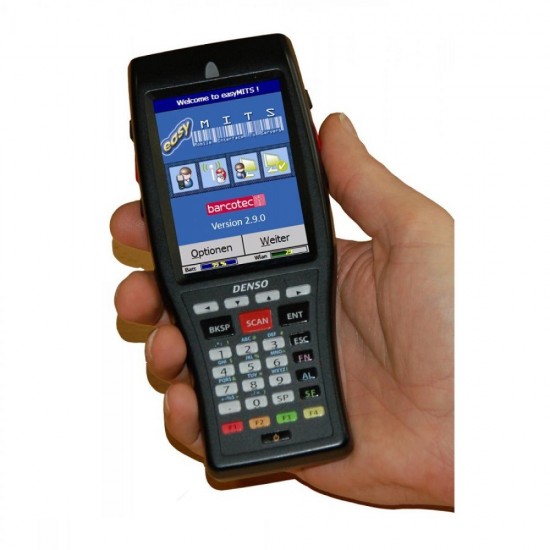

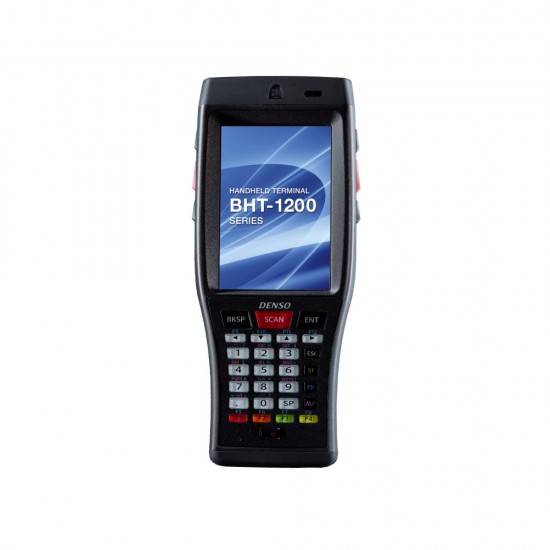

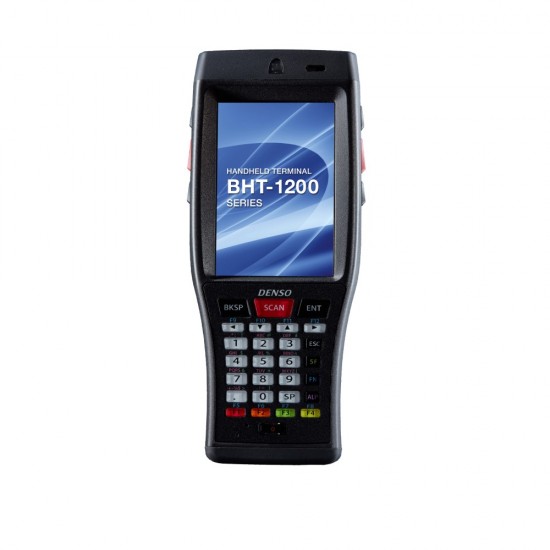

Barcode terminal DENSO BHT-1261 QWB

Industrial PDA that increase business efficiency. Expand functionality. Simple to operate with only one hand, even with just your thumbs. Easy to grip, stable grip, “Professional-standard” long-lasting operation! 12 functional keys, Wireless WAN/GPS. Data can be transmitted smoothly even away from office! High-speed 3G communication supports your field work! Work history can be collected accurately with GPS! Data backup. Denso the inventor of the QR Code® premiers the Denso BHT-1200 barcode terminal series designed with a specially arranged keypad which includes 12 function keys allowing the terminals to be operated one-handed using only your thumb and also featuring a large 3.5 inch HVGA color display lets an operator quickly see large amounts of information at a simple glance. About the size of a smartphone at 57mm wide and with large backlit keys you can operate this in dark areas such as warehouses, trucks and other poorly lit areas. Increase your business proficiency with excellent scanning performance even over long distances and even it decodes complicated codes at 400 scans per second. Sporting a five megapixel camera to capture photos of damaged or defective products while inspecting that also has a convenient auto-focus with built-in flash. The Denso BHT-1200Q-CE 2D Scanner with laser guide pattern is designed for cold storage areas or even in open air during the hot summer and rated IP54 against dust and moisture.

DENSO

Specifications

Mobile Terminals
Monitor pda	3.5 inch HVGA (320 x 480 dots), Liquid crystal dot matrix display (color), White LED.
Operation System	Windows Embedded CE 6.0 R3
CPU pda	ARM Cortex-A8 800MHz
Memory pda	Mobile DDR 512MB/ Flash ROM 2.0GB
Communication	Bluetooth® Ver2.0 + EDR based class 2
Interface-Ports	RS-232C / USB client OTG/ MicroSDHC/MicroSD card (~32GB)×1
Barcode scanner	Area sensor: EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (Add-on embedded), Interleaved 2 of 5, Standard 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)/ 2D code: QR code, micro QR code, SQRC, iQR code, PDF417, micro PDF417, Maxi code, DataMatrix (ECC200), GS1 Composite/ Minimum resolution Bar code: .125mm/ Minimum resolution 2D code: 0.167mm/ Reading reference position 100mm/ Scan ConfirmationLED in two colors: Blue/red, speaker, vibration.
Battery pda	Main battery Lithium-ion battery. Approx. 22 hours duration (when using battery included in delivery) / approx. 33 hours (when using high-capacity battery is used)
Keyboard	30 buttons (other than on/off button) + 3 scan buttons
Sealing	IP54
Resistance	Operating temperature −20~50 °C
Dimensions/ Weight pda	340 gr approx.
Accessories	Real-time clock, speaker, vibration alarm, battery display, keypad illumination, G-sensor, microphone and receiver
Additional features mobile terminals	1D code: EAN-13/-8(JAN-13/-8), UPC-A/-E, UPC/EAN with expansion, Interleaved 2 of 5, CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), GS1 DataBar(RSS). 2D code: QR Code, micro QR Code, SQRC, iQR, PDF417, micro PDF417, maxi code DataMatrix (ECC200), Aztec, GS1 DataBar Composite (EAN.UCC Composite)
