DP-8120 Banknote Counter

Downloads

File	Size	Download
dp-8120-dp_8120.pdf	727.21KB	Download

Description

Banknote Counter DP-8120

1.5 pocket Multi-Currency Mix value sorting counter DP 8120. Sorting, Non-stop counting with reject pocket,

Multiple currency capability, Can transferring the image of the serial number to PC and printing serial number of banknotes. Accurate Serial number recognition, storage and management. A variety of counterfeit identification technology including IR, MG,MT, Image, UV etc. Various mode of counting: Mix/ Sort/ Face/ Orientation/ Image/ PCS

Design of open channel, Easy maintenance and jam removing. Humanized intelligent design, compact size, dual user Design. Easy upgrade: Software could be done by PC, SD card or LAN.

ICS

Specifications

Banknote Counters-Detectors
Detection technology	IR, MG, MT, UV etc.
Banknotes	EUR, USD, GBP, RUB, CNY, BRL, INR and other local currency
Hopper capacity	Hopper Capacity: 500 notes/ Stacker Capacity: 200 notes/ Reject capacity: 10~50notes (optional)
Speed counter	800,1000,1200 notes/min
Power	AC100V~240V 50/60Hz
Power Consumption	<50W

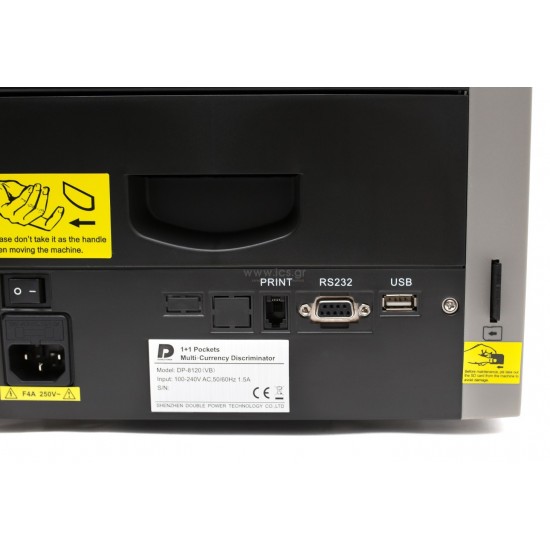

Interface/ Upgrade	RS232, RJ-11, USB, SD card.Easy upgrade: Software could be done by PC, SD card or LAN.
Dimensions banknote counter detector	251(L) × 271(W) × 263(H) mm
Weight	9Kg
Additional features of detector-counter	Counting Note size: Length: 100-185mm, Width: 50-90mm, Thickness: 0.075-0.15mm. Various mode of counting: Mix/ Sort/ Face/ Orientation/ Image/ PCS/ Can transferring the image of the serial number to PC and printing serial number of banknotes. Accurate Serial number recognition, storage and management.
