EC30 Mobile Computer

Name: EC30 Mobile Computer
Brand: ZEBRA
Price: 1.00 EUR
Availability: InStock

EC30 Mobile Computer

Downloads

File	Size	Download
ec30-spec-sheet-en-us.pdf	940.57KB	Download

Description
Video

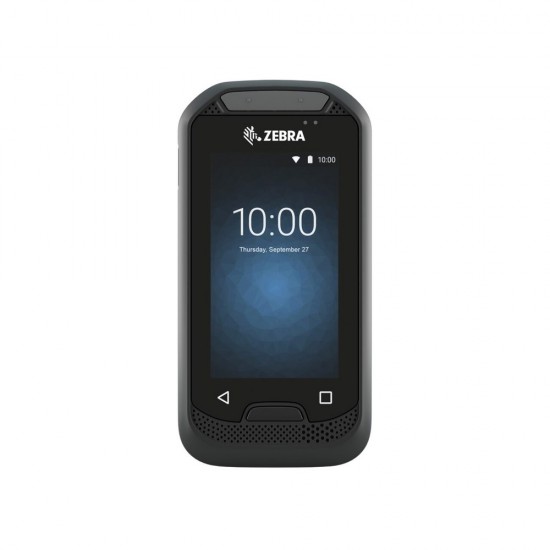

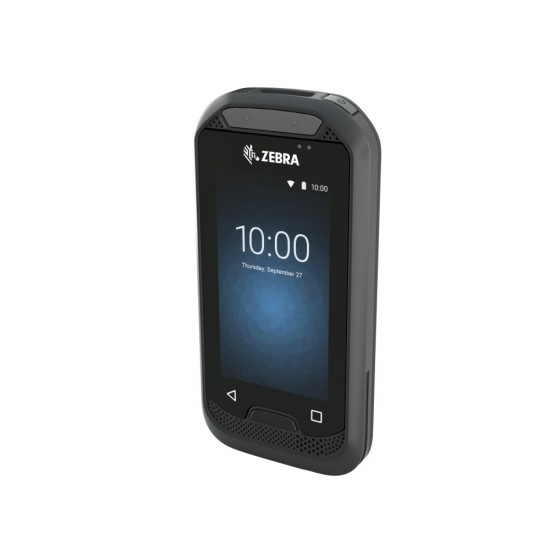

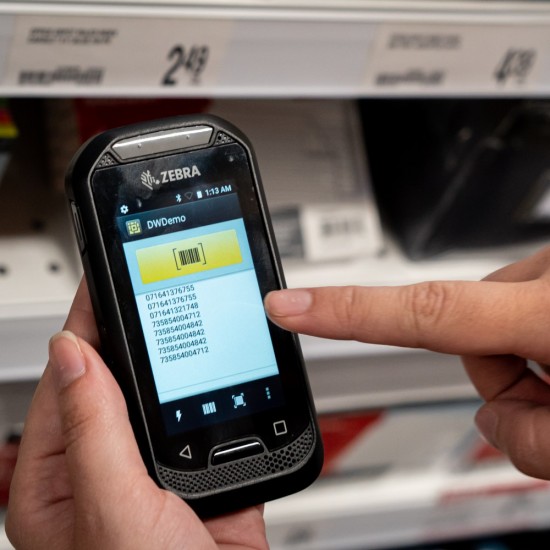

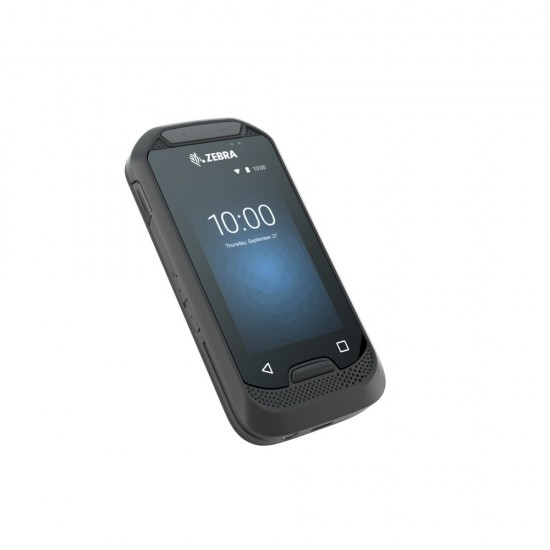

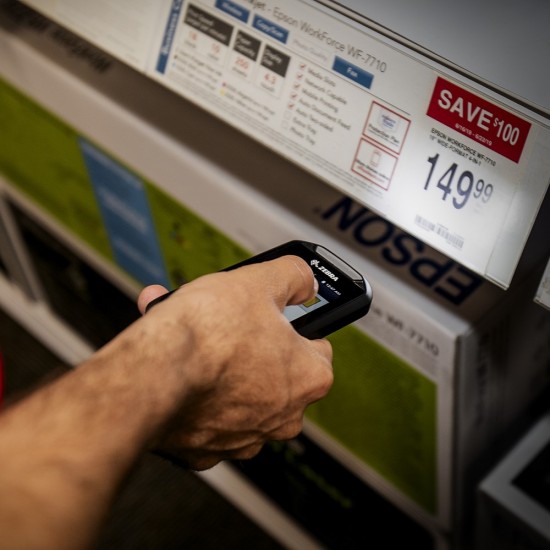

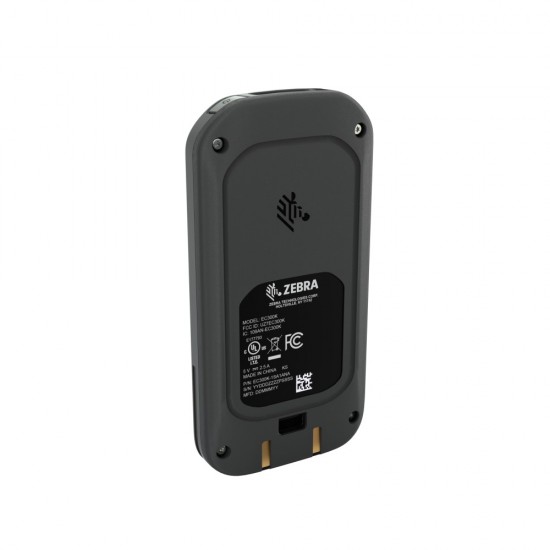

Mobile Computer Zebra EC30

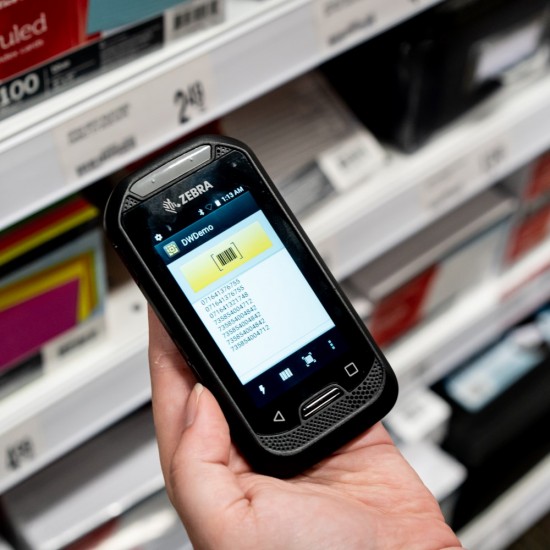

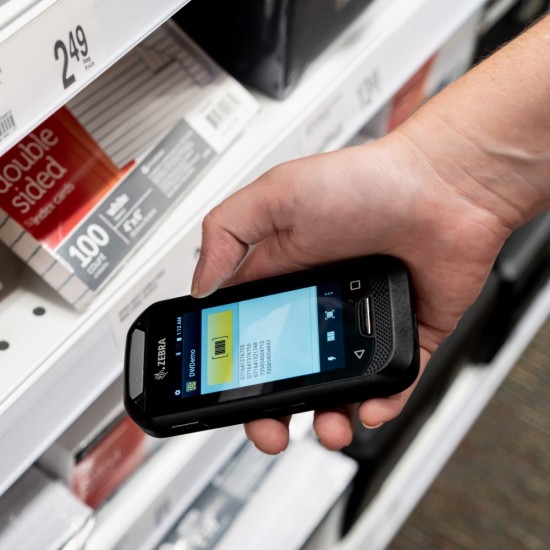

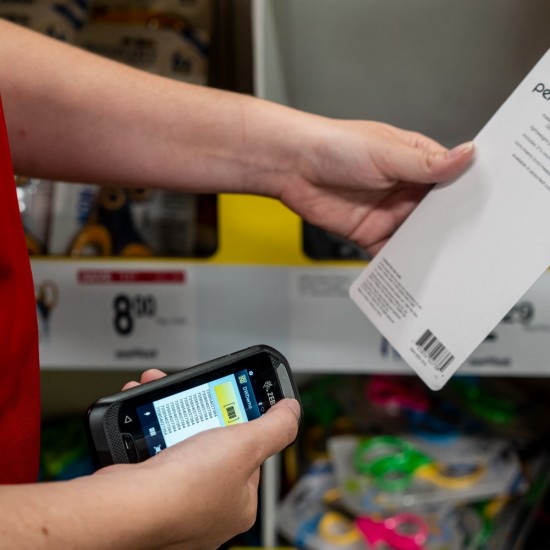

Introducing the EC30, the device with the suitable mobile connections for several applications. The EC30 is specially designed for portability, it’s small, lightweight and durable. Features mobile voice and data, the simple act of locating a supervisor to answer a question or looking up item availability can take minutes, putting service quality and sales at risk. 1D/2D imager barcode scanning, display of 3-inch color screen. Operating system Android 8.1 Oreo, CPU Qualcomm Snapdragon TM 660 octa-core 2.2 GHz, Bluetooth 5.0 with Bluetooth Low Energy (BLE).

ZEBRA

Specifications

Mobile Terminals
Monitor pda	3 in. color display FWVGA (854 x 480) IPS Transmissive TFT LCD. Touch Panel Capacitive touch with dual-touch operation (finger and glove)
Operation System	Android 8.1 Oreo
CPU pda	Qualcomm Snapdragon 660 octa-core 2.2 GHz
Memory pda	4GB LPDDR4 SDRAM Discrete / 32GB MLC eMMC Flash
Communication	Bluetooth 5.0 with Bluetooth Low Energy (BLE)
Interface-Ports	USB C (USB 2.0) and charge-only contacts data transfer/ charging
Barcode scanner	1D/2D Imager (SE2100)
Battery pda	Standard capacity, 1200mAh rechargeable Li-Ion, PowerPrecision+ battery (embedded)
Keyboard	Scan/ power/push-to-talk (PTT)/ volume/ home (physical)/recent apps/back (capacitive)
Sealing	IP54
Resistance	Multiple 4 ft./1.2 m drop to tile over concrete per MIL-STD 810G at room/ Operating Temperature: 14° F to 122° F / -10° C to 50° C/ Storage Temperature: -40° F to 158° F / -40° C to 70° C. Humidity 5% to 95% non-condensing
Dimensions/ Weight pda	4.5 in. W x 2.2 in. H x 0.55 in. D/ 114 mm W x 57 mm H x 14 mm D/ Weight 3.88 oz./110 g
Additional features mobile terminals	Touch Panel Capacitive touch with dual-touch operation (finger and glove). Electrostatic Discharge (ESD): +/-20 kVDC air discharge; +/-10 k. VDC direct discharge/ +/- 10 kVDC indirect discharge
