F13-PC Mini-Box PC

Downloads

File	Size	Download
f13-pc-brochure_mini_box_pc_f13.pdf	1.13MB	Download

Description

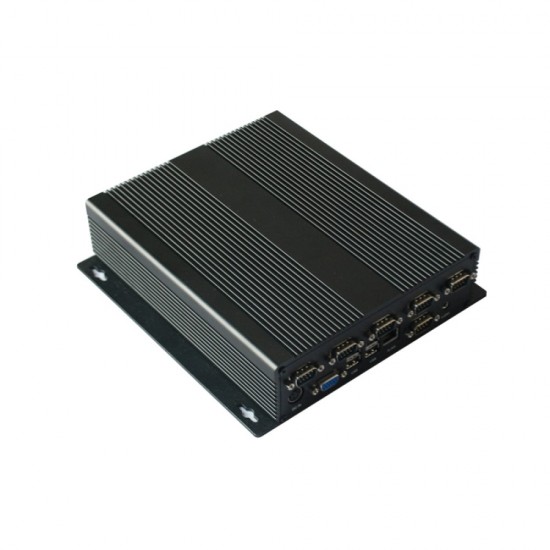

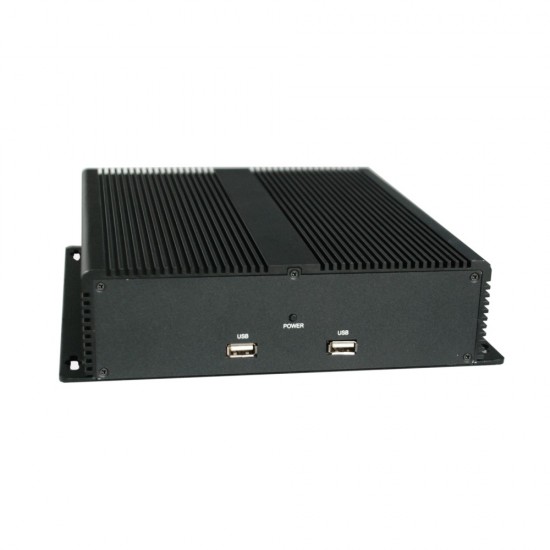

Heavy Duty F13-PC Mini-Box PC

Compact, Intel Dual Core,1.86GHz Cedarview D2550, 2.GB DDR3, ram up to 4GB, 320GB HDD. Smart & Fanless designed, high performance, low power consumption. Equip with 6 USB connectors. Compatible with Windows XP / Vista / 7, POS Ready, Linux operating environment. Modular architecture for easy maintenance access for coverage and design allows easy cable routing and help hiding dangerous and unsightly wires.

ICS

Specifications

PC Box
CPU PC Box	Intel Atom D2550 Cedarview, Dual Core 1.86GHz 4 Matches
Memory	1x SO-DIMM DDR3 2GB (up to 4GB)
HDD	2,5 inch 320GB
Interface	LAN 1 x Realtek RTL8111E - Integrated 10/100/1000 Transceiver
USB Ports	6 x USB
Serial Ports	6 x RS232
Ethernet Ports	1 x RJ45, 1 x Realtek RTL8111E - Integrated 10/100/1000 Transceiver
Additional Ports	1 x DC, 1 x VGA, 1 x audio
Power supply	Adapter 12V / 7.5A
Temperature/ Humidity	Operating temperature:0 ° C to 40 ° C (32 ° F to104 ° F)/ Storage temperature:Humidity (non-condensing) Operating: -20 ° C to 60 ° C (-4 ° F έως 140 ° F)/ Humidity (non-condensing) Operating: 10% -90%/ Humidity (without condensation) Storage: 10% -90%
Dimensions /weight PC Box	220 x 214 x 54,5mm
Additional features PC Box	Compatible with Windows XP / Vista / 7, POS Ready, Linux operating enviornments
