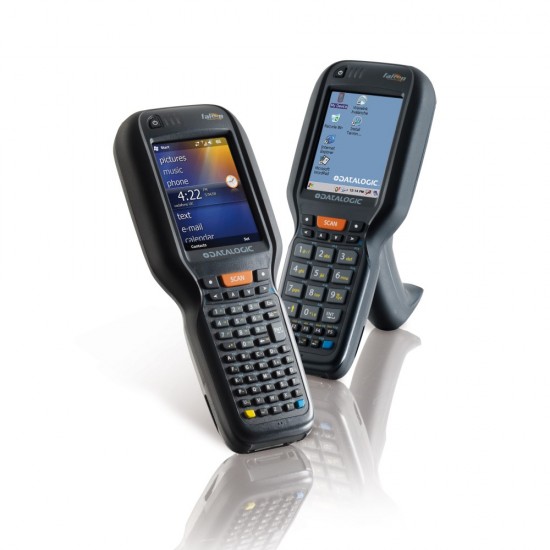

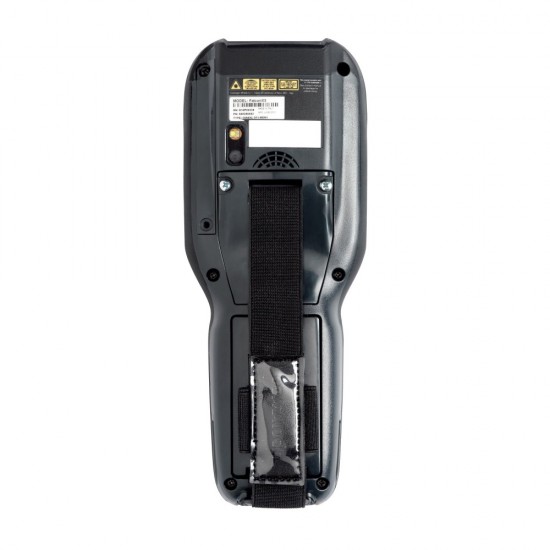

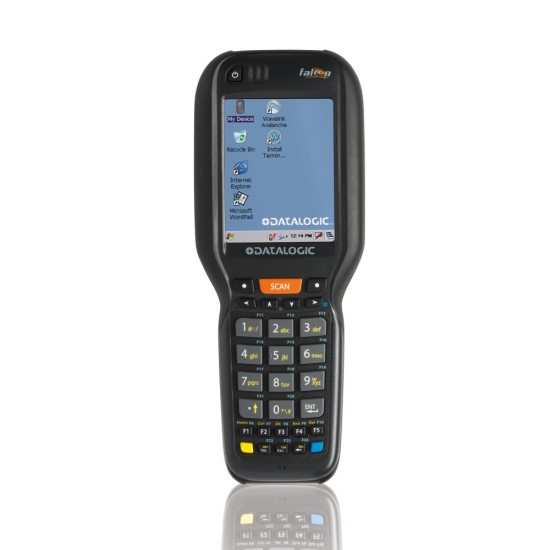

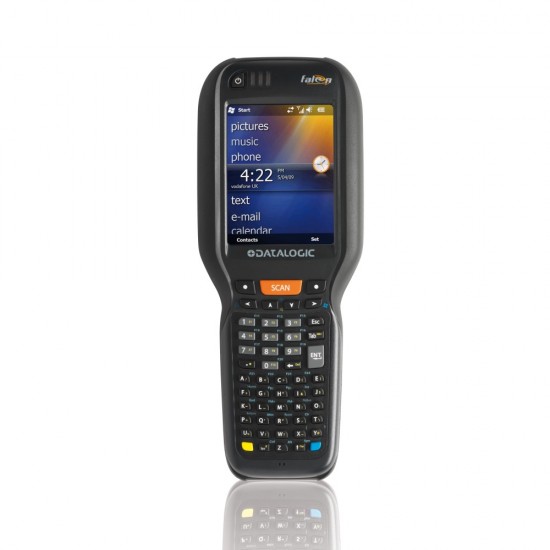

Mobile Computer DataLogic FALCONX3

Rugged ergonomics combine in a fully featured mobile computer to provide the ultimate performance in Warehousing and T&L. Communicate over a Summit 802.11 a/b/g radio with CCX v4 certification for security and seamless roaming or through wired standards including USB, RS-232, modem and Ethernet. Parallel computer architecture combines a PXA 310 and Cortex-M3 processors with a base memory package of 256 MB RAM / 256 MB Flash and choice of Microsoft Windows operating systems: Windows Mobile or CE. Capture with a high performance laser scanner with Green Spot, an auto ranging laser (XLR) scanner, or a 2D imager with Green Spot combined with a 3 Mega pixel color camera. Ergonomic hand held and pistol grip form factors balance a 3.5 inch display, full keyboards and a one piece 5,000 mAh battery. Functional rubberized plastic enclosures survive daily abuse and trauma from drops to concrete and exposure to water and dust. Users feel the full shift difference of oversized numeric and alphanumeric back lit keyboards, a crystal clear display and an arched pistol grip handle with ergonomic trigger.





Specifications

Mobile Terminals
Monitor pda Transflective TFT daylight readable color display, 240 x 320 pixels, 3.5 in diagonal, 64K colors, 200 nit backlight, touch screen
Operation System Microsoft Windows CE 6.0 with Microsoft WordPad and Internet Explorer 6.0 Windows Embedded Handheld 6.5 with Mobile tools: Outlook Mobile, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile and Internet Explorer Mobile 6.0
CPU pda MICROPROCESSOR: XScale™ PXA310 @ 624 MHz/ COPROCESSOR: Cortex-M3, 32 bit @ 72 MHz
Memory pda MEMORY: System RAM: 256 MB, System Flash: 256 MB/ EXPANSION SLOTS: Micro SD card slot compatible with SDHC cards, user-accessible
Communication WIRELESS COMMUNICATIONS: LOCAL AREA NETWORK (LAN): Summit IEEE 802.11 a/b/g, Frequency range: Country dependent, typically 2.4 GHz and 5.2 GHz; Cisco Compatible CCX v4 Security/ PERSONAL AREA NETWORK (PAN): Bluetooth® Wireless Technology IEEE 802.15 Class 2 with EDR
Interface-Ports Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps/ Ethernet: via single-slot or multi-slot docks (external modules)
Barcode scanner 1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes./ 2D CODES: Aztec Code, Data Matrix, Intelligent Mail, Maxicode, Micro QR Code, QR Code, UPU FICS /POSTAL CODES: Australian Post, Japan Post, KIX Code; PLANET, POSTNET; Royal Mail Code (RM4SCC) STACKED CODES: Micro PDF, PDF417
Battery pda Removable battery pack with rechargeable Li-ion batteries; 3.7 V 5,200 mAh (18.5 Watt hours)
Keyboard Polycarbonate hard cap keyboards with backlight; 29 key numeric or 52 key alpha numeric with discrete navigation
Sealing IP64
Resistance DROP RESISTANCE: Withstands drops from 1.8 m / 6.0 ft onto concrete/ TEMPERATURE Operating: -20 to 50 ºC /-4 to 122 ºF/ Storage: -40 to 70 ºC / -40 to 158 ºF
Dimensions/ Weight pda Handheld: 22.5 x 8.8 x 5.5 cm / 8.9 x 3.5 x 2.2 in; 6.4 x 4.0 cm / 2.5 x 1.6 in at keyboard Pistol grip: 22.5 x 8.8 x 16.8 cm / 8.9 x 3.5 x 6.6 in/ WEIGHT: Handheld: 626.0 g / 22.1 oz Pistol grip: 699.0 g / 24.6 oz
Accessories Base Stations/Chargers: • 94A150057 Single Slot Dock with Spare Battery Slot (Opt. Ethernet or Modem Connection), • 94A150056 Multi-Ethernet Dock, 94A151137 Multi Battery Charger/ Cases/Holsters: • 94ACC0063 Heavy Duty Soft Case
Reading Performance HIGH PERFORMANCE LASER (HPL) Depth of Field: 5 to 40 cm / 2 to 16 in, depending on bar code and density; Scanning Rate: 35 +/- 5 scans/sec.; Minimum Resolution: 0.20 mm / 7.5 mils Good Read Feedback: Datalogic’s patented ‘Green Spot‘ technology LONG-RANGE LASER (XLR) Depth of Field: Non reflective labels, from 5 to 243 cm / 2 to 180 in, depending on bar code density; eflective labels: up to 1,376 cm / 542 in/ Near range determined by degree of reflectivity and width of the bar code. All ranges dependent on bar code size and density; Scanning Rate: 40 +/- 6 scans/sec Minimum Resolution: 0.20 mm / 7.5 mils/ WIDE ASPECT IMAGER: Depth of Field: 5 to 40 cm / 2 to 16 in, depending on bar code size and density; Scanning Rate: up to 60 frames/sec.; Minimum Resolution: Linear codes at 4 mils; 2D codes at 5 mils; Good Read Feedback: Datalogic’s patented ‘Green Spot’ technology. CAMERA: 3 Mega pixel color with autofocus and LED flash (WEHH only); Image Formats: BMP, JPEG.
Software PDA CCONFIGURATION & MAINTENANCE Wavelink Avalanche® MC pre-licensed, Wavelink Avalanche® SE pre-licensed, Avalanche Remote Control™, Datalogic Firmware Utility (DFU), Datalogic/ Desktop Utility, Datalogic Configuration Utility (DCU)/ DEVELOPMENT: Windows SDK™ Datalogic SDK (C/C++, .Net, Java); Wavelink® Studio™; MCL-Collection™; Java Virtual Machine APPLICATIONS Pal Application Library pre-licensed TERMINAL EMULATION Wavelink® Terminal Emulation™ pre-licensed, Wavelink® Industrial Browser™ SECURITY: Wavelink CE Secure; Wavelink Certificate Manager/ VOICE-PICKING: Vo-CE™ Wavelink® SpeakEasy.
Additional features mobile terminals REAL-TIME CLOCK: Time and date stamping under software control/ SAFETY AND REGULATORY AGENCY APPROVALS The product meets necessary safety and regulatory approvals for its intended use. The Users Manual for this product can be referred to for a complete list of certifications. ENVIRONMENTAL COMPLIANCE: Complies to EU RoHS LASER CLASSIFICATION VLD - Class 2 IEC/ EN60825-10. Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice Number 50, dated June 24, 2007 LED CLASSIFICATION: Exempt Risk Group IEC/EN62471
