Granit 1991iSR Industrial Scanner

Name: Granit 1991iSR Industrial Scanner
Brand: HONEYWELL
Price: 1.00 EUR
Availability: InStock

Granit 1991iSR Industrial Scanner

Downloads

File	Size	Download
sps-ppr-granit-xp-1991isr-scanner-data-sheet-en-a4.pdf	308.74KB	Download
granit-xp-scanner-accessories-guide-en-a4.pdf	422.88KB	Download

Description
Video

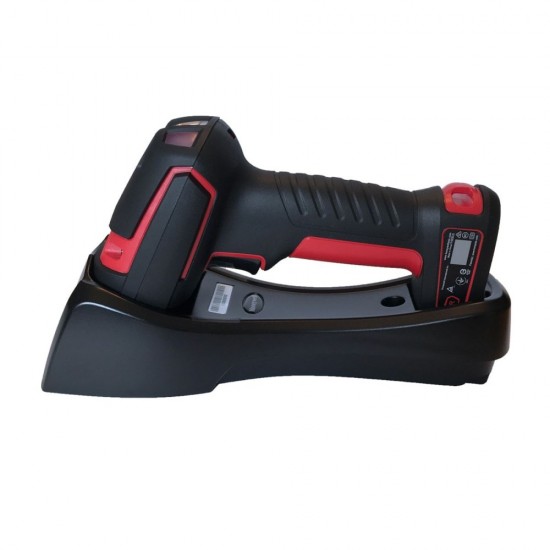

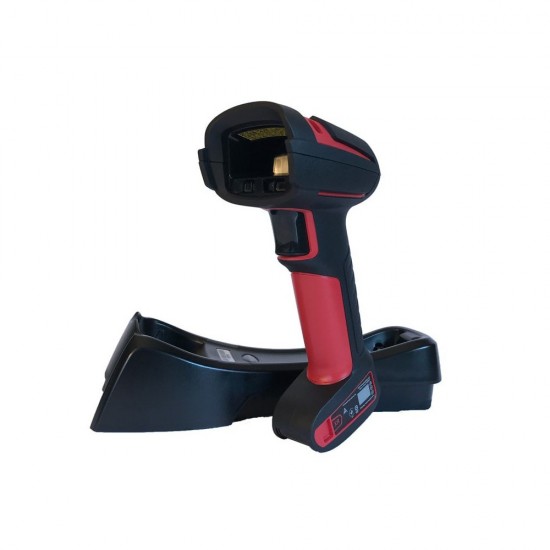

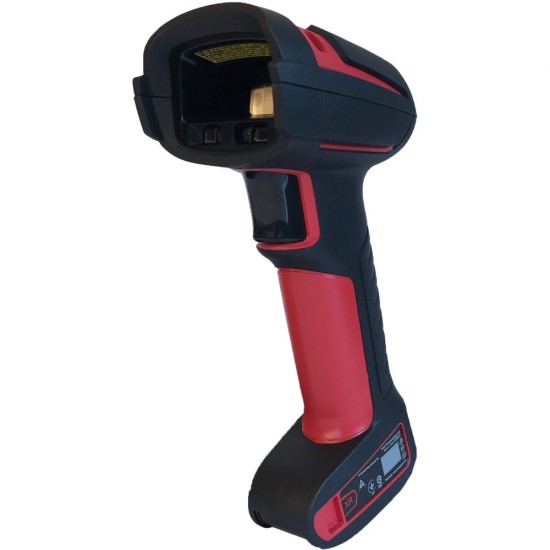

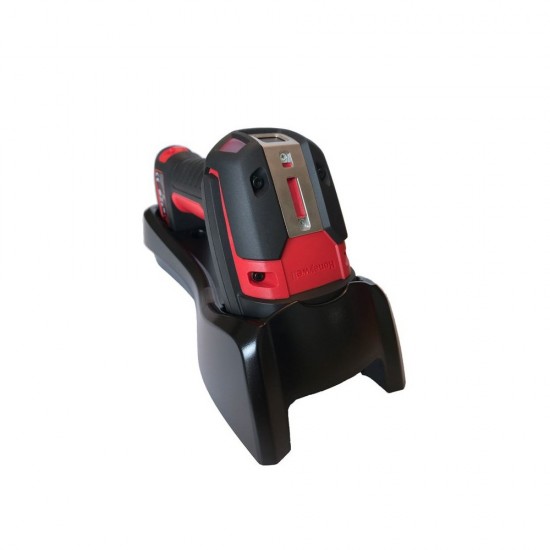

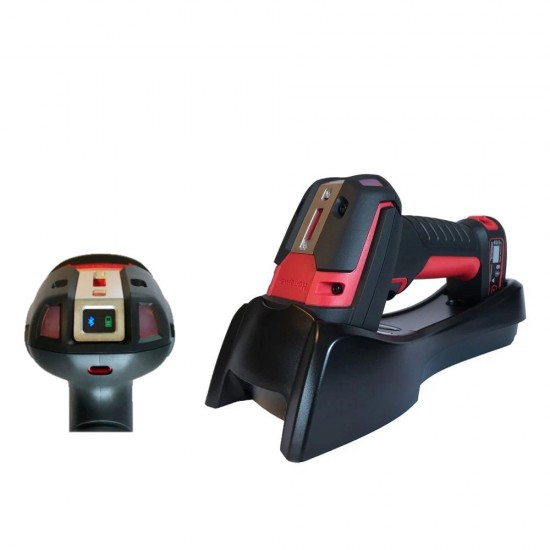

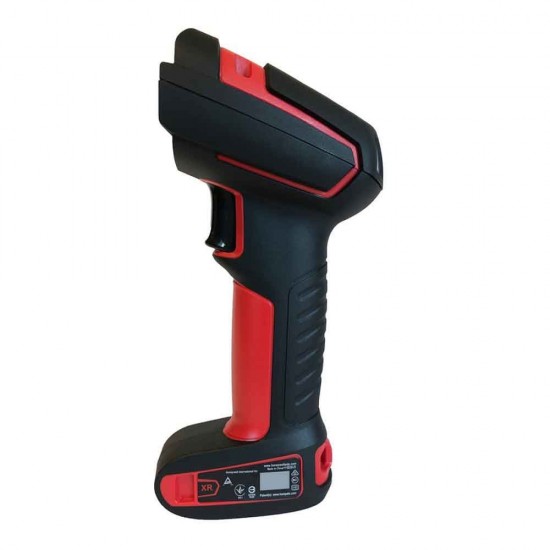

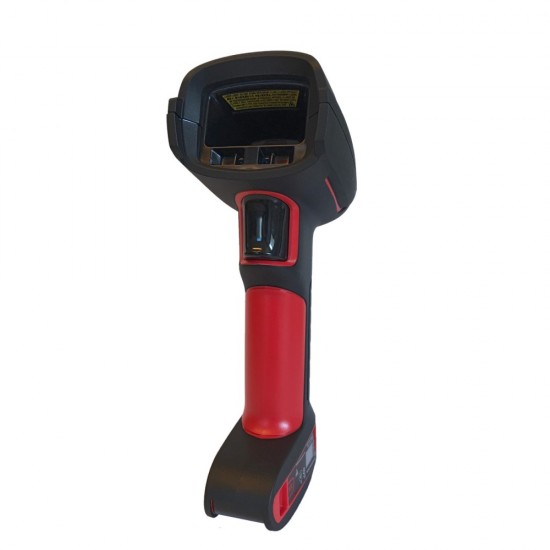

Honeywell Granit 1991iSR Ultra-Rugged Standard Range Scanner

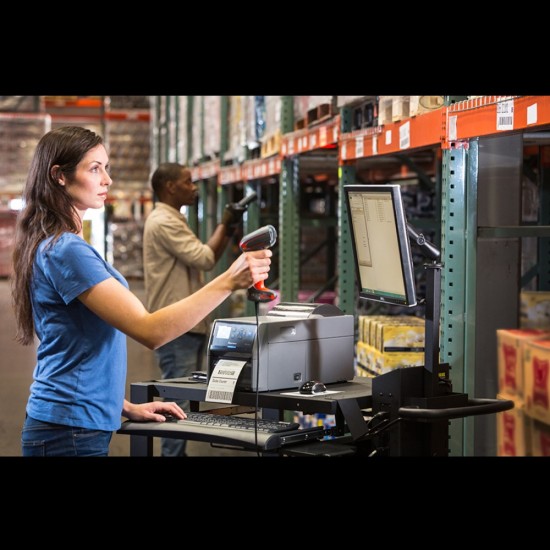

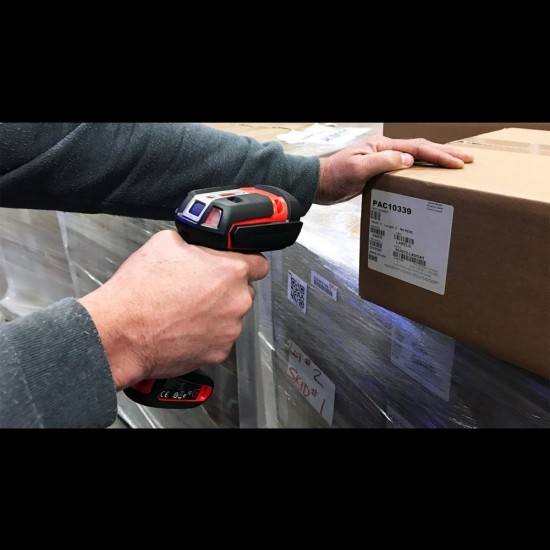

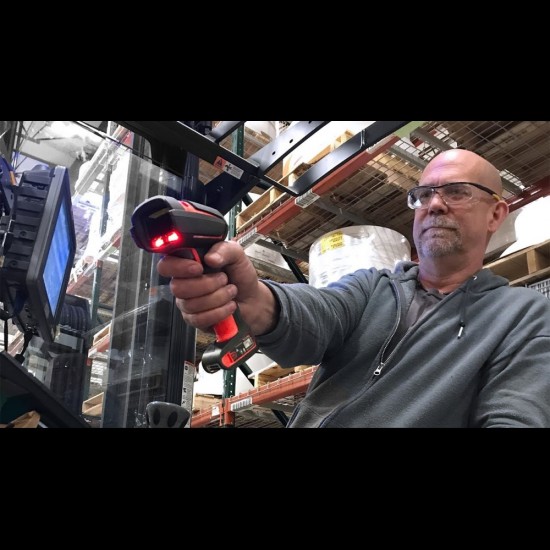

With a best-in-class 3 meter (10 foot) drop, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, forklifts and picking trucks.Granit provides extreme performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit faster than ever. The Granit™ XP 1991iSR model offer high-durability, extreme performance scanning for standard range operations. Created for applications where high speed scanning is needed to maximize productivity.

HONEYWELL

Specifications

Scanners
Reading mode	1D/2D Area Imager (1280 x 800 pixel array)
Scanning range/ Βάθος πεδίου	5mil Code 39 20 mm to 220 mm (0.8 in to 8.7 in) * 13 mil UPC 0 mm to 504 mm (0 in to 19.8 in) * 20 mil Code 39 0 mm to 837 mm (0 in to 33.0 in) * 6.7 mil PDF 417 20 mm to 209 mm (0.8 in to 8.2 in) 10 mil Data Matrix 30 mm to 220 mm (1.2 in to 8.6 in) 20 mil QR Code 33 mm to 475 mm (1.3 in to 18.7 in)
Scanning range/ Width of Field	Scan Angle: Horizontal 40°/ Vertical 30°. Pitch, Skew: -360°, 45°, 65°
Resolution	Min. resolution 1D Code 39 3 mil (0.076 mm) * Min. resolution 2D Data Matrix 6 mil (0.152 mm)
Interfaces	USB, Keyboard Wedge, RS-232 TTL, Bluetooth® v4.2

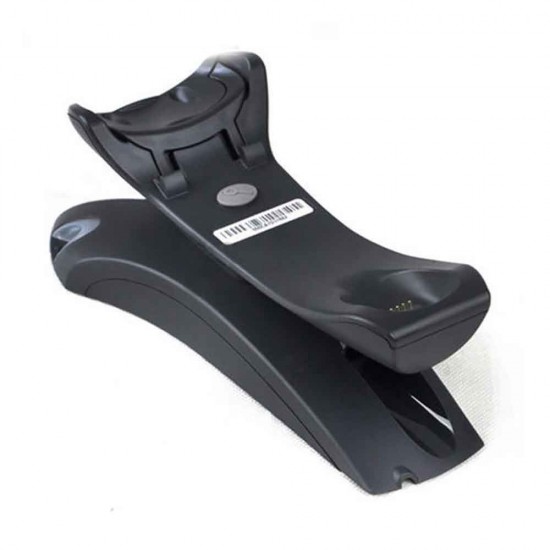

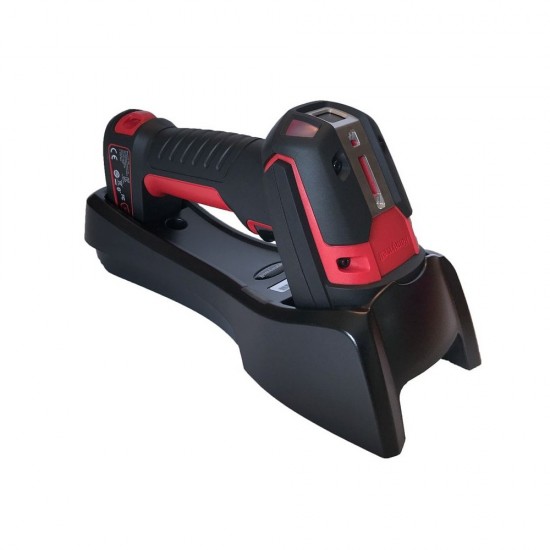

Dimensions	Scanner 192 x 76x 100mm/ Base 245 x 102 x 60mm
Weight	405 gr
Ambient light	100,000 lux
Sealing	IP65/ IP67
Symbologies	Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies
Additional features	Input Voltage: 4.0V DC to 5.5V DC. Operating Power: 5 W (1000 mA @ 5VDC). Standby Power: 0.5 W (100 mA @ 5V DC). Battery: 2450 mAh Li-ion minimum Number of Scans: Up to 50,000 scans per charge Expected Duration of Operation: 14 hours (1 scan per second) Operating Temperature: -20°C to -50°C (-4°F to 122°F). Storage Temperature: -40°C to 70°C (-40°F to 158°F). Humidity: 95% relative humidity, non-condensing. Drop: Designed to withstand 50drops from 2m (6.5 ft) / 20 drops from 2.4m. Drop from 3m MIL-STD. Warranty: 3-year factory warranty
