ICS KJ-3300 HS Time Attendance-Access System

ICS KJ-3300 HS Time Attendance-Access System

Downloads

File	Size	Download
KJ-3300_EN (2).pdf	1.33MB	Download
KJ-3300_GR (2).pdf	959.83KB	Download

Description
Video

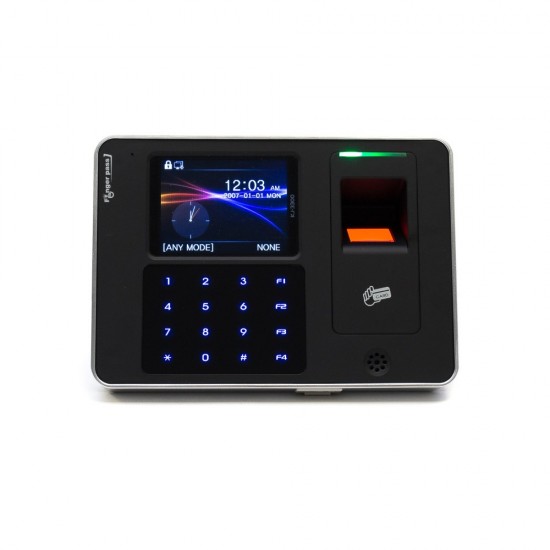

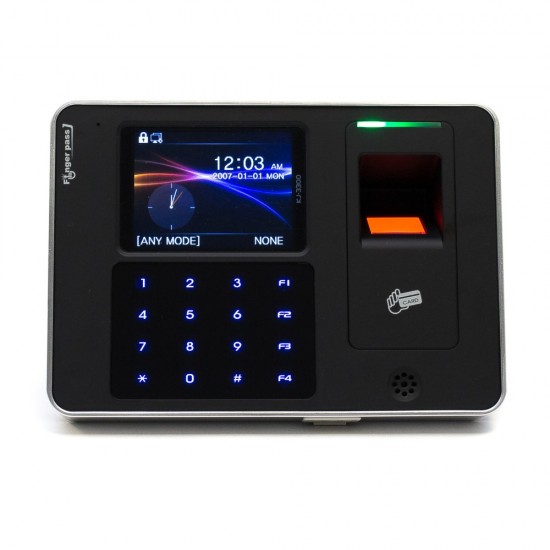

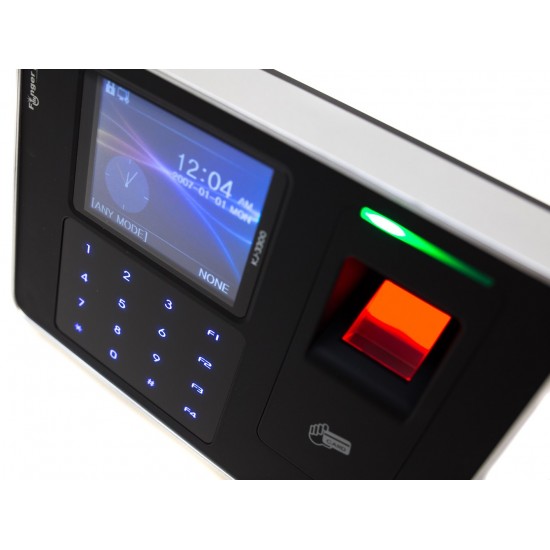

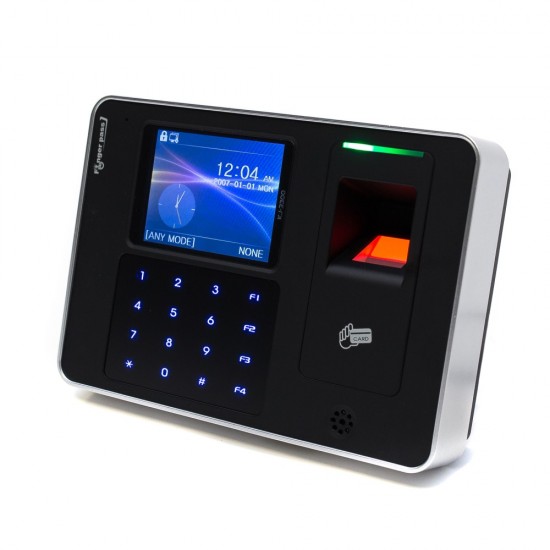

Time Attendance-Access System ICS KJ-3300 High Sensity

Superb algorithm, matching speed meets 0.3 secs for 2,000 fingerprints and 1sec for 50,000 fingerprints. Spoof Detection : Multi Spectral Imaging Sensor (Option). Can quickly detect a fake by characterizing the subsurface data against the known characteristics of the human skin. 2.8inch Color TFT LCD screen display. Display detailed information such as date, time user guide, and user list, etc. Auto Detection & 360 Direction Fingerprint Recognition. Can read fingerprints placed in any direction. Language : Multiple Language. GUI Touch Keypad. User friendly GUI and Touch keypad provide an easy way to access the system. IP 65. Suitable for outdoor installation

KJ-TECH

Specifications

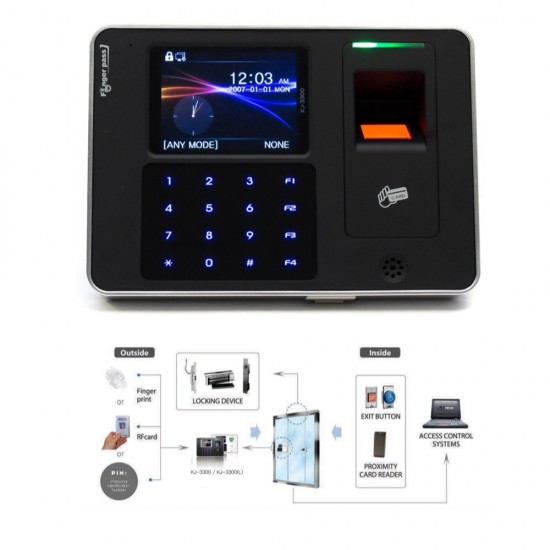

Access Control- Time Attendance Controllers
Monitor Controller	2.8'' TFT Color LCD
CPU Controller	32biT
Sensor	500dpi Optical sensor/ Multi Spectra Image sensor (Option)/ RF reader: 125KHz / 13.56MHz (HID prox, Indala, Mifare, EM, Felica)
Communication Type	TCP/IP, RS-485
Fingerprints	Fingerprint Capacity: 2K, 5K, 10K, 30K, 50K
Interface controller	Wiegand, USB Memory Card
Inputs	4 In
Outputs	2 0ut
Temperature/ Humidity Controller	IP 65 - Suitable for outdoor installation
Dimensions /weight Controller	115(H)x165(W)x49(D)mm
Additional features – controller	FAR/FRR: 0.00001/0.01 (%)/ Event log: Maximum 500,000 events/ Operation Mode: Password, Fingerprint, card mixture/ Power: 12V DC 500mA/ Auto Detection & 360 Direction Fingerprint Recognition, Can read fingerprints placed in any direction, Language : Multiple Language GUI Touch Keypad, User friendly GUI and Touch keypad provide an easy way to access the system
