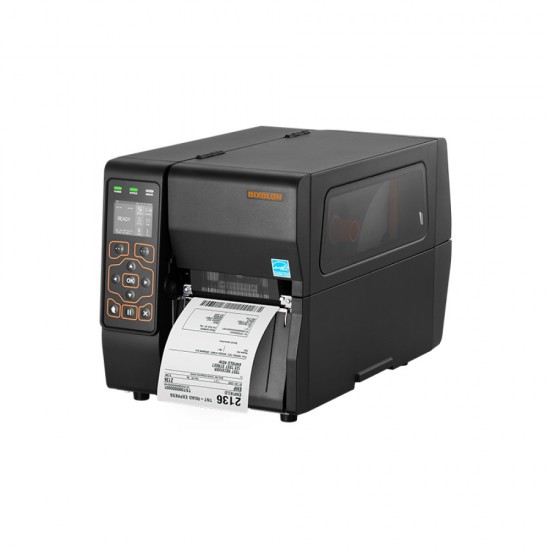

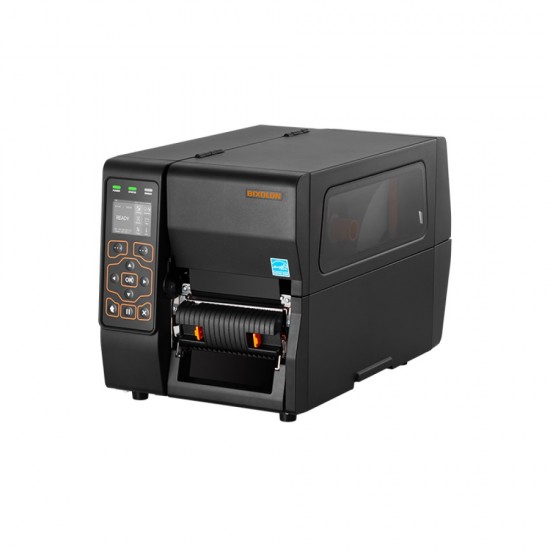

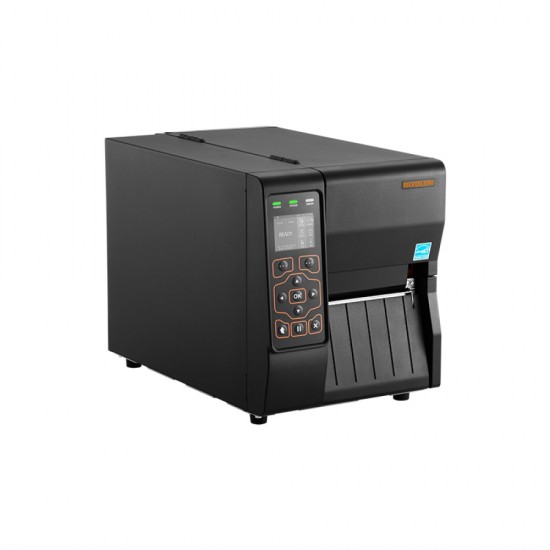

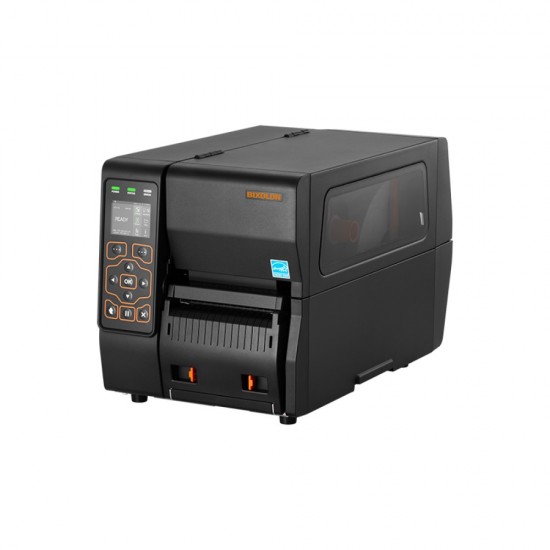

XT3-40 Industrial Barcode Printer

Downloads

File	Size	Download
BR_XT3-40_EN_Mar22_V1.pdf	282.95KB	Download

Description

Industrial Label Barcode Printer XT3-40 4'' USB + Serial + Ethernet

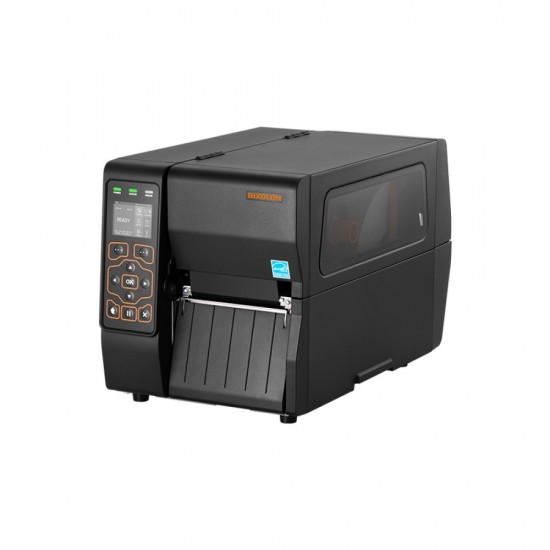

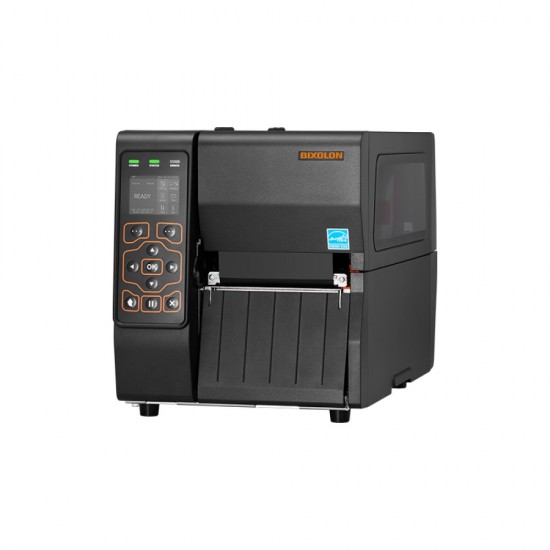

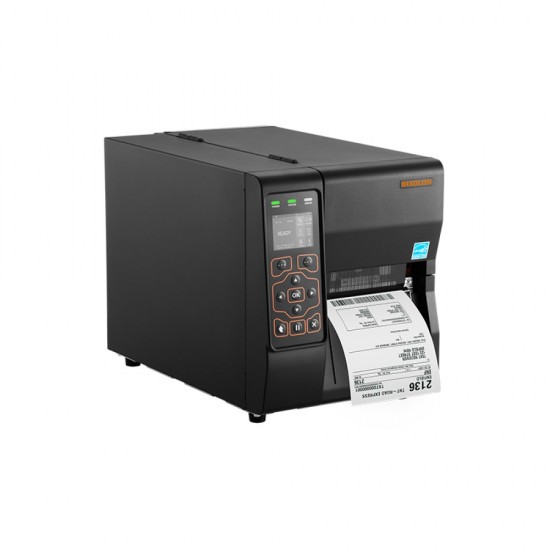

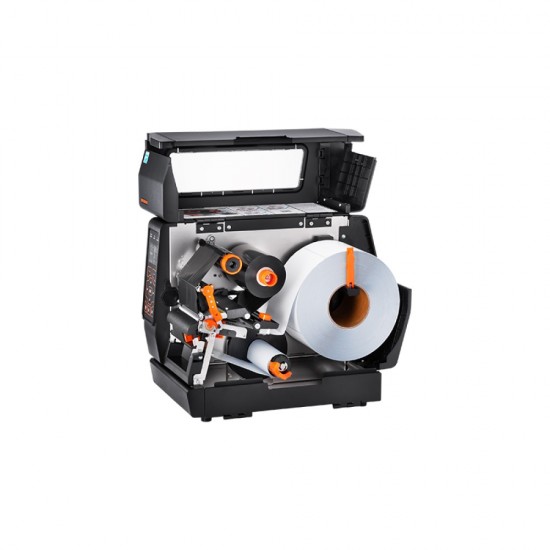

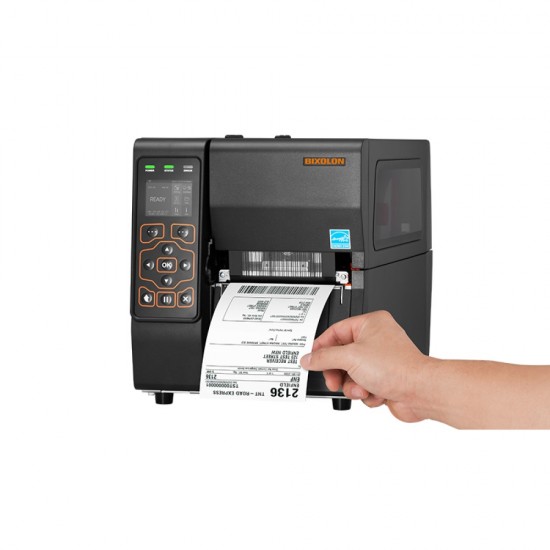

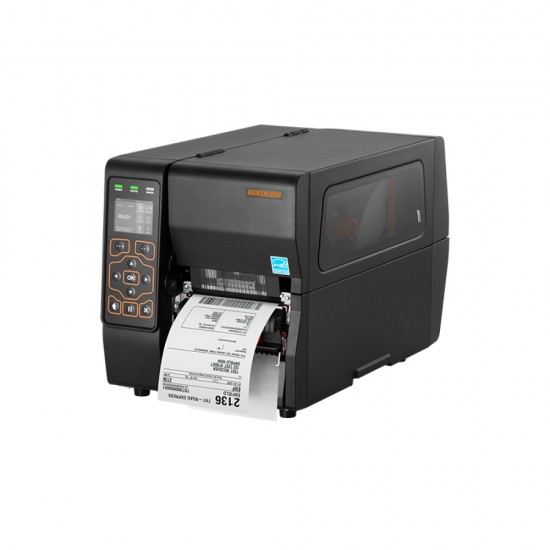

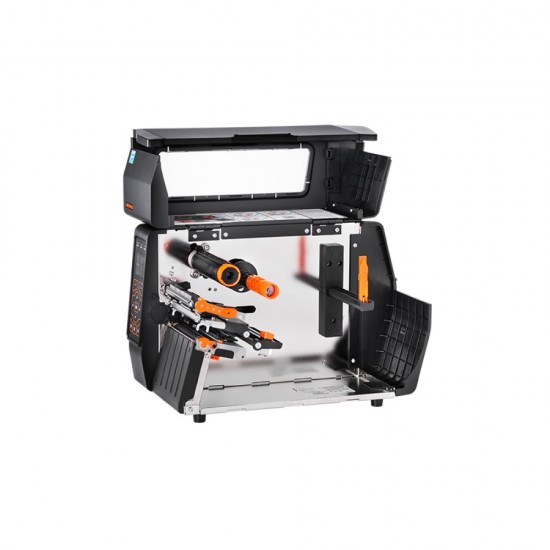

Industrial-Standard Performance and User-Friendly Design, this Industrial printer features fast data processing and print speeds of up to 203 mm/sec. Compact and robust design with all-metal case, double folding door and 2.4 inch full colour LCD display. Side-loading supplies path for simplified media and ribbon installation. Supporting up to 450m ribbon length. Toolless maintenance of roller and print head. Dual-band WLAN (5 GHz and 2.4 GHz) and

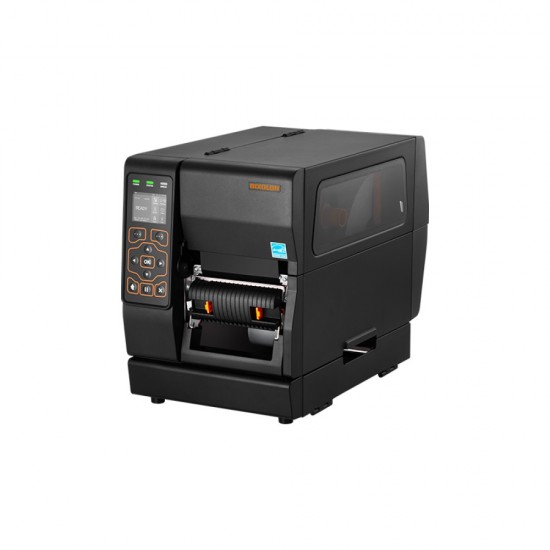

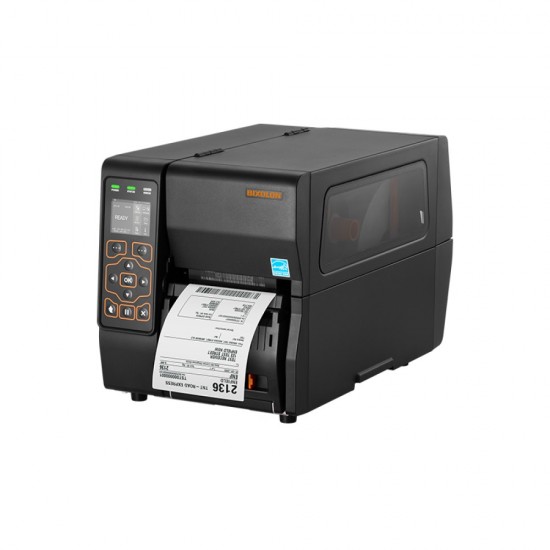

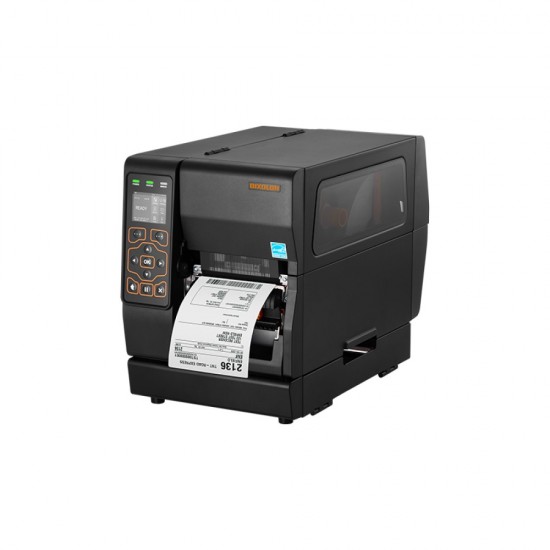

Bluetooth V5.2 (MFi certified). Fully compatible with market-leading programming languages. Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options.

BIXOLON

Specifications

Barcode Printers
Printing technology	Direct Thermal/ Thermal Transfer
Printing Speed	203 mm/sec
Printing Width	108 mm
Printing Resolution	203 dpi
Memory	128 MB SDRAM, 128 MB Flash

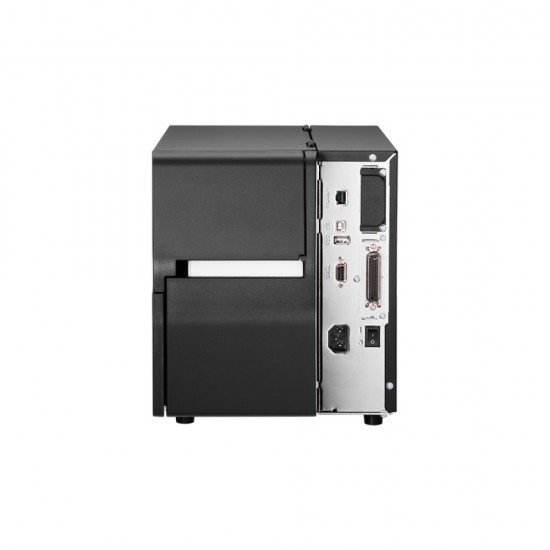

Interfaces printers	Standard: USB+USB Host+Serial+Ethernet
Additional features	Display 2.4 inch Color TFT LCD. Media Width 20 -114mm. * Emulation SLCS™, BPL-Z™, BPL-E™. Sensors: Transmissive (Adjustable), Reflective (Adjustable), Ribbon-End, Head Open. Operating Temperature : 5-40℃. Storage: -20-60℃. SDK / Plugin Android / iOS / Windows SDK, Linux SDK, Xamarin SDK, Web Print SDK. Dimensions 240 x 430.5 x 276.6mm. Weight 9.3kg. Optional Peeler, Auto Cutter, Rewind (Liner Take-up only, Internal, Max.OD 130mm), Serial cable.
