LK-P22 Mobile Printer

Downloads

File	Size	Download
LK-P22_LEAFLET_ics.pdf	662.67KB	Download

Description

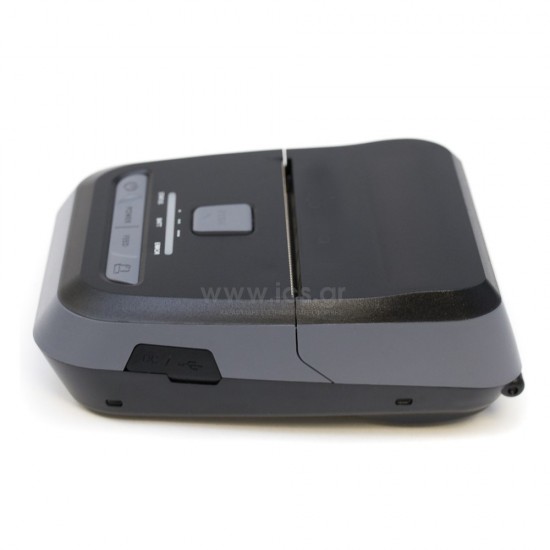

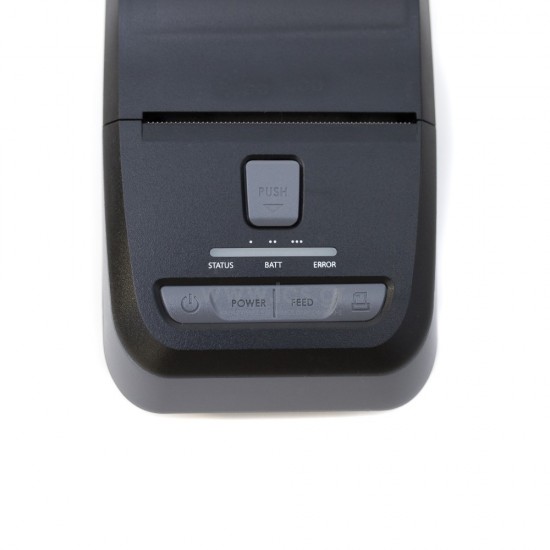

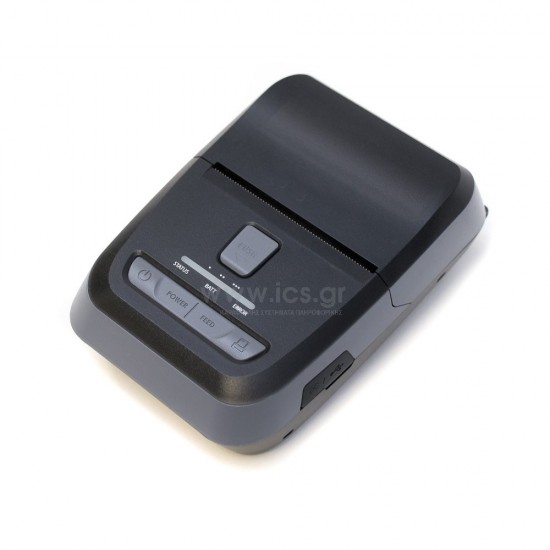

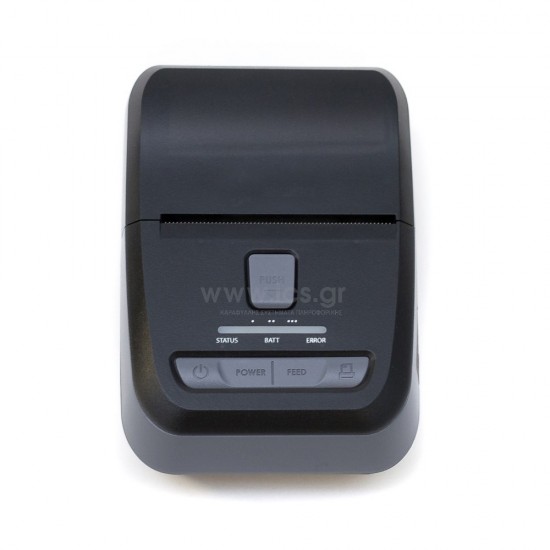

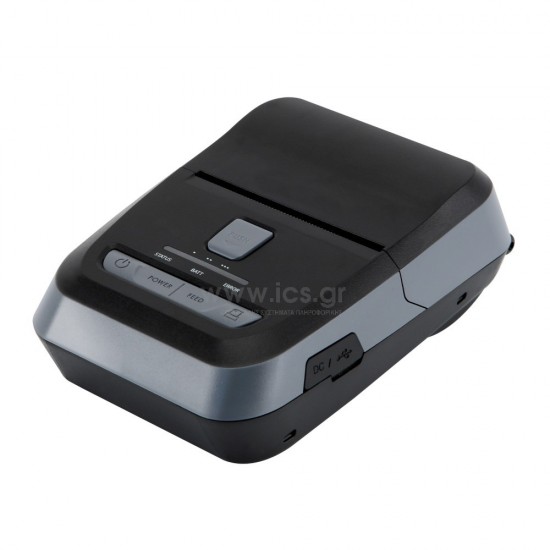

Mobile Printer LK-P22

Receipt direct thermal printer that prints at 100mm per second, with various Bluetooth connection, NFC function pairing and multi-connection. Standard interface USB and optional Bluetooth 4.2 or Wi-Fi(802.11 a/b/g) available. Magnetic stripe reader & smart card reader (Option). 1 power supply can be charged up to 4 cradles in a set. Large roll capacity (40mm). Long battery life (1450mA). The size is smaller than cellphones.

ICS

Specifications

Mobile Printers
Printing technology	Direct Thermal
Printing Speed	100mm/sec
Printing Width	48mm
Printing Resolution	203dpi
Interfaces	Serial(RS-232C), USB, Bluetooth Class2
Additional features	Emulation: ESC/POS, CPCL, ZPL Command compatible. Operation temperature -10 to 50℃. Storage -20 to 60℃.
Battery for Mobile Printer	Li-ion 7.4V, 1450mAh. Charging time 1.7 hours. 36 hours Stand-by.
Sensor	Paper End, Cover Open, Black Mark
