MMSR Magnetic Card Reader

Downloads

File	Size	Download
msrd-series-mmsr_series.pdf	1.93MB	Download

Description

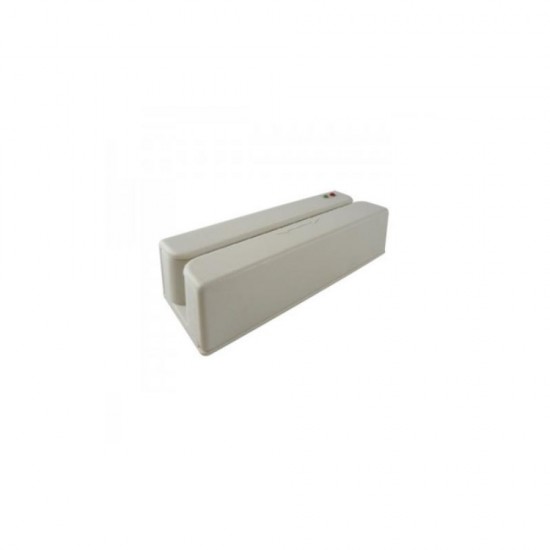

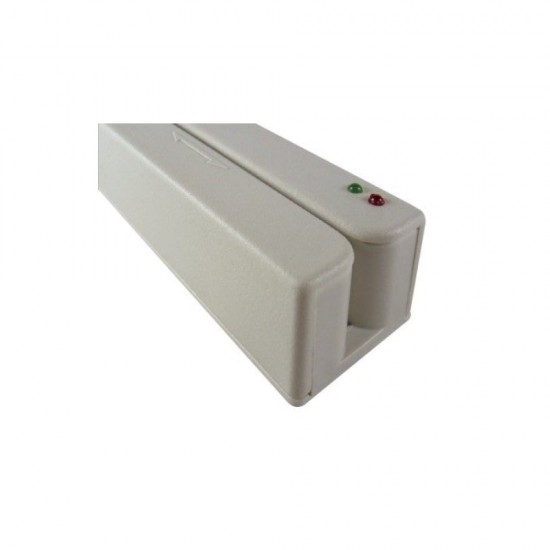

MMSR series mini magnetic card reader

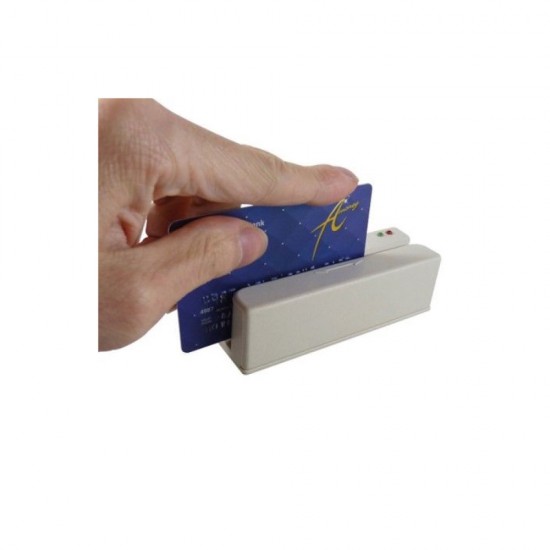

The MMSR series is a manual swipe type magnetic stripe card reader with the keyboard wedge, RS-232-TTL or USB connectivity selectable. With the durable and sharp read head, MMSR Series can operate over 300.000 pass minimum (and 1.000.000 passes model available for customized request). MMSR Series stripe card reader support standard ISO track format and compatible with JISII with its multiple Tracks (Track1,2 or 3). Together with the long head life and ABS housing, MMSR Series provides high reliability and durability.

ICS

Specifications

Card Readers
Card Standard	ISO and JIS standards
Magnetic Head	300,000 passes head (1,000,000 passes head available)
Reader Interface	PS/2, RS-232 or USB available
Reader Rate	10~60 inch/sec
Magnetic Track	1,2,3 1&2 2&3 1&2&3 and JIS-II compatible
Reader Power supply	Ρεύμα: +5VDC ±10%/ Κατανάλωση: <100mA
Reader Operation	Operating Temperature/Humidity: 0 °C~50 °C, 20%~80%RH, non-condensing/ Storage Temperature/Humidity: -20 °C~60 °C, 20%~90%RH, non-condensing
Reader Dimensions	158 mm(L) x 43 mm(W) x 44 mm(H)
Reader Weight	170 g
Reader Additional features	Recording Method: F2F (two-frequency coherent phase) complied with ISO & JIS standard/ Compliance CE, FCC/ Optional Accessories: Power Adaptor (+5VDC/1A, 100~240VAC, for RS-232 interface)/
