MC3300 Mobile Computer

MC3300 Mobile Computer

Downloads

File	Size	Download
mc3300-specification-sheet-en-us.pdf	738.51KB	Download
mc3300-accessories-guide-en-us.pdf	971.37KB	Download

Description
Video

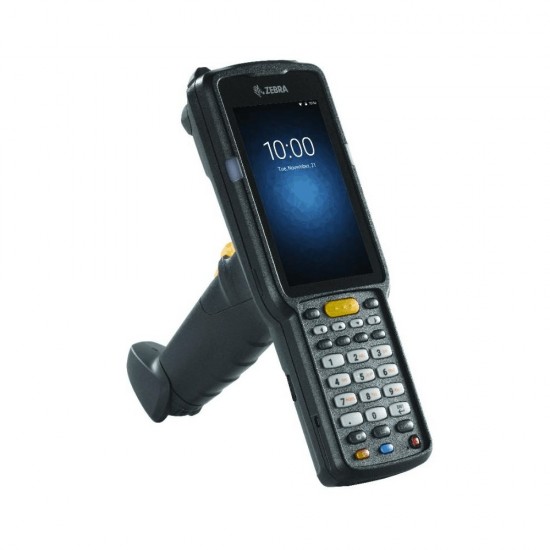

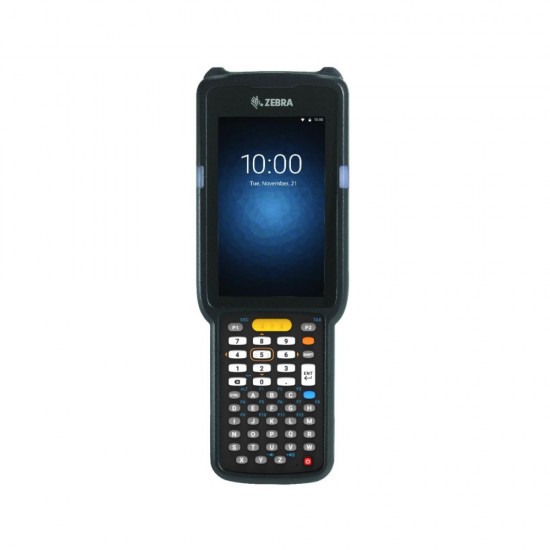

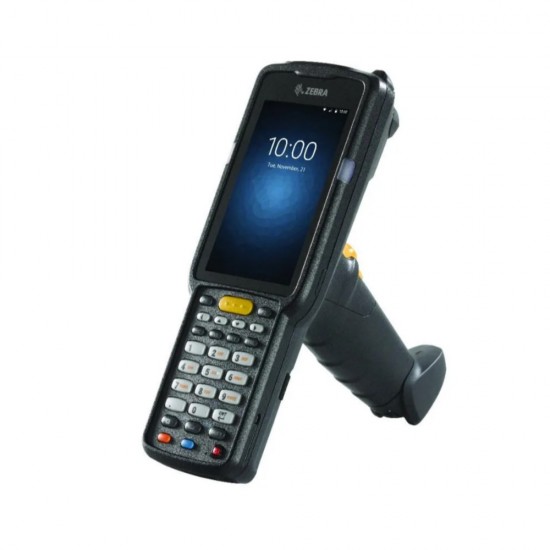

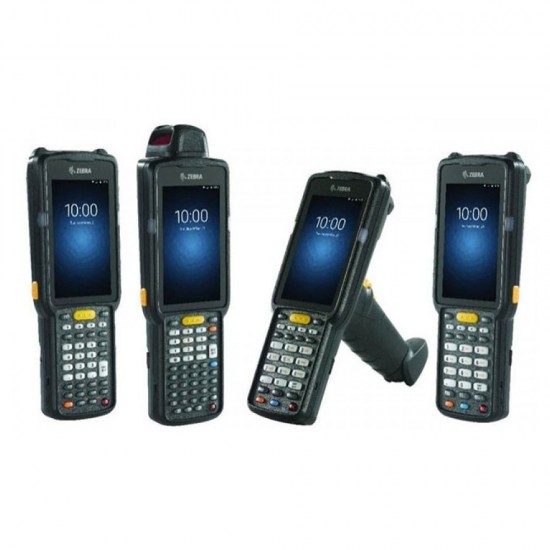

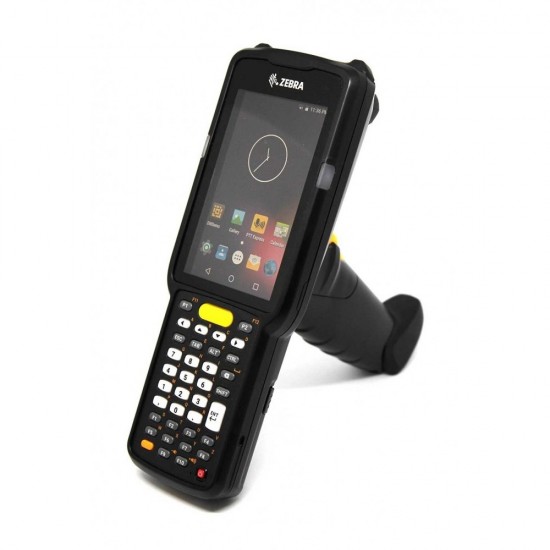

Mobile Computer Zebra MC3300

Introducing the next-generation mobile computer that generates more productivity, and profitability, for your business. It’s loaded with innovative features – such as multiple form factors for easier scanning, advanced long range data capture capabilities, a tough and rugged exterior and much more. Plus, the MC3300 is pre-licensed with “best for business” Android OS. Transform your business with the latest hardworking device from Zebra: the new MC3300.

ZEBRA

Specifications

Mobile Terminals
Monitor pda	4.0 inch capacitive; WVGA; color. Touch Panel Corning® Gorilla® Glass touch panel with air gap.LED backlight.
Operation System	Android 7.0 (Nougat) – AOSP; GMS – select configurations
CPU pda	Qualcomm 8056 1.8 GHz hexa-core 64 bit with power optimization.
Memory pda	2GB/16GB Standard; 4GB/16GB Premium; 4GB/32GB Premium Plus/ Expansion Slot Micro SD card slot, up to 32GB.
Communication	USB 2.0 High Speed (host and client), WLAN and Bluetooth.
Barcode scanner	MC3300 Brick/Straight Shooter (0° Scan): SE965 1D, SE4750SR 2D, SE4850 ERI/ MC3300 Turret/Rotating Head: SE965 1D Laser/ MC3300 Gun/Pistol: SE965 1D, SE4750SR 2D, SE4850 ERI/ MC3300 (45° Scan): SE4750SR 2D.
Battery pda	MC3300 Straight Shooter (45° Scan and 0° Scan)/ and Turret (Rotating Head): Rechargeable Li-Ion: standard 2700 mAh; High capacity 5200 mAh; Fast charging support (new accessories)/ MC3300 Gun/Pistol: Rechargeable Li-Ion: high capacity 5200 mAh; Fast charging support (new accessories).
Keyboard	Numeric (29 Key), Function Numeric (38 Key), Alpha Numeric (47 Key).
Sealing	IP54
Resistance	Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range/ Operating Temperature: -20° C to +50° C/ Storage Temperature: -40° C to +70° C/ Humidity: 5% to 95% RH (Non-condensing).
Dimensions/ Weight pda	Dimensions MC3300 Straight Shooter (45° Scan and 0° Scan): 7.96 in. L x 2.94 in. W x 1.35 in. D 202.2 mm L x 74.7 mm W x 34.5 mm D/ MC3300 Turret/ Rotating Head: 8.79 in. L x 2.94 in. W x 1.35 in. D 223.4 mm L x 74.7 mm W x 34.5 mm D/ MC3300 Gun/ Pistol: 7.96 in. L x 2.94 in. W x 6.45 in. D 202.6 mm L x 74.7 mm W x 163.9 mm D/ Weight MC3300 Straight Shooter (0° Scan): 13.2 oz./375 g/ MC3300 Turret/Rotating Head: 13.3 oz./377 g/ MC3300 Gun/ Pistol: 17.8 oz./505 g/ MC3300 (45° Scan): 13.5 oz./ 382 g.
Accessories	convenient belt holsters, batteries, reliable chargers and more.
Additional features mobile terminals	Voice: PTT Voice Support (Internal Speaker)/ Audio: Speaker/ Electrostatic Discharge (ESD): (+/-20kV) air, (+/-10kV) contact discharge/ Motion Sensors 3-axis accelerometer; gyroscope/Rear Camera: 13MP with Flash (Premium + models only) (Not available on the MC3300 Gun/Pistol)/ NFC Available on Premium and Premium + models.
