CK65 Handheld Computer

CK65 Handheld Computer

Downloads

File	Size	Download
ck65-gen-II-mobile-computer-data-sheet-en.pdf	351.81KB	Download

Description
Video

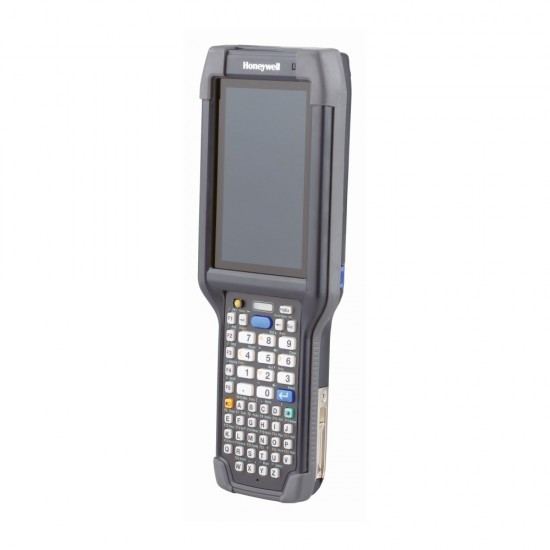

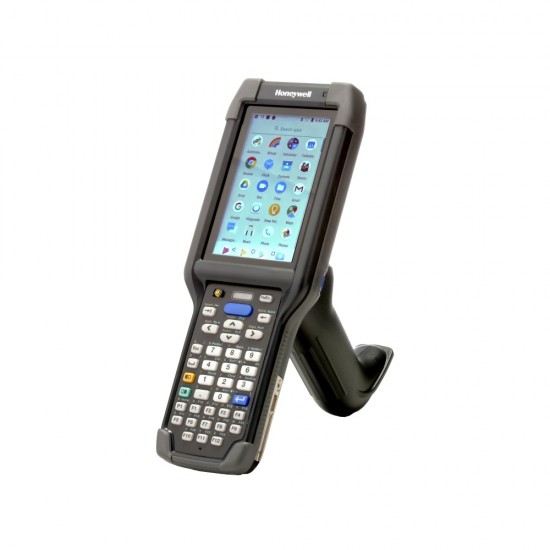

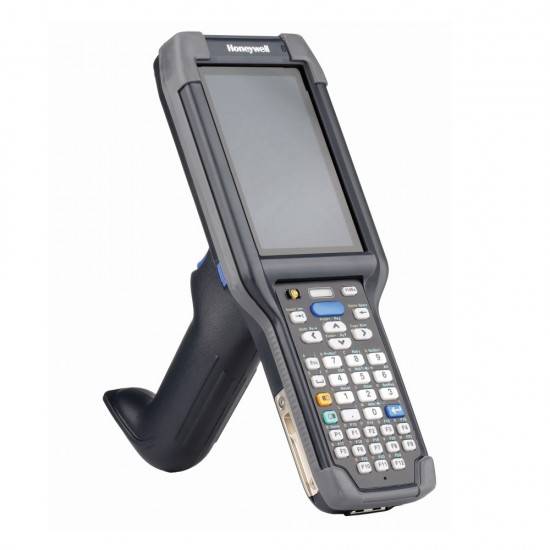

Handheld Computer Honeywell CK65

The CK65 mobile computer boosts supply chain productivity by accelerating and error-proofing work in distribution centers and manufacturing. With the longest supported lifecycle available, up to 28-hour battery life, and best-in-class ruggedness, the CK65 maximizes productive uptime, while providing an easy path for users migrating from legacy Windows® operating systems to the Android™ platform.

HONEYWELL

Specifications

Mobile Terminals
Monitor pda	10.16 cm (4 in) 480 x 800 bright color LCD with backlight, outdoor readable, optically bonded to touch panel. Touch Panel: Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with many off-the-shelf gloves
Operation System	Android 8.0 Oreo (system compatible up to Android R)
CPU pda	2.2 GHz Qualcomm® 64-bit Snapdragon™ octa-core
Memory pda	2 GB/4 GB DDR4 RAM, 32 GB Flash
Communication	WLAN: IEEE 802.11 a/b/g/n/ac; Wi-Fi certified 2x2 MIMO support. Additional WLAN Features: 802.11 d/e/h/i/k/r/w. WLAN Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise) Supported EAP: TLS, PEAP, TTLS, PWD, LEAP CCX Version 4 certified. Bluetooth: V5.0 with BLE and Backward Compatibility. Bluetooth Profiles: HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT. NFC: Integrated Near Field Communication VoIP: Supported. VPN: IPSec V4/L2TP, PPTP. Push to Talk (PTT): Supported
Barcode scanner	Honeywell N6703 Slim Imager Engine (1D/2D); 6803FR FlexRange Slim Imager (1D/2D); Honeywell EX20 Near/Far Imager (1D/2D); Honeywell Scanning SDKs for Android
Battery pda	Li-Ion, 7.000 mAh Smart Battery. Hours of Operation: 28 hours
Keyboard	51-key alpha or 38- or 30-key numeric keypad, plus two programmable side buttons
Sealing	IP65 and IP67
Resistance	Drop: 3 m (10 ft) to concrete at room temperature, 2.4 m (8 ft) across operating range per MIL-STD 810G Tumble: 2,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification ESD: ±15 kV Air and ±8 kV Direct
Dimensions/ Weight pda	22.7 cm x 8.3 cm x 4.2 cm/ 44 g (19.2 oz) with battery pack
Accessories	Docks and Modules/ Holsters and Handles/ Batteries and Chargers/ Cables/ Power Supplies and Adapters/ Replacement Parts/ Snap-on Adapters/ Flex Dock Supplies
Additional features mobile terminals	Audio: Speaker, microphone support with noise cancellation. PTT support and Bluetooth® wireless headset support I/O Ports: Durable, custom I/O connector compatible with CK3 accessories Camera: 13.0-megapixel color camera with autofocus and advanced software features for better image quality, f/2.0 aperture, flash LED with flashlight mode Sensors: Ambient light sensor, accelerometer, gyroscope, hall effect Storage Expansion: User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)/Operating Temperature: Standard Temp Unit: -20°C to 50°C (-4°F to 122°F) Cold Storage Unit: -30°C to 50°C (-22°F to 122°F) Storage Temperature: -30°C to 70°C (-22°F to 158°F) Humidity: 0 to 95% relative humidity (non-condensing)
