EDA52 Handheld Computer

Name: EDA52 Handheld Computer
Brand: HONEYWELL
Price: 1.00 EUR
Availability: InStock

EDA52 Handheld Computer

Downloads

File	Size	Download
SCANPAL EDA52 Datasheet.pdf	110.71KB	Download

Description
Video

Honeywell ScanPal EDA52 1D/2D barcode,WLAN, USB, Android 11,IP67

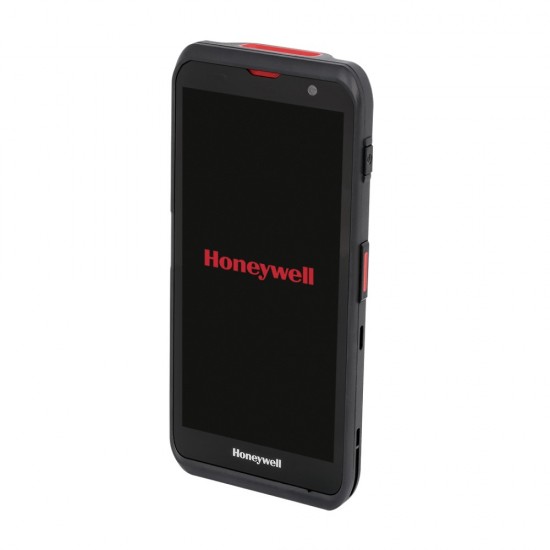

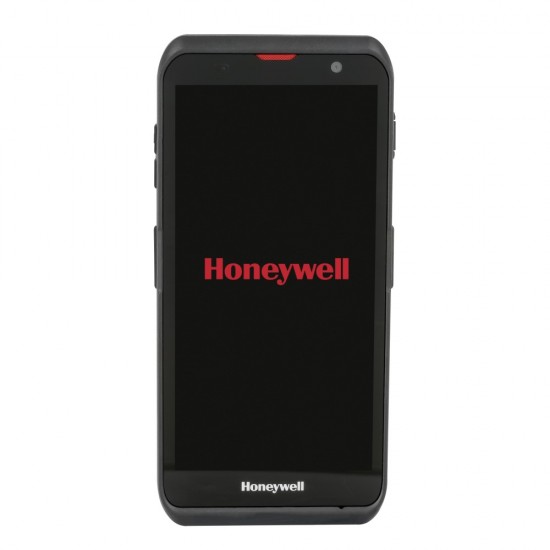

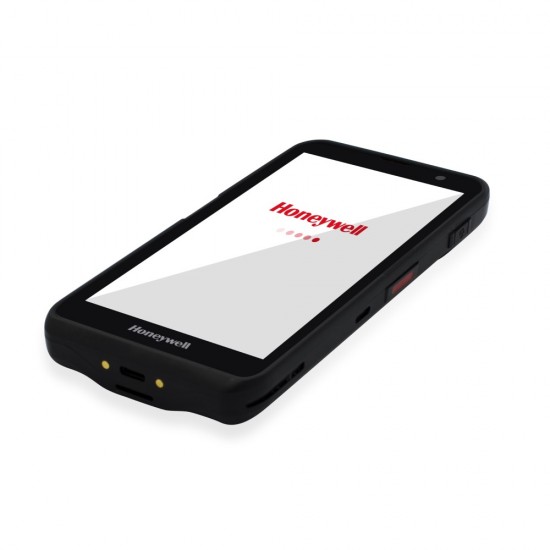

The ScanPal EDA52 Honeywell mobile computer is equipped with Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication. Gorilla Glass 5.5-inch touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day. The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication. The EDA5S incorporates the all-new and powerful Honeywell S0703 scan engine which enables accurate and fast reading even of damaged or incomplete barcodes. Outfitted with a rugged housing and IP67 rated sealing and MIL-STD-810G, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery provides more than 12 hours of power without interruption. The EDA52 is built on Android 11 and upgradable to Android 13. This device meets the Android Enterprise Recommended requirements.

HONEYWELL

Specifications

Mobile Terminals
Monitor pda	5.5-inch Touchscreen: Multi-touch capacitive (CTP), GFF. LED Backlight, Gorilla Glass. Resolution: 1440 x 720 High Definition
Operation System	Android 11, upgradable to Android 13
CPU pda	Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz
Memory pda	3 GB RAM/32 GB Flash/ 4 GB RAM/64 GB Flash/ 6 GB RAM/128 GB Flash
Communication	WLAN Wi-Fi IEEE 802.11 a/b/g/n/ac. Bluetooth Class 5.1. GSM/EDGE. UMTS/HSPA. FDD-LTE. TDD-LTE. NFC. GPS.

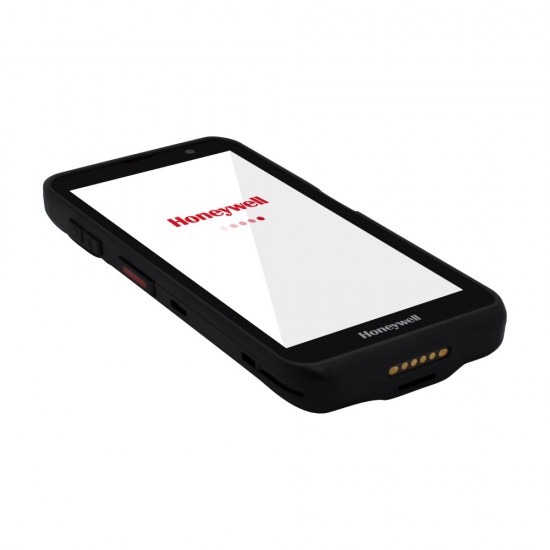

Interface-Ports	2 pin bottom connection, PC Interface USB 2.0 with Type-C
Barcode scanner	Honeywell S0703 Slim Imager (1D/2D barcode symbologies
Battery pda	Li-Ion, 3.8 V, 4.500 mAh removable. Charging Time less than 3.5 hours. Battery Runtime more than 12 hours.
Keyboard	5 side keys for volume up/down, right and left scan keys and power on/off
Sealing	IP67
Resistance	Drop: 1.23 m (4.3 ft) to concrete. MIL-STD-810G under room temperature. 550 tumbles at 0.5m (1.64ft). Operating Temperature:-20°C to +50°C (-4°F to +122°F). Storage Temperature: -30°C to +70°C (-22°F to 158°F). Humidity: 5% to 90% (non-condensing)
Dimensions/ Weight pda	159 x 75 x 14.4 mm(6.26 in x 2.95 in x 0.57 in) Weight: 258gr

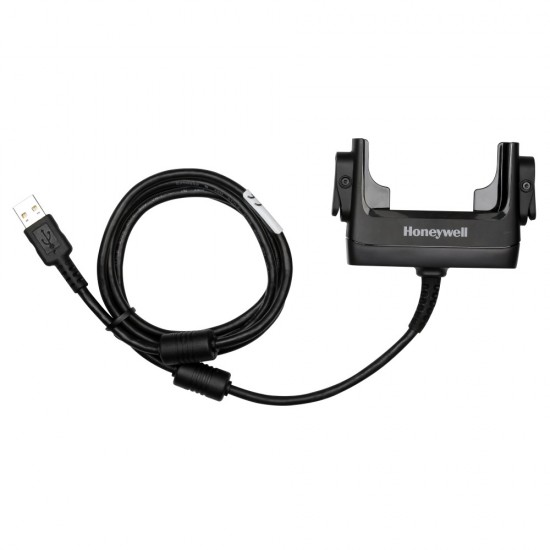

Accessories	Single Charging Home Base: Charges one terminal and one replaceable battery simultaneously. Backwards Adaptor Cup: Be compatible with EDA50/51 single charging dock. Standard Battery Pack. Quad Bay Battery Charger. RFID Bracket. Scan Handle. Rubber Boot. Wrist Strap. Hand Strap. Screen Film. Single Charging Dock: Charges one terminal. Quad Bay Charging Base: Charges four terminals simultaneously.
Additional features mobile terminals	Rear Camera 13-megapixel color camera. Front Camera 5-megapixel color camera. Storage Expansion: MicroSD (up to 128 GB). Real-Time Clock (RTC): 10 min back up vie super-cap. Sensors: acceleration sensor, light sensor, and proximity sensor. LED Battery Status Indicator. LED Scan Indication.
