| File | Size | Download |
|---|---|---|
| datalogic_skorpio_x5.pdf | 306.2KB | Download |
| Mobile Terminals | |
| Monitor pda | 4.3 inch TFT / Transflective LCD with 800x480 WVGA pixel resolution; LED backlight and integrated touch screen, High brightness for Indoor and Outdoor High Visibility |
| Operation System Mobile Computer | Android 10 with GMS – 2 Main OS Upgrade Support |
| CPU pda | Qualcomm SD660 Octa-core 2.2 GHz |
| Memory pda | RAM Memory: 3 / 4 GB; Flash Memory: 32/64 GB (partially used for firmware and reserved data) |
| Communication | Local Area Network (WLAN) IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc. Personal Area Network (WPAN) Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support. NFC Communication Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica |
| Interface-Ports | USB Type-C: USB 3.1 gen 1 (3.2 gen 1x1), host and device; Gigabit Ethernet connectivity (via 3-slot dock) |
| Barcode scanner | 1D Imager: Linear CCD 2500 pixels. Sharp green LED scan line. Print contrast min.15%. 2D Imager Standard Range (supports 1D / 2D codes): White LED Illumination, laser aim 650nm; Print contrast min. 25%. 2D Imager Mid-Range: White LED Illumination. Print contrast min. 25%. 2D Imager Extra Long Range (XLR): Red LED Illumination. Print contrast min. 20%. |

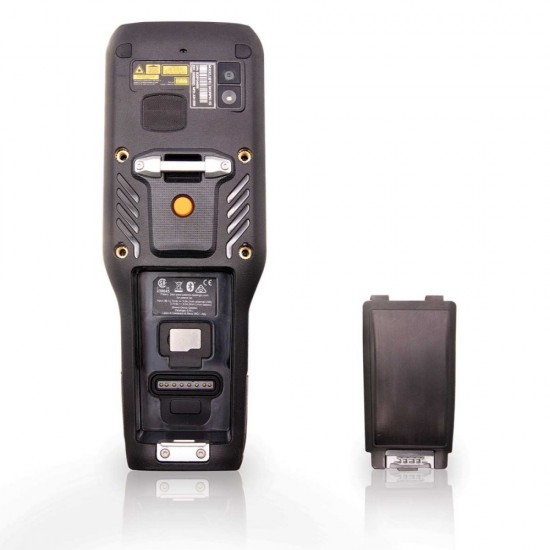

| Battery pda | Removable battery pack with rechargeable Li-Ion batteries; MicroUSB type-C for fast battery charging. Standard: 3.7 V; Rated 3460mAh typical 3500mAh (12.8 Watt-hours); standard on all handheld models Extended: Rated 6080mAh typical 6200mAh (22.1 Watthours); standard on all Pistol Grip models. |
| Keyboard | 47-key alphanumeric, 38-key function numeric, 28-key numeric; Keyboard with backlight |
| Sealing | IP65 |
| Resistance | Withstands drops from 1.8 m / 6.0 ft onto concrete/ Temperature Operating: -20 to 50 ºC / 14 to 122 ºF Storage: -30 to 70 ºC / -4 to 158 ºF |
| Dimensions/ Weight pda | Front size: 218 x 78.5 mm / 8.58 x 3.09 in. Thickness Max 31,3 Head; Max 35,6 WLC coil area and hand strap area; XLR front size: 220.3 x 89.2 mm / 8.67 x 3.51 in, thickness max 52.6 mm |

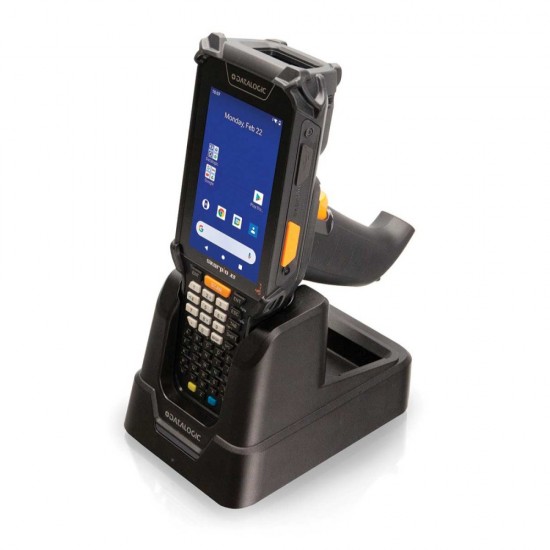

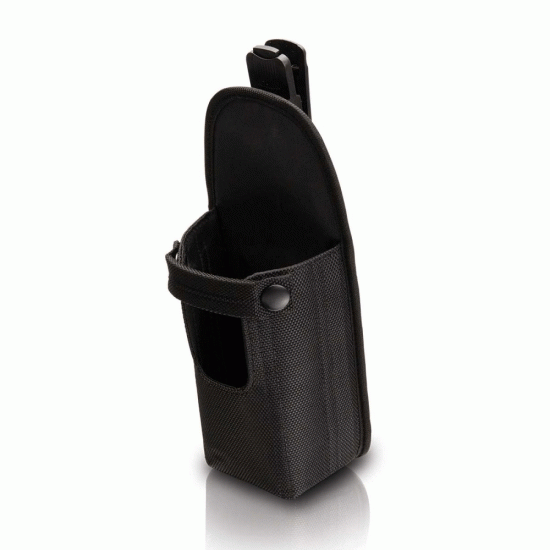

| Accessories | 94A150106 Single Slot Dock, Wireless/ 94A150107 Single Slot Dock, Wired/ 94A150108 3 Slot Dock Wireless Light/ 94A150109 3 Slot Dock Wireless Locking/ 94A150110 3 Slot Dock Wired/ 94ACC0274 Multi Battery Charger/94ACC0324 Screen Protector/ 94ACC0325 Attachable Pistol Grip/ 94ACC0323 Rubber Boot for HH and Gun/ 94ACC0331 Rubber Boot for Skorpio X5 XLR. |
