P2C T7 All in One Smart desk dock System

Downloads

File	Size	Download
p2c-t7-datasheet.pdf	612.42KB	Download

Description

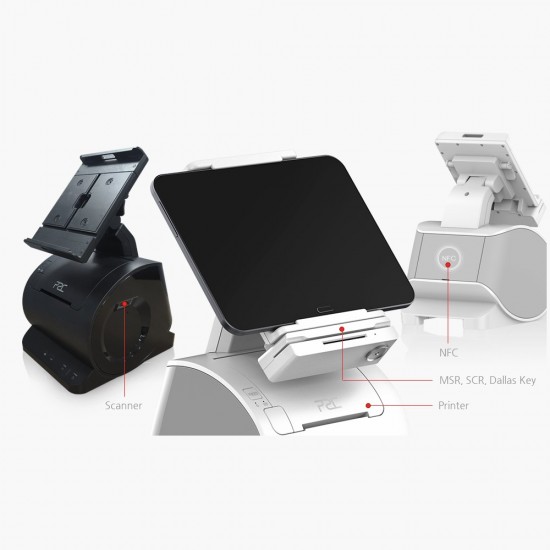

P2C T7 All in One desk dock POS KIOSK with printer, scanner, MSR,SCR, NFC

Sturdy with a luxurious finish system, extermely functional that fully converts to desk POS. Charging mount with printer, scanner, MSR, SCR, NFC included. Scanner and NFC are not compatible together. Expansive compatible with a variety of tablets. Durable and stable with a low center of gravity design. Turning tablet stand to share the POS screen with customer. Simple maintenance and easy to disassemble. Compatibile with a variety of Android, Windows based tablets and automatically contols a variety of devices. Hardware can be interlocked by selecting the correct properties. Peripheral devices operate as one with cash drawers , barcode scanners , card readers, etc. Tablet size supported 10” to 12”. Built-in Printer 3 Inch of 80mm with auto cutter. Integrated 1D / 2D CCD barcode scanner or Integrated NFC. MSR magnetic card reader, SCR smart card reader, Dallas Key All-in-One Smart Structure. Side USB, External USB, Serial, Cash Drawer I/O Port and multiple 3rd party device supported. Available in black or white.

P2C

Specifications

Kiosk POS

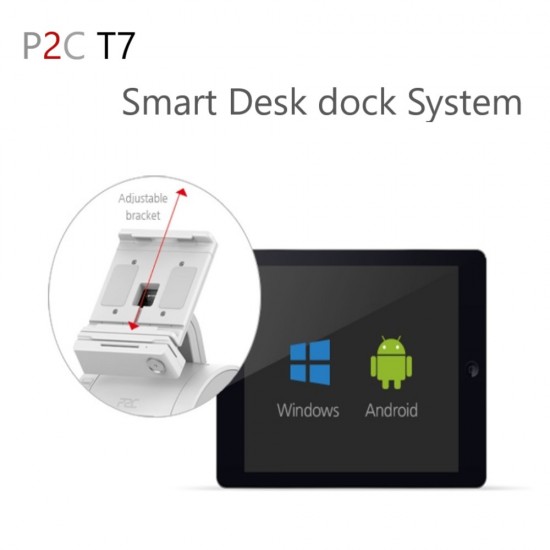

Monitor	Mountable tablet size 10 to 12 inches (165~223mm), Android, Windows
Operating System-compliant	Supported on all Android Tablet with Micro USB port.
Interface	3 x USB type A ports (on the bottom). 1 x RS-232 DB9 (on the bottom). 1 x RJ11(+24V), Support Epson and Star Cash Drawer.
Scanner	Optional 1D/2D CCD Barcode Scanner (Scanner and NFC is not supported simultaneously
Printer	3” Thermal Receipt Printer (12 by 24 fonts / 42 Colum) High speed: 200mm/sec (max.) 1 x Feed Switch, 1 x Error LED, 1x Power LED Buffer Size: 1Mbytes, Paper roll: 80mm
Additional features Kiosks	Certications: KC, FCC, CE, CB, PSE, RoHS, UL. Power Supply Universal input (96~264VAC), DC24V/2.5A, 60 watt, level VI eficiency. Options: Magnetic Stripe Reader, Smart Card Reader, Dallas Reader (i-Button).
Dimensions	(322~365) mm x 185mm x 221mm (Height x Width x Depth)/ 3.0Kg
