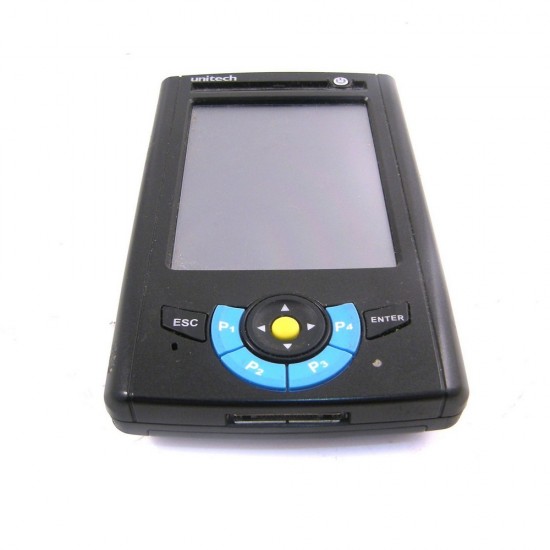

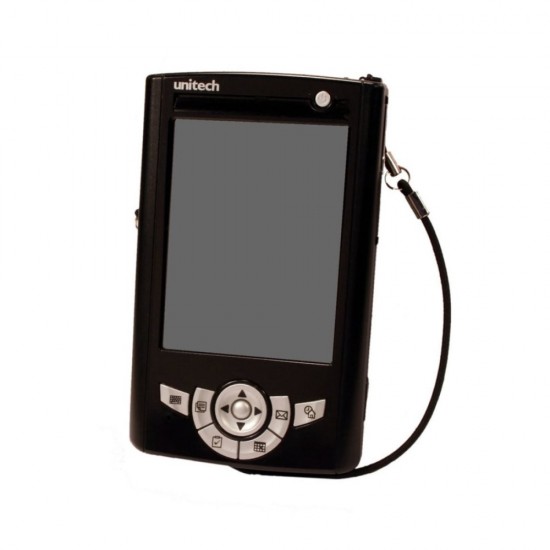

Mobile Computer  PA500II with Windows Mobile 6.5

PA500II offers far greater durability than consumer grade PDA’s. It can withstand multiple 90 cm drops to concrete, yet it fits easily into a shirt or trouser pocket. Its small size and light weight make it the ideal device for employees that daily face customers. Order taking in hospitality, digital agenda for medical personnel or mobile POS in retail. PA500II serves different needs in different applications. The large touch screen allows easy and error free data input and the battery is capable to operate more than a full day shift. PA500II is designed to fit in hospitality and retail environments often surrounded by many Wi-Fi hotspots. Its Summit radio offers good roaming performance to ensure no order is missed. Worker flexibility and output will increase significantly, and not the least important, customer satisfaction will increase as well.


Specifications

Mobile Terminals
Monitor pda 3,5˝ QVGA 64K Colour Color Transflective TFT, with Touch Screen & backlight
Operation System Window MobileTM Version 5.0 Software for Pocket PC Premium Edition / Software: Microsoft Visual Studio 2005, Microsoft Windows Mobile 5.0 SDK, VOIP (via 3rd party), Oracle Database Lite
CPU pda Intel PXA270 520MHz
Memory pda SDRAM: 64MB/ Flash ROM: 64MB
Communication USB USB Client, USB Host (V1.1), IrDA SIR (UART 2) WLAN module 802.11b/g & Bluetooth 1.2
Interface-Ports Expansion Slot: SDIO / MMC slot (SD memory and SDIO Ambicom WiFi).
Barcode scanner 1D Barcode Scanner Laser (Optional)/ Scan rate: 104 scans/sec. ± 12 scans/sec. (bi-directional)/ Scan Angle: 47o ±3o default / 35o ±3o reduced/ Symbologies: UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI, Code 93,Code 32, Interleaved & Std. 2 of 5, EAN 128, Code 11, Delta, MSI/Plessey, Code 128, Toshiba.
Battery pda Main Battery 3.7 V, 2200mAH (with UL certification) Support 4 hours operation with WLAN connection Rechargeable Fully charged within 3.5 hours Backup Battery Support 1 hour data back w/o main battery
Keyboard 6 feature keys and one navigation key
Sealing IP42
Resistance 1,2 m
Dimensions/ Weight pda 126 x 25 x 77 / 213g

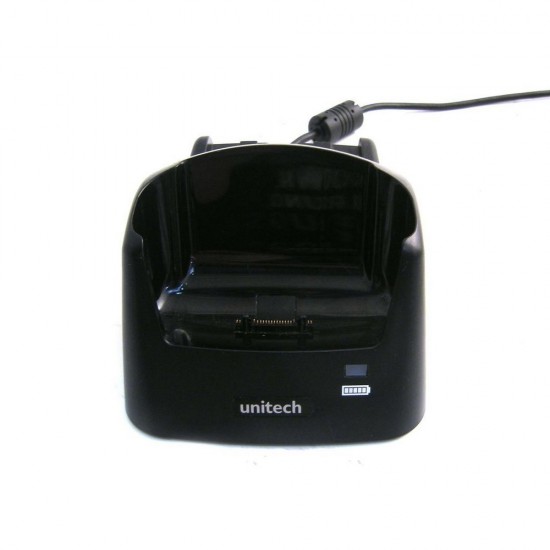

Accessories Desktop Cradle, USB Communication & Charging Cable, Battery Charger, Leather Case, Earphone, Cord, PSU
Additional features mobile terminals Audio: Stereo playback, Windows Media Player Support, MIC, Speaker, HHeadset Connector, Receiver/ Operating temperature 32o F to 122o F (0o C to 50o C) Storage temperature -4o F to 140o F (-20o C to 60o C) Relative Humidity 5% ~ 95%(non-condensing)/ Indicator: One LED dual function, Green, scan data, Red, charging status
