PD-24B Mobile Printer

PD-24B Mobile Printer

Downloads

File	Size	Download
Citizen_PD-24_Datasheet_EN.pdf	226.4KB	Download

Description

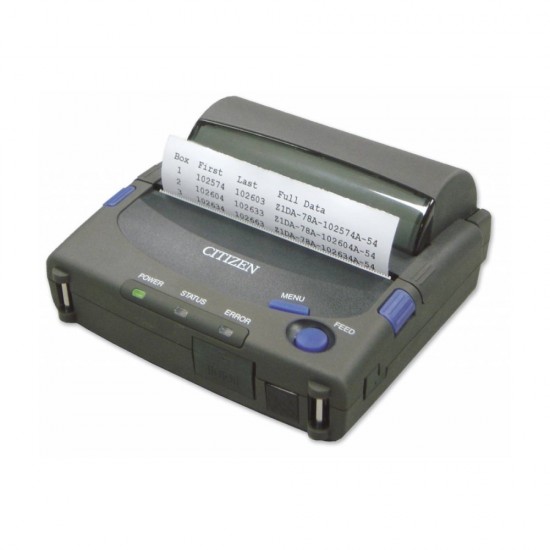

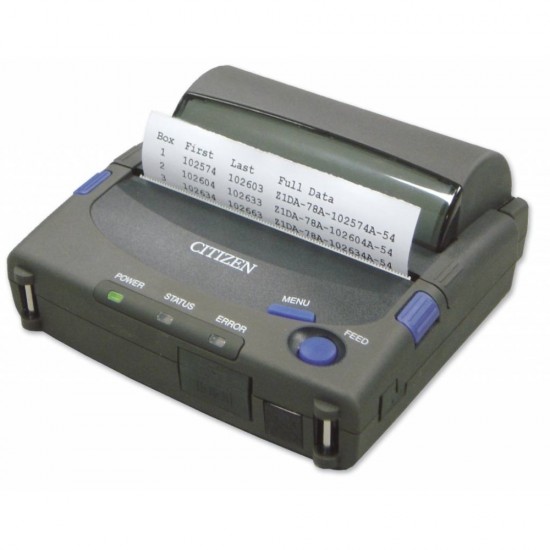

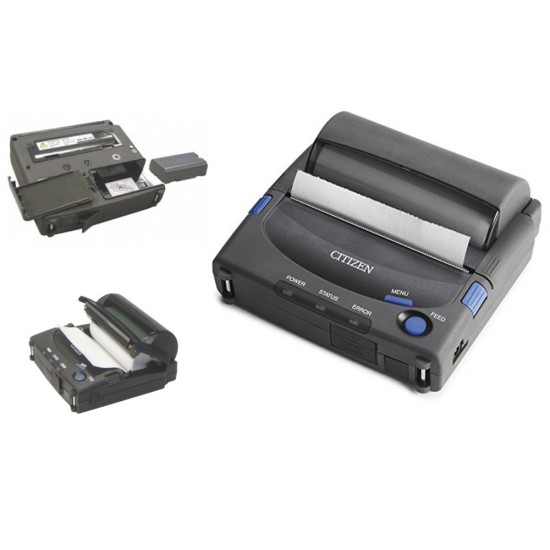

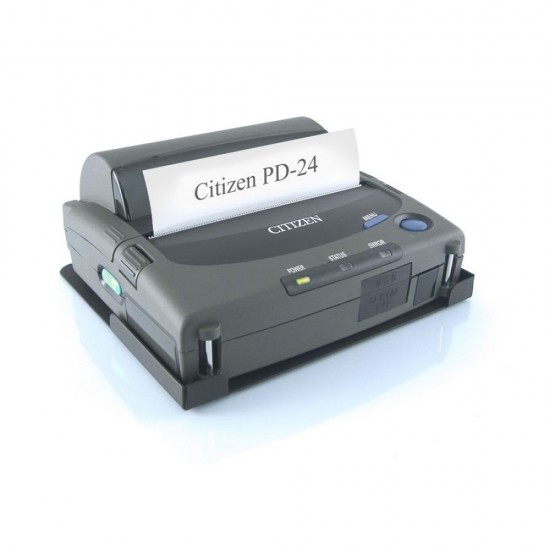

Mobile Printer PD-24B Bluetooth

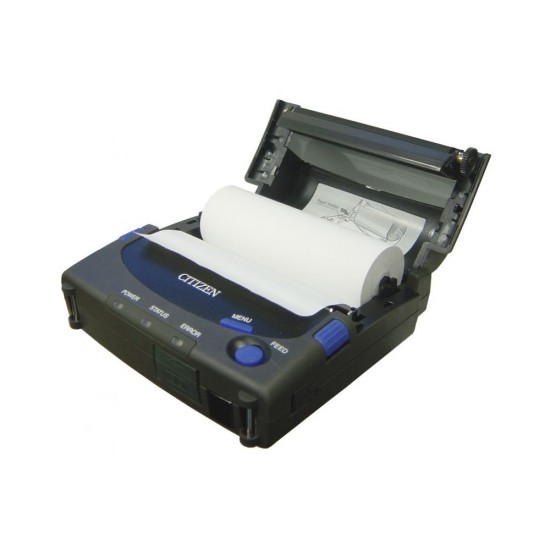

Stylish, Compact And Portable Printing. Four-inch width portable printer weighing just 540g. Features USB interface with miniature connector, RS232C Serial up to 115Kbps and Infrared IrDA interfaces. In addition to the standard interfaces, this model has an integrated Bluetooth wireless interface compatible with a range of terminals and PDAs. With 50 mm/sec. printing speed, 112mm printing width for portable applications that require more data. Infrared IrDA, Serial +USB interfaces with optional Bluetooth V.1.1.Long-life Li-ion battery. Easy paper loading. Can print A4 documents in a 4-inch format. AC charger included. Optional car charger and external battery charger available.

CITIZEN

Specifications

Mobile Printers
Printing technology	Direct Thermal
Printing Speed	50mm/sec
Printing Width	104mm
Printing Resolution	203dpi
Interfaces	Bluetooth®, USB, RS-232C Serial, IrDA Infrared
Additional features	Emulations: ESC/P™, Citizen Original Commands, ESC/POS™ (for barcode commands only). Operational Environment +5°C to +40°C. Storage -25°C to +60°C.
Battery for Mobile Printer	Lithium Ion (Li-Ion), typically 7.2 volts. Typical capacity of 2330 mAh
Sensor	Reflective media sensor for detection of black registration marks
