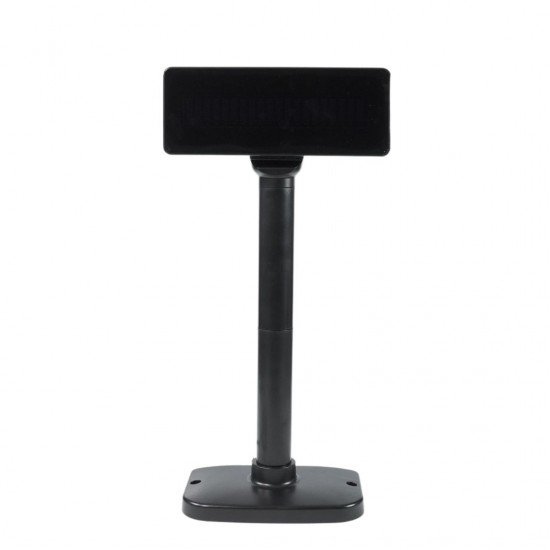

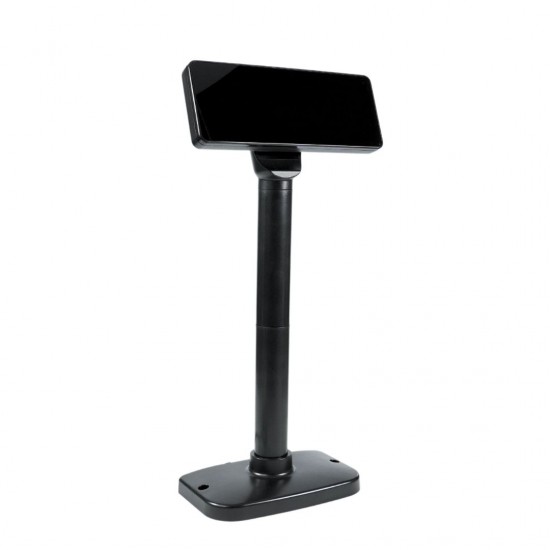

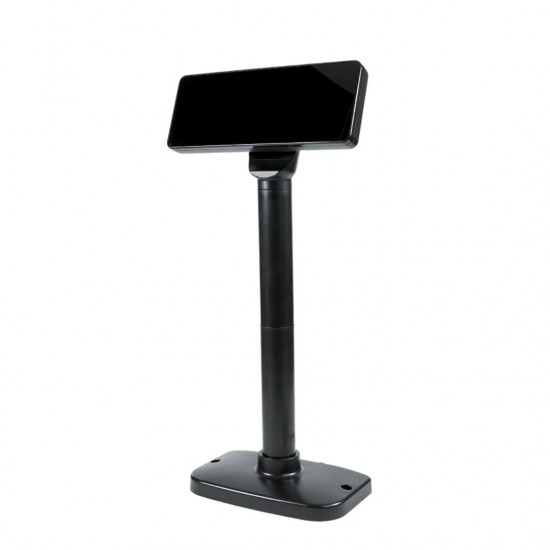

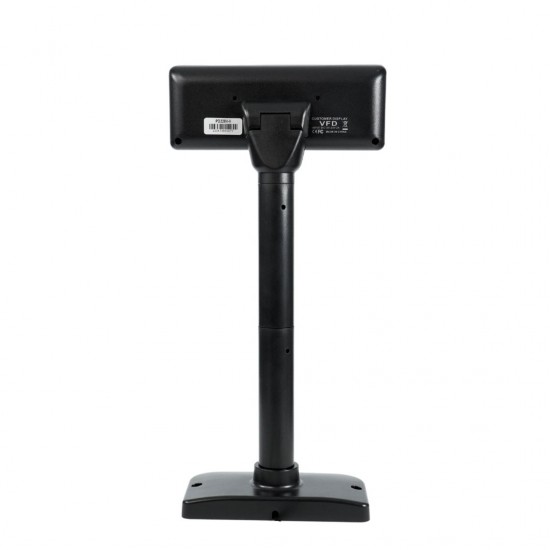

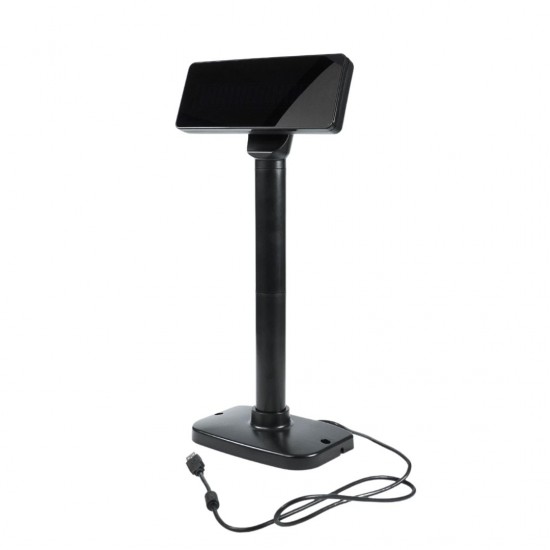

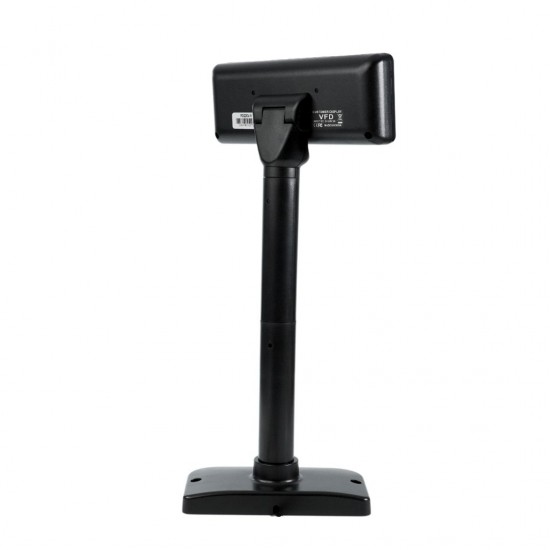

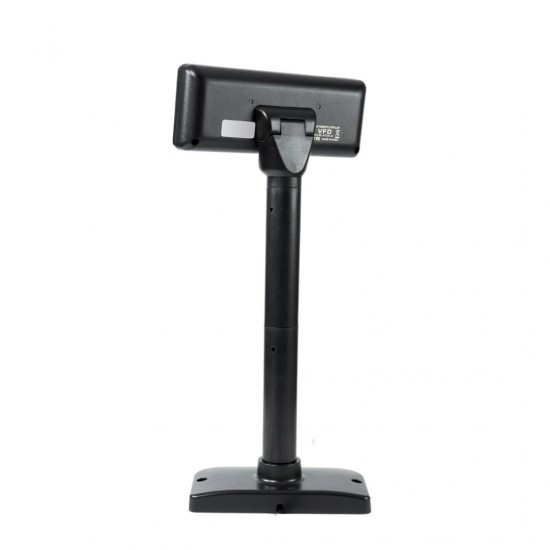

POS Customer Display PD220V II

Clear, easy-to-read VFD Customer Display, ESC/POS command 100% compatible, OPOS/JPOS driver, 2x20 Standard Durable Customer Display, Power supply from  5~12V, prevent any mindless use of improper power input! The average brightness of LCM customer display is 200cd/m2. But the brightness of LD240 is 1000cd/m2. LD240 has 2 kinds of interface, USB and RS232(Serial). Both these 2 kinds of interface, could support 5~12V power supply. By this even there is a user who has no experience of POS operation, will not have a change to damage the VFd by improper power input. 20 columns x 2 lines of dot matrix support high brightness and wide viewing angle.It is 5 times bright than LCD customer display. By this your customer can see the product information under strong light or outdoor sunlight. Also with a amazing wide viewing angle.

Specifications

Monitors
Monitor specifications Vacuum Fluorescent Display (Blue-green)
Brightness 700 cd/m2
Resolution monitor Dot Size 0.85 x 1.05 mm
Display area 204(H)x47.9(V)x33(D)mm
Interface RS-232 (serial-Direct connection 9600 or 19,200 bps) / USB
Response Time ms 25ms
Vieweing Angle Max. 90°
Backlight MTBF MTBF 30,000 hours
Power monitor 5~12 VDC
Dimensions /weight Top Head Dimension 237.1(H)x98(V)x55(D)mm Pole Dimension Ø33.5 mm L:130mm Base Dimension 217(W)x106(D)x35 (H) mm/ Approx. 980 grams
Additional features - Monitor Number of characters: 40 (20 columns x 2 lines)/ Character font¨5(H) x 7(V) dot matrix/ Character type: 95 Alphanumeric, 37 International Characters/ Character size: 5.25 (H) x 9.03 (V) mm/ Horizontal Rotation: Max. 355°/ Vertical Rotation: 0°~90°/ Commands Mode: ITIMATE, LD220, Aedex, UTC/S, UTC/E, ADM788, DSP800, CD5220, EMAX, Logic Controls/ Language Support : US English, Int'l English, Bosnia, Croatian, Czech, Danish, Dutch, Estonian, Faroese, Finnish, Flemish, French, Fr Canadian, German, Greek, Hebrew, Hungarian, Icelandic, Indonesian, Irish, Italian, Katakana, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovene, Slovak, Spanish, Swedish... / EMC/Safety standards: FCC, CE
