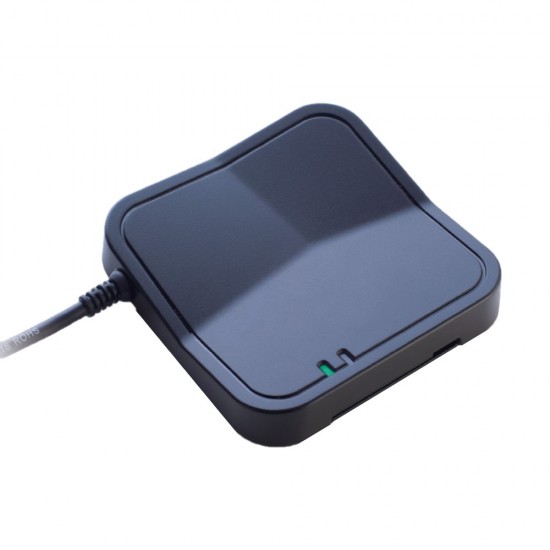

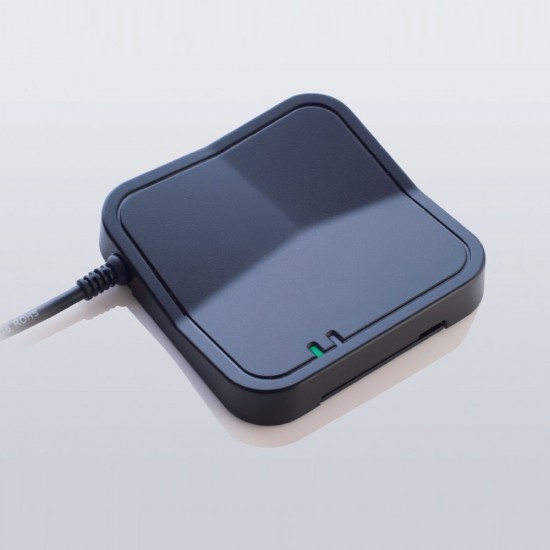

RFR811 NFC card reader

RFR811 NFC card reader

Downloads

File	Size	Download
Datasheet-RFR811.pdf	756.49KB	Download

Description

Host-linked contactless NFC USB card reader on 13.56 MHz Contactless (RFID) Technology.

Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports MIFARE®, ISO 14443 A and B, ISO15693 and FeliCa cards. The RFR811 is ideal for both secure personal identity verification and online micro-payment transactions. Other applications include access control, e-payment, e-ticketing The RFR811 comes with an optional holder with it could mount the reader either on desk or wall, so that users can tap contactless cards or NFC-enabled devices onto the RFR811 with ease. Read/write speed up to 424 kbps. Built-in antenna for contactless tag access, with card reading distance of up to 50mm (depending on tag type). Supports Near Field Communication (NFC) Standards. Completely integrated protocol handling for ISO 15693, ISO 14443A/B, MIFARE and FeliCa. Built-in anti-collision feature (only 1 tag is accessed at any time). Operation Voltage 5 Vdc. Card mode for card UID reading function, Mifare (APDU command). Peer-to-Peer mode (TBD). RS232 or USB Interface support. Peripherals: 2 color LED and buzzer.

Models: Function 13.56 MHz.

RFR811: Read Card UID only, ISO14443 Type A & B / ISO15693/ISO 18092 Tag/FeliCa.

RFR811M: MIFARE read/write (APDU)

RFR811i: ISO 15693 read/write (APDU), ISO15693

SCANTECH

Specifications

Card Readers
Card Standard	UID Reading (ISO/IEC 15693, ISO/IEC 18092 Tag, ISO/IEC 14443A/14443B, MIFARE and FeliCa card)
Reader Power supply	DC +5V ±5%/ RS232: ±9V, USB: +5V. Power On 120mA, Stand by (Max.) 110mA, Operation (Max.) 210mA.
Reader Operation	Function 13.56 MHz. RFR811: Read Card UID only, ISO14443 Type A & B / ISO15693/ISO 18092 Tag/FeliCa. RFR811M: MIFARE read/write (APDU) RFR811i: ISO 15693 read/write (APDU), ISO15693

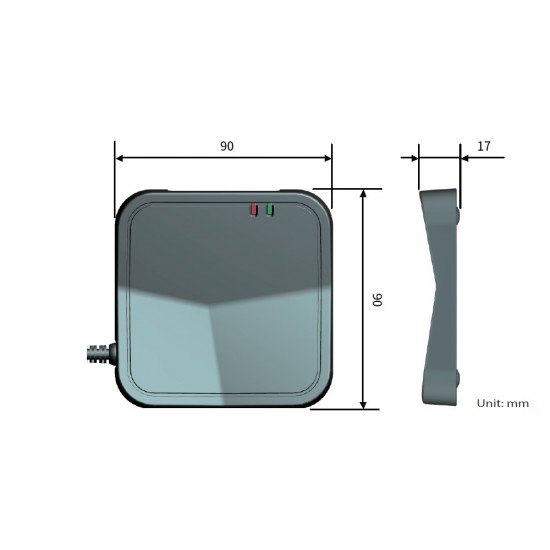

Reader Dimensions	90x 90x17mm
Reader Weight	Approx.125g / 4.41 oz (w/o cable)
Reader Additional features	Material ABS and Rubber stop. Cable Length 5FT./ 150cm. Interface cable USB or RS-232. Operating Frequency 13.56 MHz. Compliance: ISO14443 Type A & B, ISO 15693 ISO 18092 Tag, MIFARE, FeliCa. Operating Distance Up to 50 mm (depends on the tag type). Operating Temperature 0°C to 50°C (32°F to 122°F). Storage Temperature -20°C to 70°C (-4°F to 158°F), Relative Humidity 20% to 95%. Drop Resistance 59.05 inches (150cm).
