PowerScan PBT 9300 Scanner

Name: PowerScan PBT 9300 Scanner
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

PowerScan PBT 9300 Scanner

Downloads

File	Size	Download
DS-POWERSCANPBT9300-ENA4.pdf	319.17KB	Download

Description
Video

Scanner Datalogic PowerScan PBT 9300 1D

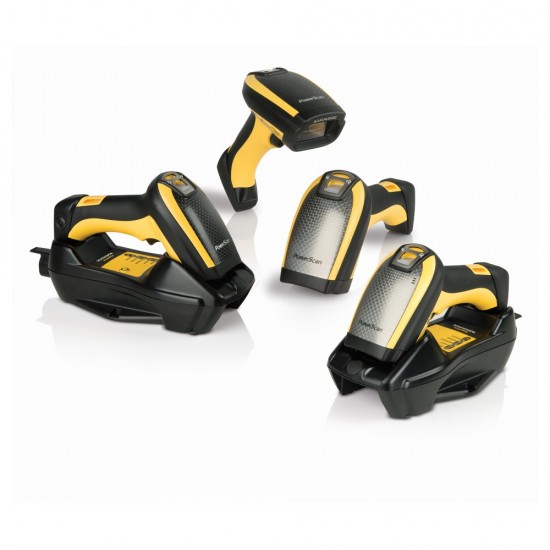

The PowerScan 9300 laser scanners have an ergonomic shape with well-balanced weight providing optimal operator comfort during scan-intensive operations. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge and USB (the cordless models also offer an optional Ethernet for Standard or Industrial uses), and have an extra-long range scanning capabilities on 1D barcodes. The PowerScan 9300 scanners’ mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading standards without sacrificing performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations. The PowerScan 9300 laser scanners are comprised of the corded PD9330 reader and the cordless PBT9300 / PM9300 imagers. The PBT9300 features Bluetooth® wireless technology and the PM9300 features Datalogic’s STAR Cordless System™ narrow band radio. All PowerScan 9300 models are available with reading optics for Auto Range (AR) to read distances up to 11.5 m / 37.0 ft on reflective codes.

DATALOGIC

Specifications

Scanners
Reading mode	1D
Scanning range/ Βάθος πεδίου	PBT9300: Code 39: PBT9300: Code 39, 7.5 mils: 1.5 to 42.0 cm / 0.6 to 16.5 in, 10 mils: 2.0 to 50.0 cm / 0.8 to 19.7 in, 20 mils: 2.0 to 110.0 cm / 0.8 to 43.3 in, 40 mils: 2.0 to 160.0 cm / 0.8 to 63.0 in, 40 mils: 2.0 to 160.0 cm / 0.8 to 63.0 in/ PBT9300 AR: Code 39: 7.5 mils: 9.0 to 50.0 cm / 3.5 to 19.7 in, 10 mils: 14.0 to 85.0 cm / 5.5 to 33.5 in, 15 mils: 15.0 to 155.0 cm / 5.9 to 61.0 in, 20 mils: 15.0 to 220.0 cm / 5.9 to 86.6 in, 40 mils: 20.0 to 340.0 cm / 7.9 to 133.9 in, 55 mils: 25.0 to 420.0 cm / 9.8 to 165.4 in/ Reflective Labels: Code 39: 70 mils: up to 9.0 m / 29.0 ft, 100 mils: up to 11.5 m / 37 ft.
Scan Rate Ρυθμός σάρωσης	PBT9300-XX: 104 +/- 12 scans/sec./ PBT9300-ARXX: 35 +/- 5 scans/sec.
Resolution	PBT93X0: 0.076 mm / 3 mils. PBT93X0 Auto Range: 0.190 mm / 7.5 mils.
Interfaces	Keyboard Wedge RS-232, USB: OEM USB; USB COM; USB HID Keyboard.Optional Ethernet (Standard, Industrial)
Dimensions	Cradle: 24.0 x 10.8 x 9.5 cm / 9.4 x 4.3 x 3.8 in PBT9300: 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in
Weight	Cradle: 380.0 g / 13.4 oz; PBT9300-XX: 405.0 g /14.2 oz PBT9300-ARXX: 435.0 g / 15.3 oz
Ambient light	Immune to light exposure in offices/facilities and direct exposure to sunlight
Sealing	IP65
Symbologies	PBT9300-XX: GS1 DataBar™ linear codes, UPC/EAN, UPC/ EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F. PBT9300-ARXX: GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 28, EAN 128, Code 39, Code 39 Full ASCII, Code 32, Codabar, Interleaved 2 of 5, Standard 2 of 5, MSI, Code 93
Additional features	DROP RESISTANCE Withstands 50 drops from 2.0 m / 6.5 ft onto a concrete surface/ ESD PROTECTION (AIR DISCHARGE) 20 kV/ HUMIDITY (NON-CONDENSING) 0 - 95%/ TEMPERATURE Operating: -20 to 50 °C / -4 to 122 °F/ Storage/Transport: -40 to 70 °C / -40 to 158 °F/Battery Type: Lithium-Ion, 2150 mAh; Charge Time: External Power: 4 Hours; Host Power: 10 hours/ READS PER CHARGE 50,000+ (continuous reading)/ CRADLE INDICATOR LEDS Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)/ CURRENT External Power: max. 10 W (charging) POT: max. 500 mA (charging)/ INPUT VOLTAGE 10 - 30 VDC, POT: 5 VDC +/- 10%
