MS831 1D Scanner 1D

MS831 1D Scanner 1D

Downloads

File	Size	Download
MS831_EN_HR_01.pdf	1.25MB	Download

Description

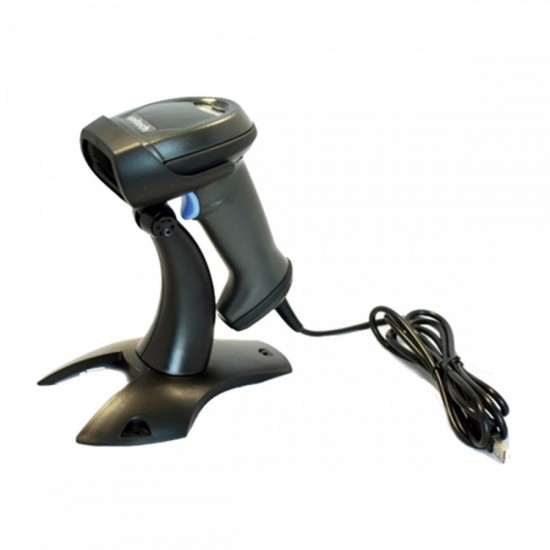

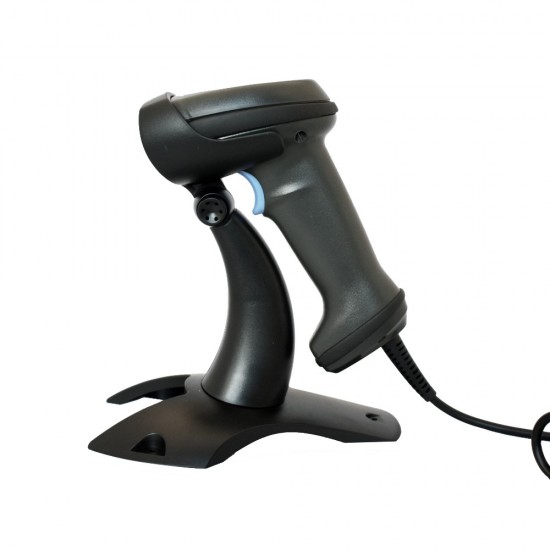

Scanner Unitech MS831 1D

The MS831 meets the requirements for various industrial applications by supporting trigger mode, continuous mode and auto-sensing mode. Moreover, this scanner has the capability to easily read 3 mil 39 barcodes. Ergonomic design, comes with large 2m USB cable and hands-free stand, quality 1D laser at great price! Multiple scanning modes; supports trigger mode, continuous mode and auto-sensing mode. Capability to easily read 3 mil 39 barcodes. Supply currents of 85 mA in active operation. Durable design, 1.5 meter drop test and IP52-rated.

UNITECH

Specifications

Scanners
Reading mode	1D Laser engine
Scanning range/ Βάθος πεδίου	Scanning Depth of field 0-280mm (0.33mm,PCS90%). Scan angle Yaw 65°, Rotation 30°, Pitch 55°
Scanning range/ Width of Field	220mm
Scan Rate Ρυθμός σάρωσης	300 scans/sec
Resolution	3 mil
Interfaces	USB-HID/USB-COM (USB cable 2m straight)
Dimensions	102 x 71x 177 mm
Weight	225g
Symbologies	EAN-8, EAN-13, UPC-A, UPC-E, CODE39, CODE128, EAN128, Codabar, Plessy, ITF 14 Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Post Code, etc.

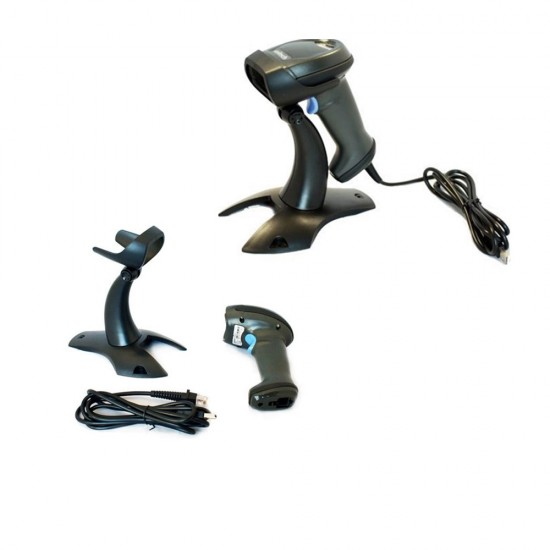

Additional features	Light Source: Visible Laser Diode 650nm/ Operation Voltage: DC 5V to 5V/ Operation mode: < 85 mA/ Standby mode : < 36 mA/ IP rate: IP42/ Operating Temperature: 0°C to 50°C/ Storage Temperature: -40°C to 70°C/ Relative Humidity: 5% to 95% relative humidity, non-condensing/ Mechanical Shock: 1.5 M/ Trigger Mode, Automatic Mode/ Accessories: Hands-free stand, USB cable 2m. IP52.
