MS836 1D Scanner 1D

MS836 1D Scanner 1D

Downloads

File	Size	Download
MS836_Brochure .pdf	1.13MB	Download

Description

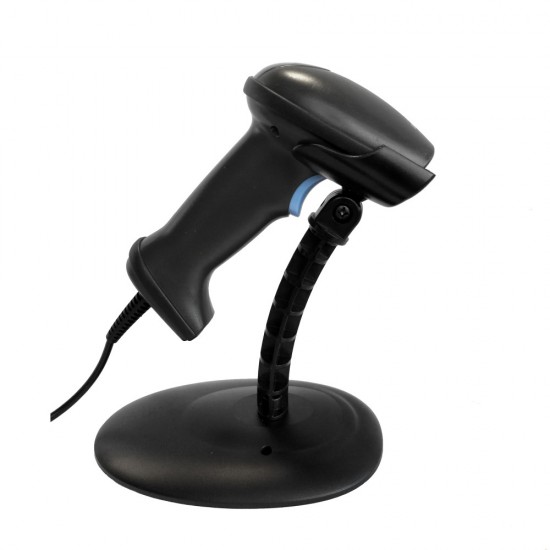

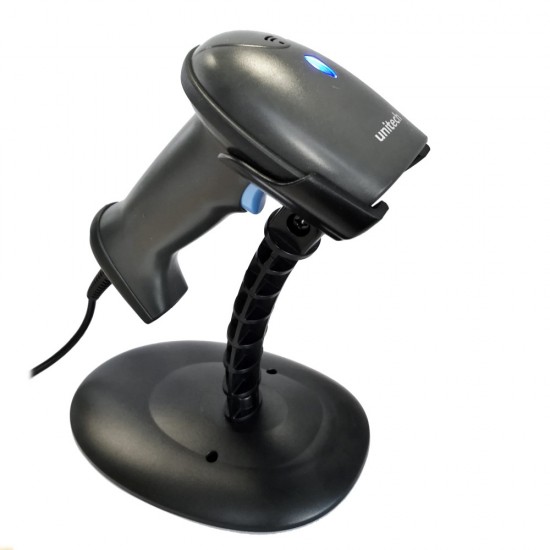

Scanner Unitech MS836 1D

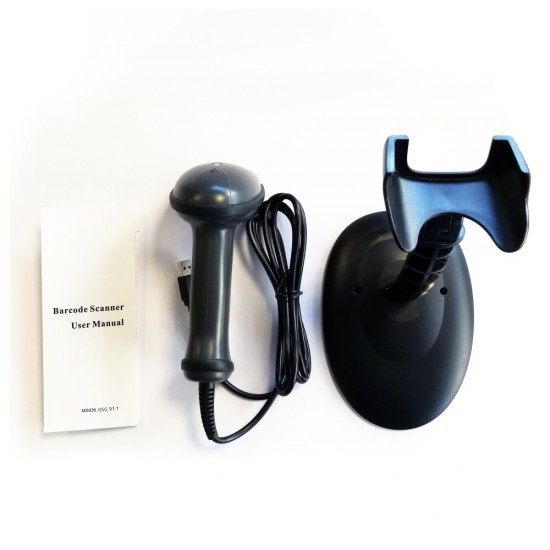

The MS836 reads 3 mil barcodes and is designed to meet your 1D barcode scanning needs at great pricing! All-in-one box; the MS836 comes standard with 1.9m USB cable, hands-free stand and 5-year no hassle warranty. Quality 1D laser at great price! Snappy performance, capability to easily read 3 mil 39 barcodes, including long labels up to 40 alphanumeric characters. Multiple scanning modes; supports trigger mode, presentation mode and auto-sensing mode. Supports print contrast reading up to 15%. Durable design1.5 meter drop test and IP42-rated.

UNITECH

Specifications

Scanners
Reading mode	1D Laser engine
Scanning range/ Βάθος πεδίου	250mm
Scanning range/ Width of Field	220mm
Scan Rate Ρυθμός σάρωσης	100 scans/sec
Resolution	3 mil
Interfaces	Interface USB (USB cable 1.9 m straight)
Dimensions	L95 mm x W70 mm x H160 mm
Weight	150g
Symbologies	1D: EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, GS1,etc
Additional features	Light Source: Visible Laser Diode 650nm/ Print contrast: 15% UPC / EAN 100%/ Indicator: Buzzer, LED/ Operation Voltage: DC 3V to 5V/ Operation mode: < 85 mA/ Standby mode : < 36 mA/ IP rate: IP42/ Operating Temperature: 0°C to 45°C/ Storage Temperature: -20°C to 60°C/ Relative Humidity: 5% to 85% relative humidity, non-condensing/ Mechanical Shock: 1.5 M/ Trigger Mode, Automatic Mode/ Accessories: Hands-free stand, USB cable.
