Heron HD3100 Scanner

Name: Heron HD3100 Scanner
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

Heron HD3100 Scanner

Downloads

File	Size	Download
heron_hd3100_english_a4.pdf	274.29KB	Download

Description

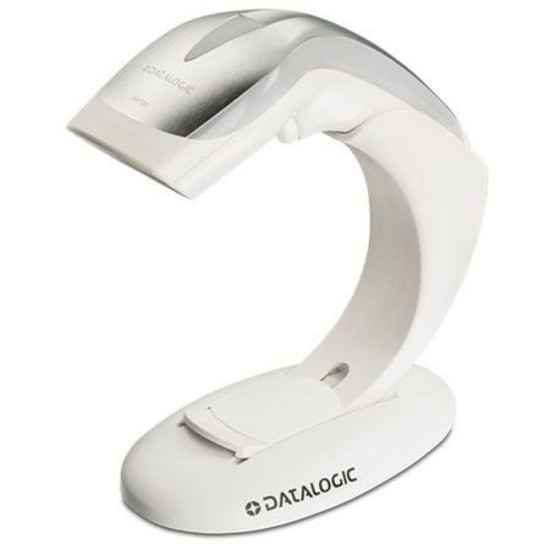

Scanner Datalogic Heron HD3100

Corded linear imager offering an innovative and unique design with illuminating colors and custom sounds. Reads 1D barcodes codes at high performance speed. The Heron™ HD3100 linear imager brings unmatched elegance along with the latest advanced technology to the modern point-of-sale. Automatic switching between handheld and hands-free operation. Multiple changing color LEDs on sides and top. Polyphonic speaker for a wide variety of choices for audio feedback. Easily customized with logo, top cover, and visual/audio feedback. Datalogic patented 'Green Spot' technology for aiming and good-read feedback. Innovative and unique design raises the bar for cutting-edge POS checkout experience.

DATALOGIC

Specifications

Scanners
Reading mode	1D / LINEAR CODES. Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
Scanning range/ Βάθος πεδίου	5 mils: 5.0 to 15.0 cm / 2.0 to 6.0 in 10 mils: 2.0 to 35.0 cm / 0.8 to 13.8 in 13 mils: 2.0 to 40.0 cm / 0.8 to 15.7 in 20 mils: 2.0 to 60.0 cm / 0.8 to 23.6 in
Scan Rate Ρυθμός σάρωσης	270 reads/sec
Resolution	0.100 mm / 4 mils
Interfaces	RS-232 / USB / Keyboard Wedge Multi-Interface
Dimensions	15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in
Weight	150.0 g / 5.3 oz
Ambient light	0 - 100,000 lux
Sealing	IP40
Symbologies	POSTAL CODES:China Post. STACKED CODES: GS1 DataBar Expanded Stacked; GS1 DataBar. Stacked; GS1 DataBar Stacked Omnidirectional
Additional features	DROP RESISTANCE Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. ESD PROTECTION (AIR DISCHARGE) 16 kV. HUMIDITY (NON-CONDENSING) 5 - 90%. TEMPERATURE Operating: 0 to 50 °C / 32 to 122 °F. Storage/Transport: -20 to 70 °C / -4 to 158 °F
