Scanner MS 5145 Eclipse 1D

Name: Scanner MS 5145 Eclipse 1D
Brand: HONEYWELL
Price: 1.00 EUR
Availability: InStock

Scanner MS 5145 Eclipse 1D

Downloads

File	Size	Download
eclipse-5145-general-duty-scanner-data-sheet-en.pdf	256.05KB	Download

Description

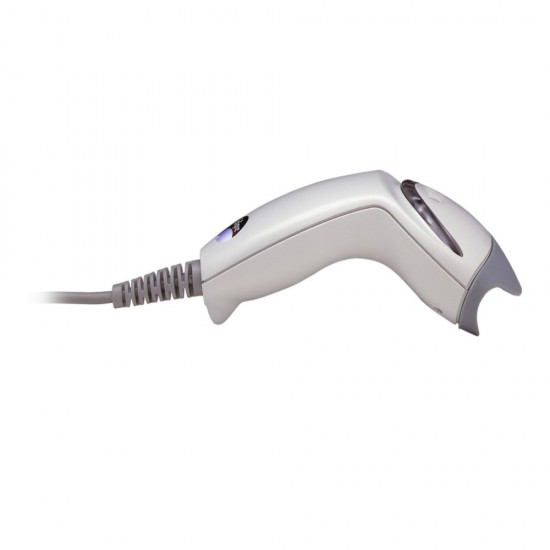

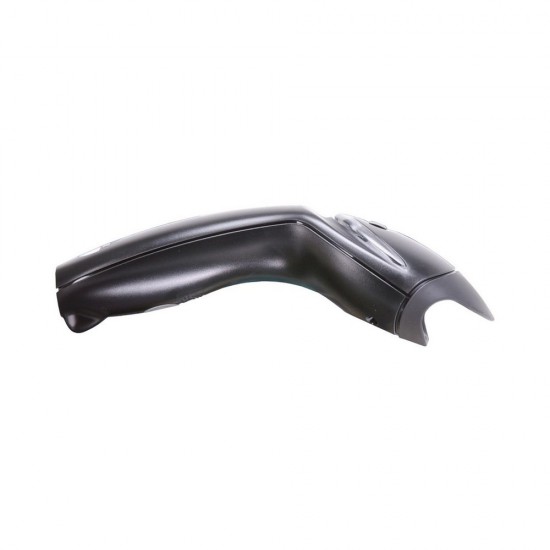

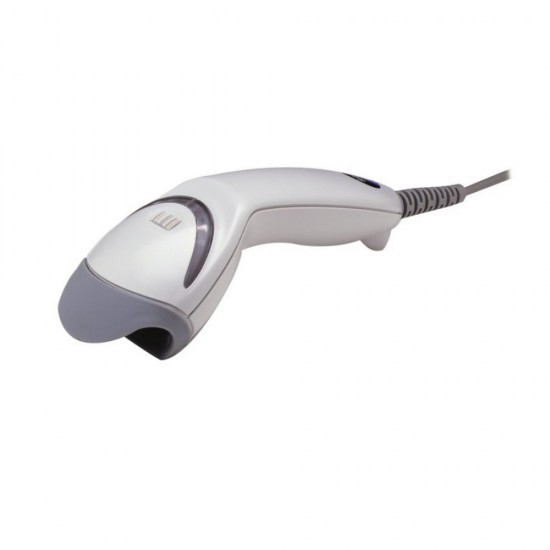

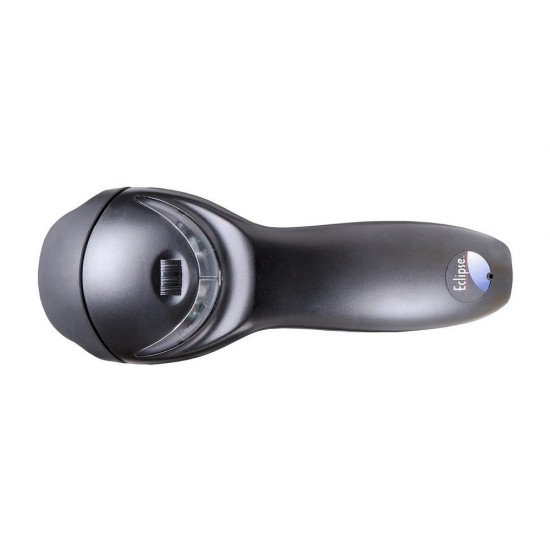

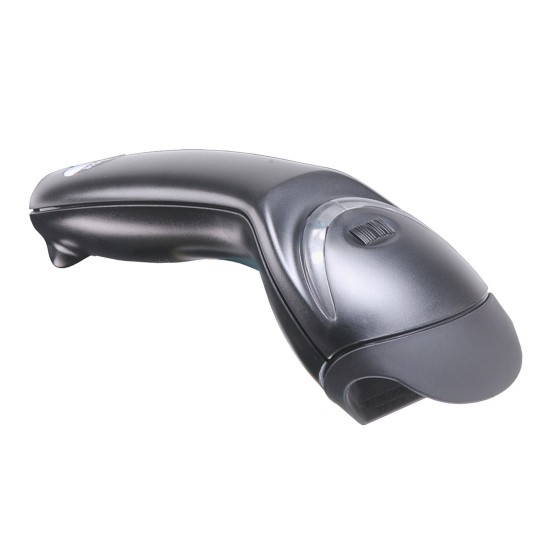

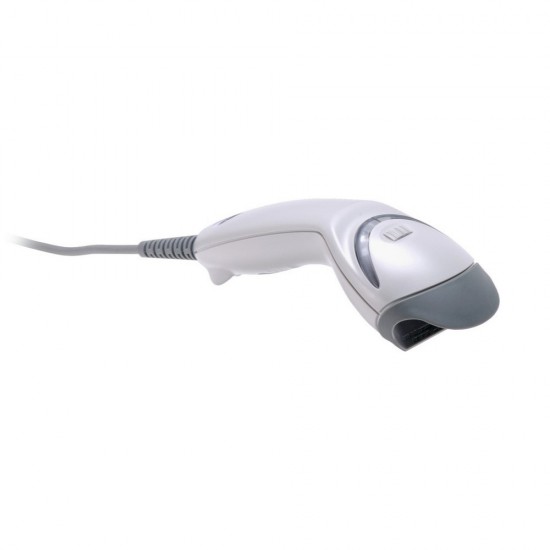

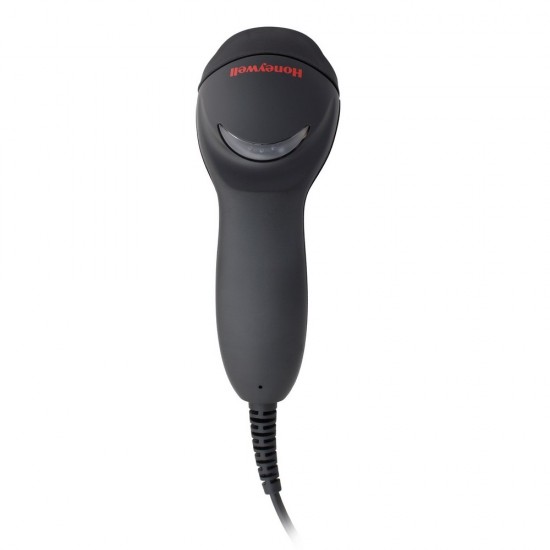

Scanner Honeywell MS5145 Eclipse 1D

Metrologic Eclipse is a single-line, handheld laser scanner. Equipped with Metrologic patented CodeGate technology, Eclipse can be used in a wide variety of applications. Metrologic Eclipse is a single-line, handheld laser scanner. Equipped with Metrologic patented CodeGate technology, Eclipse can be used in a wide variety of applications. CodeGate technology allows the user to easily target the desired bar code and complete the data transmission with a simple press of a button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.

HONEYWELL

Specifications

Scanners
Reading mode	1D
Scanning range/ Βάθος πεδίου	0 mm - 76 mm (0˝ - 3.0˝)/ 0 mm - 108 mm (0˝ - 4.0˝) 0 mm - 140 mm (0˝ - 5.5˝)/ 25 mm - 178 mm (1.0˝ - 7.0˝)
Scanning range/ Width of Field	5.2 mil/ 7.5 mil / 10.4 mil /13 mil / 26 mil
Scan Rate Ρυθμός σάρωσης	72 scan lines per second
Resolution	4 mil (0.102 mm)
Interfaces	USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Dimensions	169 mm x 63 mm x 51 mm (6.7˝ x 2.5˝ 2.0˝)
Weight	100 g (3.5 oz)
Ambient light	4842 Lux
Sealing	Sealed to resist airborne particulate contaminants
Symbologies	Reads standard 1D and GS1 DataBar symbologies.
Additional features	Input Voltage 5 VDC ± 0.25 V. Operating Power 675 mW (125 mA @ 5 V) Operating Temperature 0°C to 40°C (32°F to 104°F). Storage Temperature -40°C to 60°C (-40°F to 140°F). Humidity 5% to 95% relative humidity, non-condensing. Drop Designed to withstand 1.5 m (5´) drops . Warranty 3 year factory warranty
