MJ-X6 Pocket Scanner

Downloads

File	Size	Download
X6 212x180mm EN.pdf	950.87KB	Download

Description

Pocket Scanner MS920 1D/2D

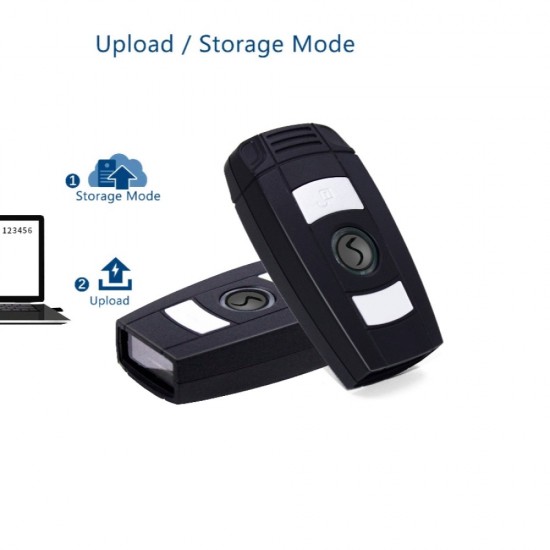

Mini Bluetooth Barcode Scanner wired, wireless and bluetooth triple-mode freely switching. Large capacity storage, safe and reliable. Stores barcodes more than 50000pcs off-line scanning. Unique power management system, ultra-long standby time. Rich symbologies supported. Adopting imported trigger button, long lifespan, fitting perfectly in your hand for comfortable use. Support Android/IOS devices/Windows. Support HID, SPP, BLE protocol. Mini size, fashion design and portable. Ultra low power consumption and standby time setup available. Bluetooth transmission distance 15m indoor. Supports upload data and charge the battery via USB cable at the same time.

ICS

Specifications

Scanners
Reading mode	2D image barcode scanner
Scanning range/ Βάθος πεδίου	6-30cm
Resolution	640x480 sensor/ 4 mil

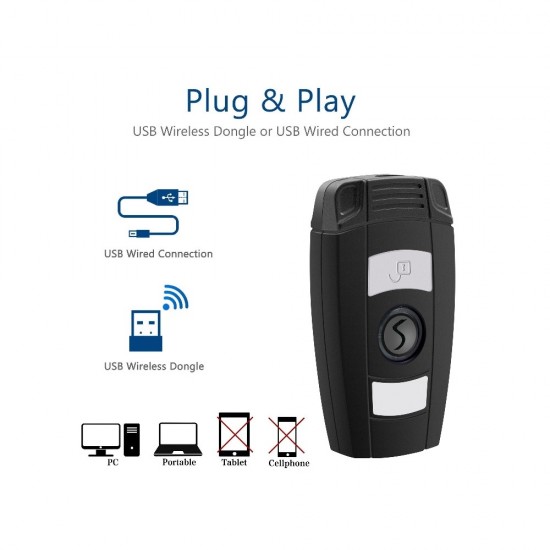

Interfaces	USB cable. Wireless protoco bluetooth 2.4G. Bluetooth version: Bluetooth 4.1Module.
Dimensions	85 x 36 x 15mm
Weight	95 g (with battery)
Ambient light	LED

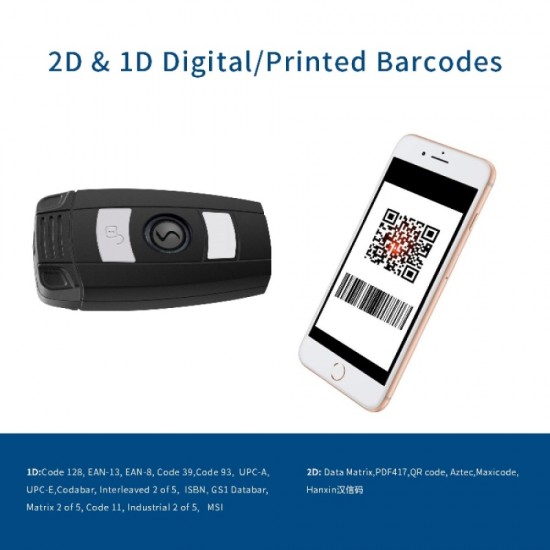

Symbologies	1D: Codabar,Code 11, Code93,MSI,Code 128,UCC/EAN-128,Code 39,EAN-8, EAN-13,UPC-A,ISBN,Industrial 25,Interleaved 25, Standard 25,2/5 Matrix, 2D: QR,DataMatrix,PDF417,Aztec,Hanxin, Micro PDF417 (option)

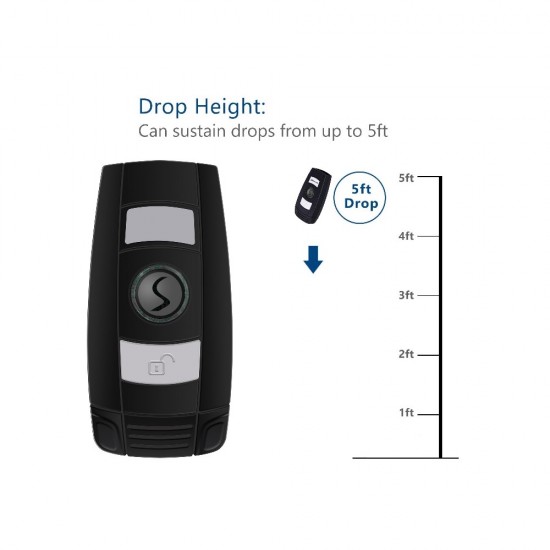

Additional features	Battery capacity：650mA. Charging voltage/current: 5V/1A. Endurance：1D≤12H 2D≤8H 5 sec/scan. Charge time：≤2hours. Standby: >30days.Working Temperature：32°F to 104°F/0°C to 40°C. Storage Temperature：-40°F to 140°F/-40°C to 80°C. Humidity：5% to 95% relative humidity. Ruggedness: Resist about many times drops from 1.5m to concrete ground.
