Downloads

File Size Download
Datasheet-IG380.pdf 2.52MB Download

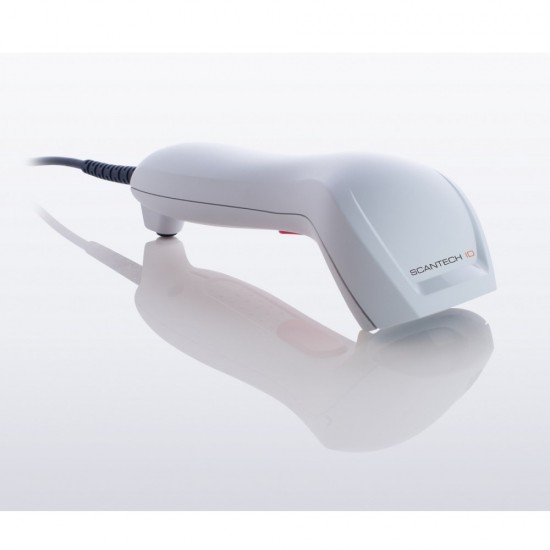

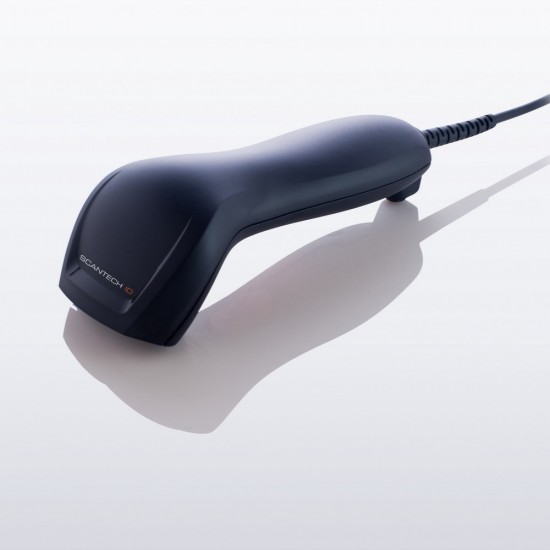

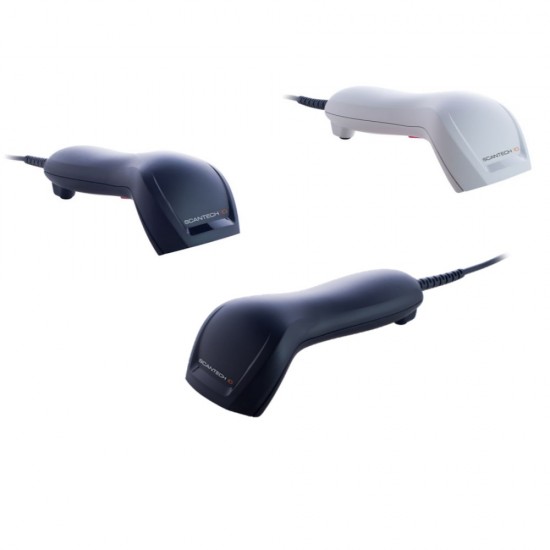

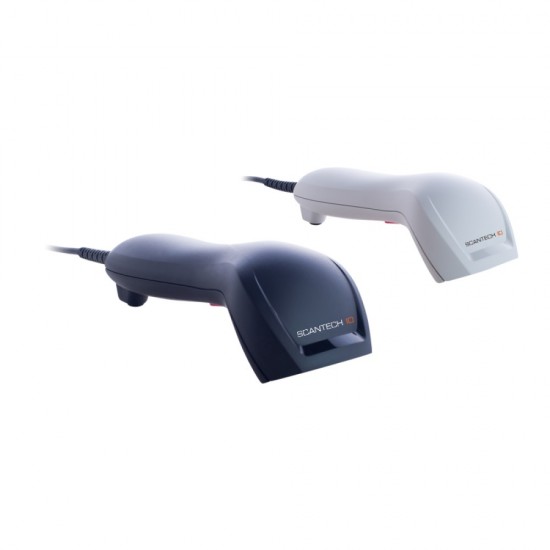

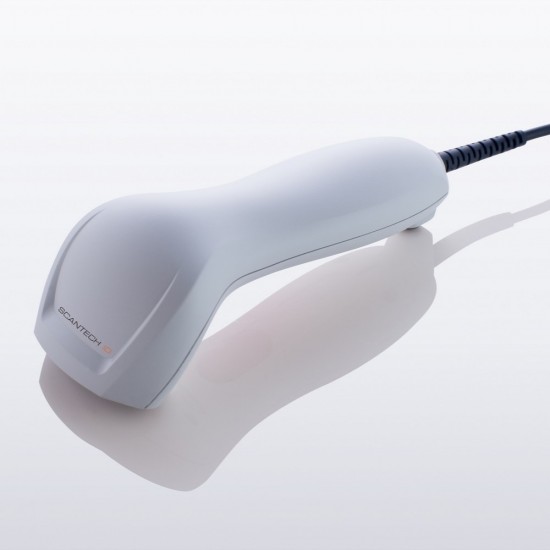

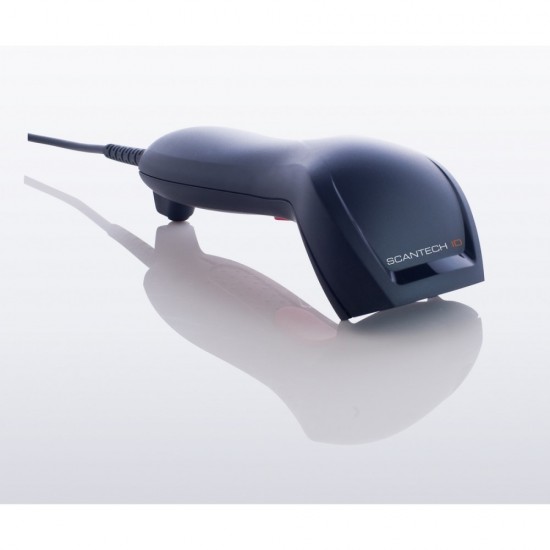

Scanner Scantech IG380 1D/2D

IG380 linear imager barcode scanner brings unmatched performance along with the latest advanced technology to the point-of-sale checkout operations, and it is a reliable bar code reader suitable for a wide range of environments. The best price-performance ratio solution in the market for retail and light industrial applications. Excellent Reading Performance for major 1D and 2D bar codes, e.g. of QR codes, even with 30% damage or one finder pattern missing. The best solution for retail and POS applications. Support multiple Interface options, USB HID, Virtual COM and RS-232. Facilitates both contact and air 16KV Electro-Static discharge. Designed as IP41 sealing protection. A stand option can be ordered to facilitate hand-free reading options. A vibration mode when scanning is optionally available. Applicable on Android tablet or smart phone with optional cable.

Specifications

Scanners
Reading mode 1D/2D
Scanning range/ Βάθος πεδίου Reading Distance 250mm@20mil/0.5mm, PCS90%. Field of view Horizontal –55°, Vertical –35°
Scanning range/ Width of Field 3mil Code39: 40~ 90mm/ 20mil Data Matrix 30 ~ 160mm.
Scan Rate Ρυθμός σάρωσης 60 fps (at full resolution)
Resolution 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QRCode
Interfaces USB / RS-232
Dimensions 65.01mm W x 168.01mm D x 54.92mm H
Weight 90g/ cable 60g
Ambient light 100,000 Lux. Maximum
Symbologies 1D Symbologies: UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, Code 39, Code 128, Interleaved 25, Industrial 25, Matrix 25, Codabar/NW7, Code 93, China Post, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended. 2D Symbologies: Data Matrix, PDF 417, QR Code,Aztec,Micro PDF417,Micro QRCode,Dotcode Option: Maxicode, Han Xin Code.
Additional features Operating Temp.0°C to 50°C (32°F to 122°F)/ Storage Temp. -20°C to 70°C (-4°F to 158°F)/ Relative Humidity 20% to 95% (Non-condensing)/ Drop:59.05 inches (180cm) drop on Concrete Surface
