SD700 Scanner linear imager

SD700 Scanner linear imager
SD700 Scanner linear imager
SD700 Scanner linear imager
SD700 Scanner linear imager
SD700 Scanner linear imager
SD700 Scanner linear imager
SD700 Scanner linear imager

Downloads

File Size Download
sd-700-sd_700.pdf 831.64KB Download

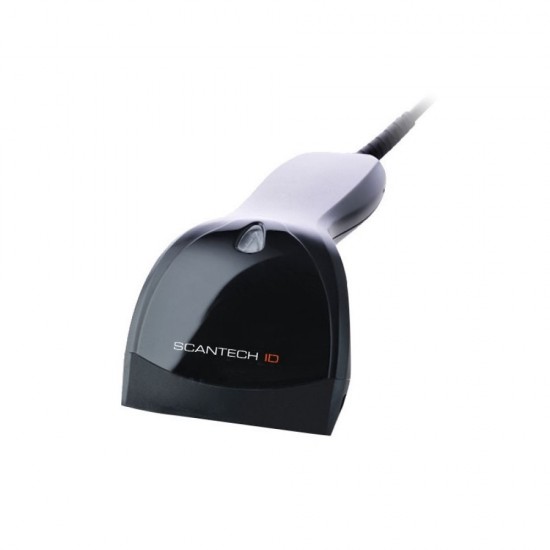

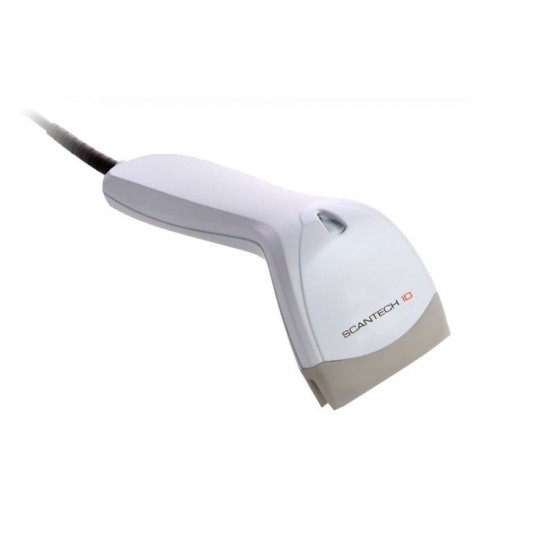

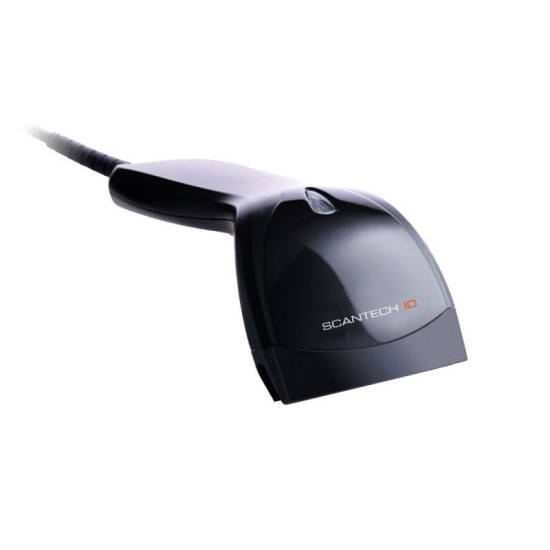

Handheld Scanner Linear Imager SD700

SD700 is a brand new ultra slim Handheld linear imaging contact reader represents for customers who require a cost effective solution for close contact to middle range bar code reading without sacrificing quality and performance. Aside from the characteristics of “high performance, high sensitivities and high stability” inherited from Champtek previous products, SD700 provides the guarantee of excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes. Ultra slim handle, lightweight and low energy consumption. Reading 8cm barcode at windows and reading depth up to 10cm. Support minimum resolution 3 mil/0.076 mm. Multiple Interface options, USB / RS-232 / Keyboard Wedge. Supports GS1 DataBar™ linear codes

Specifications

Scanners
Reading mode 1D
Scanning range/ Βάθος πεδίου Up to 100mm@20mil,PCS90%,Code39
Scanning range/ Width of Field 80 mm at window
Scan Rate Ρυθμός σάρωσης 200 scans per second ±10%
Resolution 3mil /0.076mm@PCS90%
Interfaces USB / RS-232 / Keyboard Wedge
Dimensions 79 X 45 X 157 mm
Weight 85g / 3oz
Ambient light 20,000 Lux Max
Symbologies Automatically discriminates major standard 1D bar codes, include GS1 databar - Omnidirectional, Expanded and Limited
Additional features Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Relative Humidity 20% to 95% (Non-condensing/ Drop: 25,000 times/ minimum (30 times/ min @ 500g/ 90°) 47.24 inches (120cm) drop on Concrete Surface.
