Wi-Fi Base Station

Name: Wi-Fi Base Station
Brand: SUNMI
Availability: InStock

Wi-Fi Base Station

Downloads

File	Size	Download
w1s-sunmi-ics.pdf	259.48KB	Download

Description

SUNMI 4G Wi-Fi Base Station

Keeps every store's network available. Dual channel backup model, "second level" switching in case of disability of any channel, ensure the network is available. When the 4G network is working, base station can automatically forbid the request of unauthorized devices. By pressing SUNMI Link button (the orange button), SUNMI device nearby can automatically access to the network. When the network is busy, the intelligent bandwidth allocation strategy can ensure the priority of the specified device in the use of bandwidth.

SUNMI

Specifications

Device
CPU of device	High-performance 4-core processor
Operating System Software	Linux
Network	Wi-Fi: 2.4GHz Wi-Fi 400Mbps, 5GHz Wi-Fi 867Mbps, 802.11 a/b/g/n/ac, 1300Mbps (400Mpbs + 867Mbps) Support band steering
Memory of device	Flash 128MB/ RAM 512MB

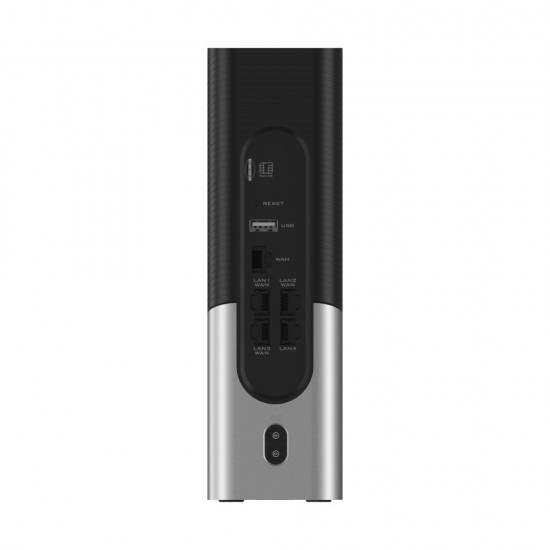

Ports	1 x USB 2.0. 1 x WAN. 3 x LAN/WAN. 1 x LAN
Device dimension	215x140x64mm
Additional device features	Button: SUNMI Link Button/ Reset Button. 4G: Plug-in card/ Communications standard: TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, GSM. Antenna: 4 x internal high gain antenna. Indicator Light: RGB 3-color light. Power: Built-in industrial grade power module 100-240V～50/60Hz 0.5A. Operating Temperature -10°C-45°C. Storage Temperature -40°C-70°C.
