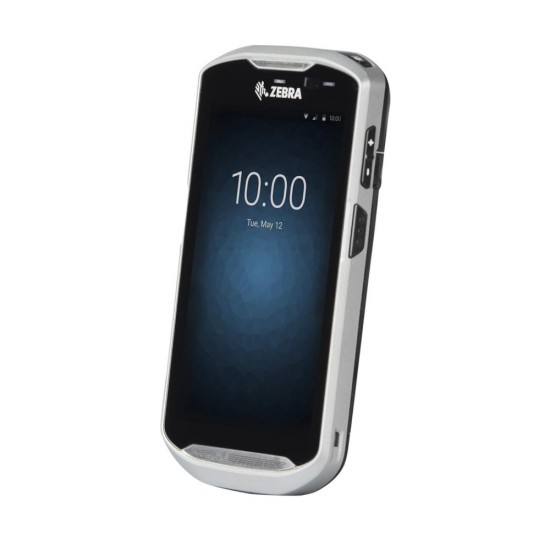

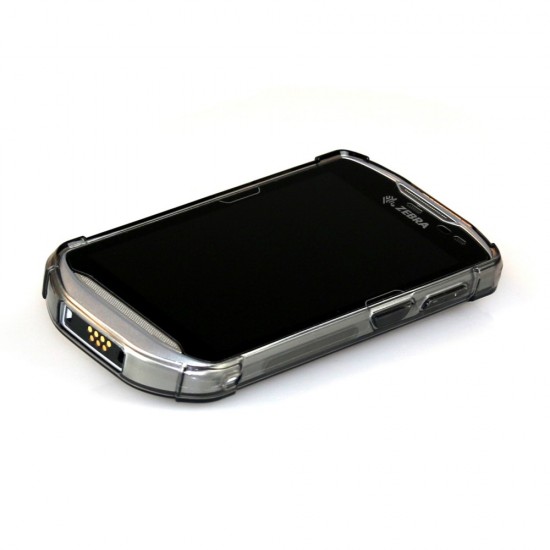

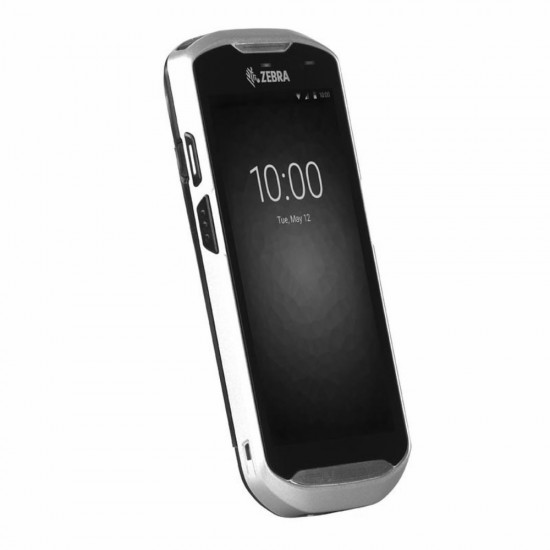

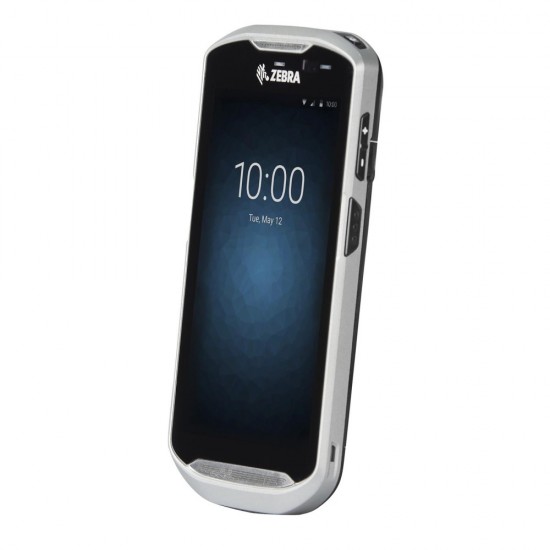

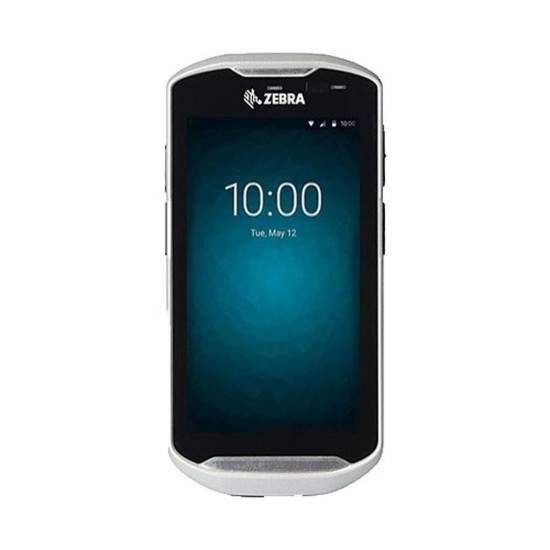

Mobile Computers Zebra TC51 & TC56

Great design is more than just aesthetics it's functionality too. The Zebra TC51/TC56 Series mobile computers are designed to perform beautifully in the enterprise, making the role of your workforce easier and more productive. The fastest, most dependable wireless connections inside and outside the four walls. Unmatched processing power to do it all with power efficiencies. Maximum display size with advanced technology for graphics-intensive intuitive applications. Ultimate scanning performance of 1D/2D barcodes even if they are damaged, dirty and poorly printed 13MP camera for ultrahigh resolution photos. Unsurpassed security with Zebra’s Mobility Extensions (Mx). Mobility DNA, a suite of mobility enabling applications, development tools and utilities. All models FIPS Validated and TAA Compliant.


Specifications

Mobile Terminals
Monitor pda 5.0 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable, optically bonded to touch panel.Dual mode capacitive touch with stylus or bare or gloved fingertip input (conductive stylus sold separately). Corning Gorilla Glass.LED backlight.
Operation System Android 7.0 Nougat.
CPU pda Snapdragon 650 64-bit hexa-core 1.8 GHz ARM Cortex A72, power optimization.
Memory pda Standard: 2GB RAM/16GB Flash/ Optional: 4GB RAM/32GB Flash/ User accessible MicroSD up to 32GB SDHC and up to 256 GB SDXC.
Communication WWAN, WLAN, WPAN (Bluetooth), Bluetooth Class 2, Bluetooth v4.1 Smart Technology. Bluetooth Wideband support HFPv1.6. Bluetooth v1.4 Low Energy (LE).
Interface-Ports 1 nano SIM slot (TC56 only)
Barcode scanner SE4710 imager (1D and 2D) with extraordinary range: Scan range – Code 39 barcode: 20 Mil: 1.8 in. to 32.0 in./4.5 cm to 81.3 cm. 3 Mil: 3.1 in. to 5.6 in./7.9 cm to 14.2 cm.
Battery pda Rechargeable Li-Ion PowerPrecision+ Standard capacity 4300mAh typical/4030mAh minimum. Improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast USB Charging (up to 500mA).
Keyboard On-screen keypad and enterprise keyboard.
Sealing IP67 and IP65
Resistance Multiple 4 ft./1.2 m to tile over concrete over -10°C to 50°C (14°F to 122°F). Multiple 6ft. drops to concrete with the rugged boot accessory per MIL STD 810 G/ Operating Temp. -4°F to 122°F/-20°C to 50°C (RH 5% to 95% non-condensing)/ Storage Temp. -40°F to 158°F/-40°C to 70°C/ Humidity 5% to 85% non-condensing.
Dimensions/ Weight pda 6.1 in. L x 2.9 in. W x 0.73 in. H, 155 mm L x 75.5 mm W x 18.6 mm H/ Weight: 8.8 oz./249 g with battery.
Additional features mobile terminals Camera: Rear 13 MP autofocus; f/2.4 aperture; rear camera flash LED generates balanced white light; supports Torch mode/ NFC: ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via UICC and Host.
