TC70 & TC75 Mobile Computers

TC70 & TC75 Mobile Computers

Downloads

File	Size	Download
tc75series-product-specification-sheet-A4.pdf	1.07MB	Download

Description
Video

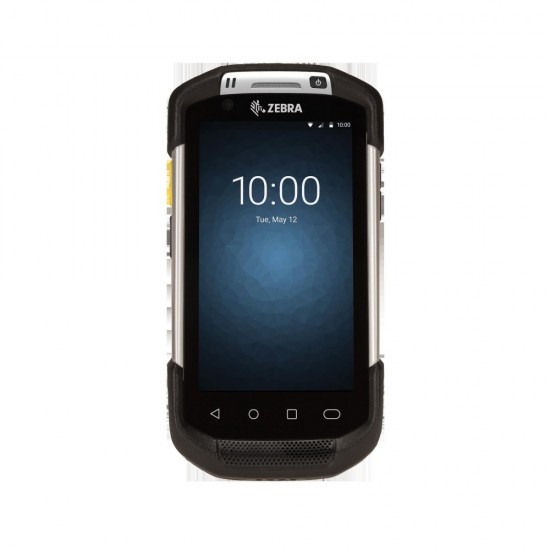

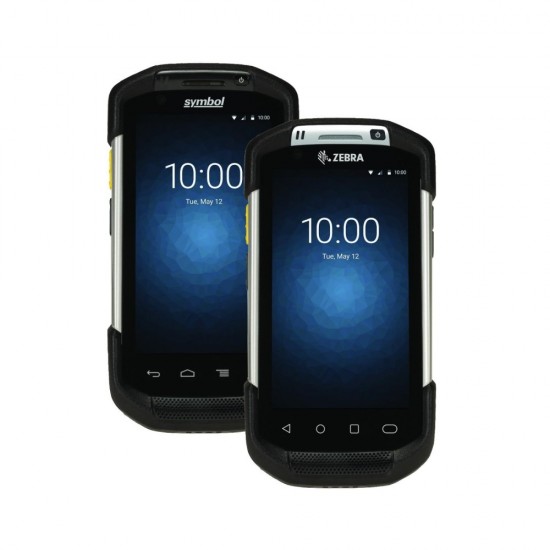

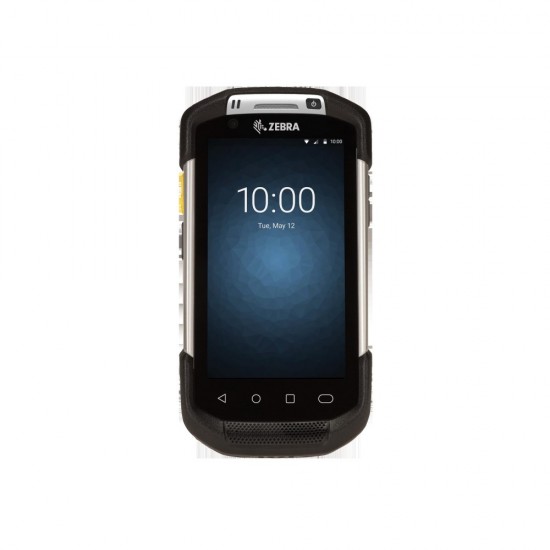

Mobile Touch Computer Zebra TC70 & TC75

Enterprise-class handheld computer that survive life in the field or shop floor, communicate and access information in real time. Rugged and ready for every day enterprise use inside and outside the four walls. Android™ operating systems. 4G/LTE (TC75 Series Only) and 802.11a/b/g/n connectivity for anywhere, anytime access to information. Zebra's Mobility Extensions (Mx), a layer of features that transform Android from a consumer operating system (OS) to a true enterprise class OS. Mobility DNA, a suite of mobility enabling applications, development tools and utilities. Most advanced scan engine with longer range date capture capability.

ZEBRA

Specifications

Mobile Terminals
Monitor pda	4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel. Dual mode capacitive touch with stylus or bare or gloved fingertip input (conductive stylus sold separately); Corning Gorilla Glass.LED backlight.
Operation System	TC75: Android 5.1 Lollipop with Zebra’s Mobility Extensions (Mx). TC75x: Android 7.1 (Nougat) with Mx
CPU pda	TC75: 1.7 GHz dual core processor TC75x: 1.8 GHz hex core 64 bit processor
Memory pda	TC75: 1 GB RAM / 8 GB Flash pSLC/ TC75x: 2 GB RAM / 16 GB Flash pSLC or 4 GB RAM /32 GB Flash pSLC.
Communication	Class 2, Bluetooth v4.0 (Bluetooth® Smart technology) BT Wideband support HFPv1.6. Bluetooth v4.1 LE (TC75x only)
Interface-Ports	USB 2.0 High Speed (host and client); WLAN/ SIM: TC75: 2 Nano SIM slot (4FF); 1 Mini SIM/SAM slot (2FF) TC75x: 2 Nano SIM slot (4FF); 1 Mini SIM (2FF)/ Expansion Slot TC75: User accessible MicroSD up to 32GB SDHC and up to 64 GB SDXC/ TC75x: User accessible MicroSD up to 32GB SDHC and up to 128 GB SDXC
Barcode scanner	SE4750 imager (1D and 2D); extraordinary range: Scan range – Code 39 barcode: 20 Mil: 1.6 in to 36.3 in/4.1 cm to 92.2cm 3 Mil: 2.8 in to 6.2 in/7.1 cm to 15.9 cm
Battery pda	PowerPrecision/ PowerPrecision+1: Improved battery technology for advanced state of health and real-time visibility into battery metrics for better battery management Li-Ion 3.7 V, 4620 mAh typical; battery swap function.
Keyboard	On-screen keypad; Enterprise Keyboard
Sealing	IP65 and IP67
Resistance	Multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G, Multiple 6 ft./1.8 m drop to concrete across full operating temperature range/ Operating Temp.-4° F to 122° F/-20° C to 50°C/ Storage Temp.-40° F to 158° F/-40° C to 70° C/ Humidity: 5% to 85% non-condensing.
Dimensions/ Weight pda	6.3 in. L x 3.3 in. W x 1.1 in. D/161 mm L x 84 mm W x 28 mm DD/ Weight: 13.3 oz./376 g.
Additional features mobile terminals	Camera:Rear 8 MP autofocus; f/2.4 aperture (TC75) Rear – 13MP autofocus (TC75x), Front 1.3 MP fixed focus (TC75/TC75x)/ NFC:TC75: Type A and B, Felica and ISO 15693 cards. P2P mode and Card Emulation via UICC and Host TC75X: ISO 14443 Type A and B; Felica, and ISO 15693 cards. P2P mode and Card Emulation via UICC and Host/ Voice and Audio:Three microphone support with noise cancellation; vibrate alert; speaker; Bluetooth wireless headset support, High quality speaker phone; PTT headset support; Cellular circuit switch voice; HD Voice/Electrostatic Discharge (ESD): +/-15kVdc air discharge, +/-8kVdc direct discharge, +/-8kVdc indirect discharge.
