TC72 & TC77 Mobile Computer

TC72 & TC77 Mobile Computer

Downloads

File	Size	Download
tc72-tc77-specification-sheet-a4-en-us.pdf	1.02MB	Download

Description
Video

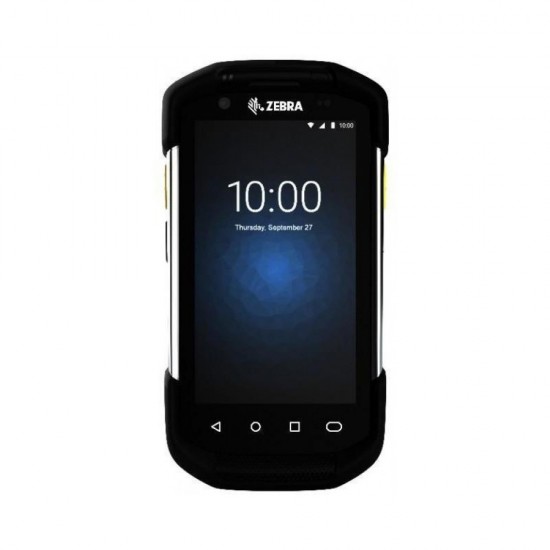

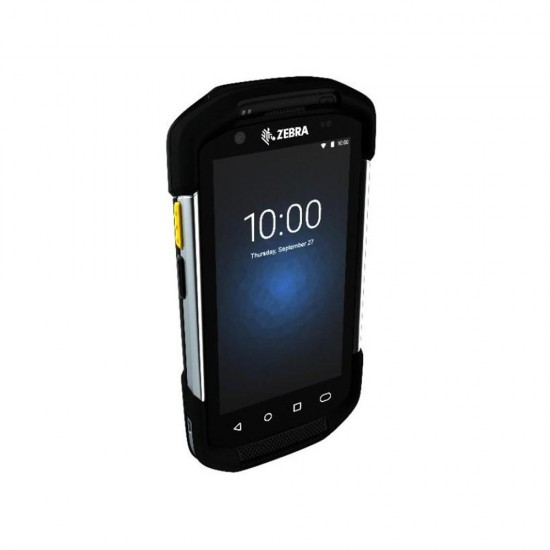

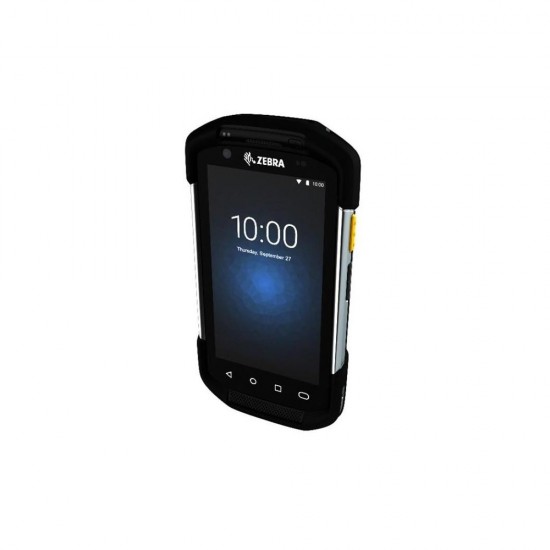

Mobile Touch Computer Zebra TC72 & TC77

The TC72 and TC77 Android Touch Computers create the ultimate ultra-rugged all-touch computer for all workers inside or outside the four walls a smartphone experience for maximum simplicity. Maximum computing power, rich locationing support, power-saving, faster WiFi connections, superior barcode capture, high-quality voice, 13 MP colour rear camera for photos and videos front-facing 5 MP colour camera for video calls and more. User-generated soft keys for one-touch access to the most frequently used features and more. Withstand years of the toughest conditions, virtually waterproof, drop-proof, dust-proof and tumble-proof. Gorilla Glass touch panel. Imager window that offer maximum scratch-resistance and shatter proofing.

ZEBRA

Specifications

Mobile Terminals
Monitor pda	4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel. Corning Gorilla Glass.Dual mode capacitive touch with stylus, finger or gloved fingertip input (conductive stylus sold separately). Screen Protector and Rain modes. LED backlight.
Operation System	Android 8.1 Oreo
CPU pda	Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Memory pda	4 GB RAM/32 GB Flash pSLC
Communication	Internet Protocol IPv4 and IPv6/ TC72: WLAN, WPAN (Bluetooth)/ TC77: WWAN (cellular, WLAN (WiFi), WPAN (Bluetooth); USB 2.0 High Speed (host and client)/ Bluetooth Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE).
Barcode scanner	SE4750 imager (1D and 2D); extraordinary range: Scan range Code 39 barcode: 20 Mil: 1.6 in to 36.3 in/4.1 cm to 92.2 cm/ 3 Mil: 2.8 in to 6.2 in/7.1 cm to 15.9 cm Digimarc Symbology support.
Battery pda	Li-Ion 3.7 V, 4620 mAh. PowerPrecision/ PowerPrecision+: Improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management
Keyboard	On-screen keypad and Enterprise Keyboard
Sealing	IP65 and IP67
Resistance	Multiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G/ Operating Temp.-4°F to 122° F/-20° C to 50°C/ Storage Temp. -40°F to 158°F/-40°C to 70°C/ Humidity 5% to 90% non-condensing.
Dimensions/ Weight pda	6.3 in. L x 3.3 in. W x 1.1 in. D, 161 mm L x 84 mm W x 28 mm D/ Weight 13.3 oz./376 g
Additional features mobile terminals	Camera: 5MP fixed focus Rear 13 MP autofocus; f/2.4 aperture; flash LED generates balanced white light; supports Torch mode; 4K video with image stabilization. Camera supports barcode scanning/ NFC: ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host SAM support for Calypso, Felica and Mifare technology. TC77 only: Dual SAM support on TC77 SAM SKU.
