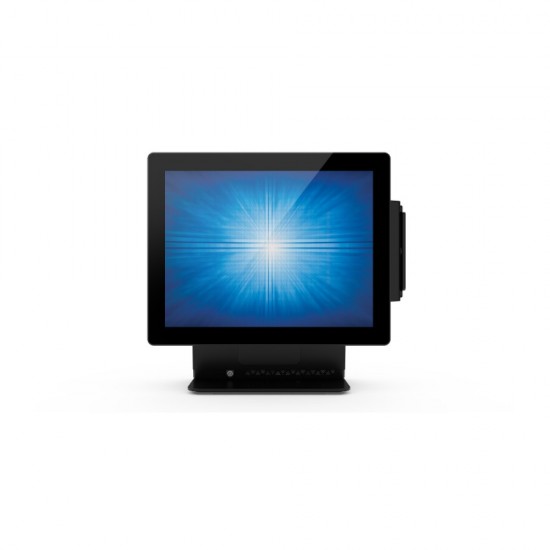

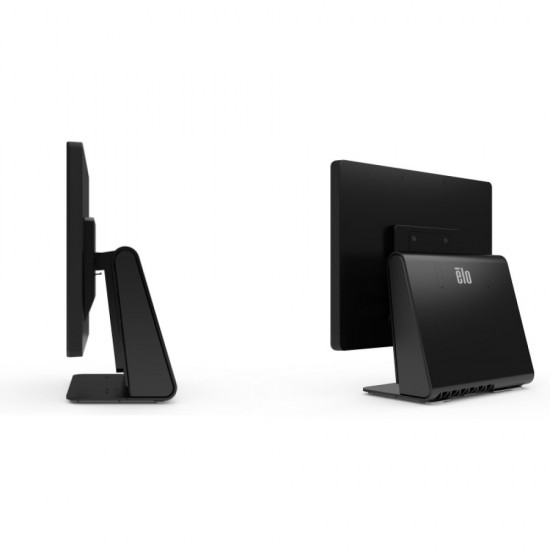

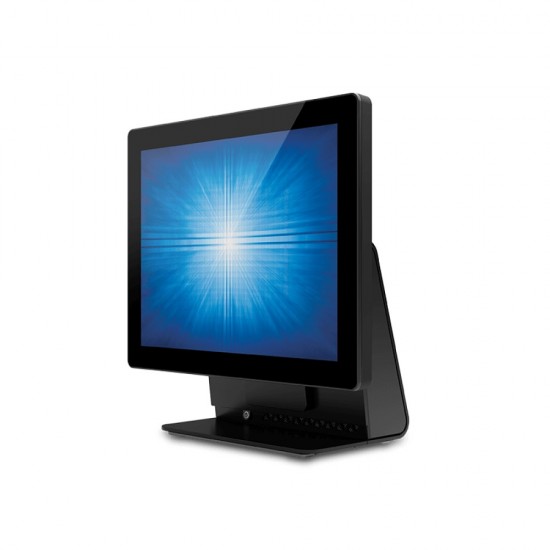

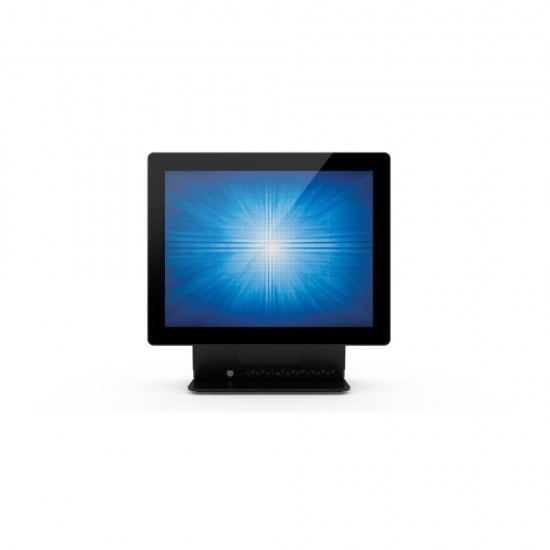

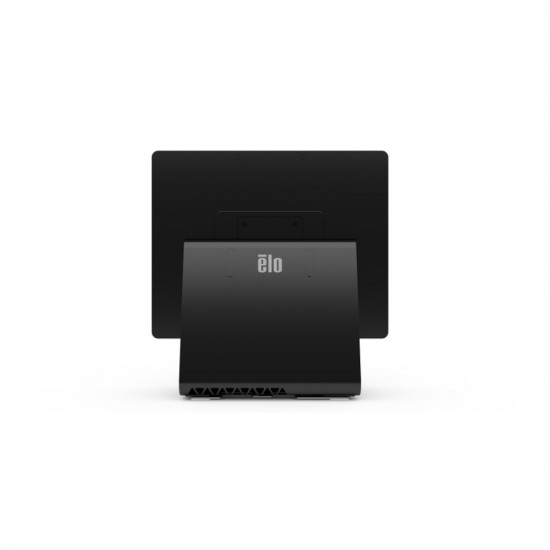

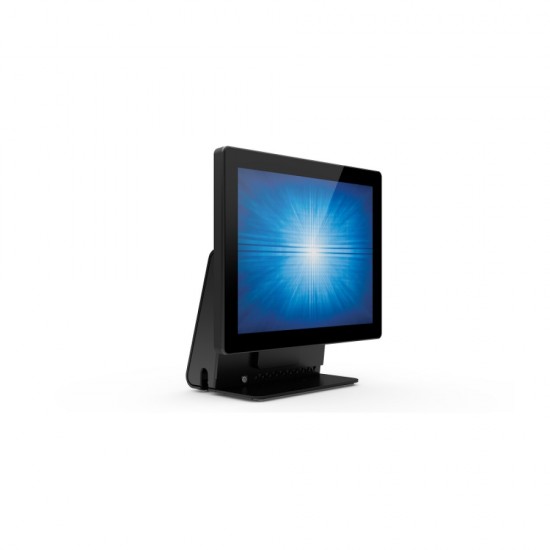

Touch POS ELO 15E3 15'' intel core i3

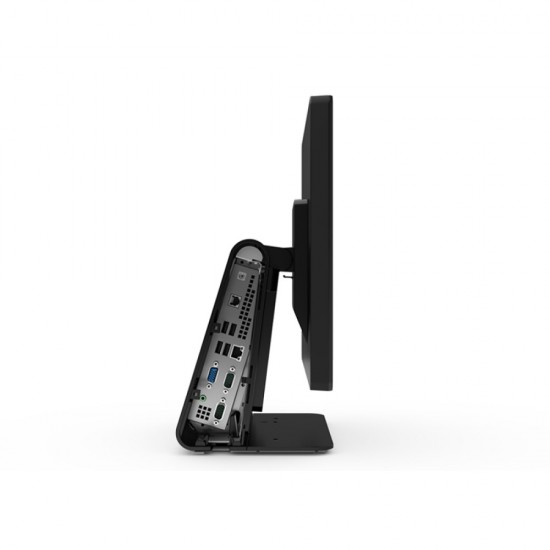

All-in-One Touchscreen Computer. The Elo E-Series 15-inch 4:3 touchscreen computer is a commercial-grade solution powered by Intel Core™ i3 processor to provide top-notch performance in a compact form factor. With a rugged design and fan-less operation, the E-Series is ideally suited for use in any retail or hospitality environment. The E-Series AiO is designed for convenient serviceability with easy access to main components and secure mounting to a wall or pole or placed on top of a cash drawer. The 15E3 supports third party peripherals through four (4) USB and two (2) serial ports and has a VGA output to add an optional customer-facing display for advertising or customer communication. The connections are all hidden from view in the I/O bay, offering a clean, modern look while avoiding accidental disconnection. Rigorously tested and backed by a three-year warranty, the E-Series delivers superior quality and reliability. The fan-less cooling design promotes a noise-free, dust-free and particulate-free operation, allowing you to maximize uptime and performance.

ELO

Specifications

Touch Systems
Monitor	15.6" diagonal, active matrix TFT LED LCD
CPU	Intel Core™ i3-8100T Processor (6M Smart Cache, 3.10 GHz)
Memory	4GB 2400MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
Operating System	No OS. Microsoft Windows 10 IoT Enterprise LTSB 64-bit
Resolution	1366 x 768 @ 60Hz
USB Ports	3 x USB 3.0 (1 on display head, 2 on I/O); 2 x USB 2.0 (on I/O); 4 x Micro USB 2.0 (on display head)
Serial Ports	2 x RJ45
Ethernet Ports	1 x LAN RJ45 (Gigabit
Additional Ports	Powered USB 1 x 24V on I/O; 2 x 12V on I/O. Cash Drawer Port 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal swtich). Additional Video Out 1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port). Audio 2 x 2W internal speakers; 1 x 3.5 mm headset jack.
Power supply	External 24VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 180W
Temperature/ Humidity	Operating Temperature: 0°C to 35°C / 32°F to 95°F/ Storage Temperature: -20°C to 60°C / -4°F to 140°F. Humidity: Operating: 20% to 80%. Storage: 5% to 95%
Dimensions/ Weight	Dimensions with Stand 386.2 x 369.3 x 221.2mm. Dimensions without Stand: 386.2 x 248.9 x 73.3mm Weight with stand: 4.9kg. Without Stand: 2.9kg

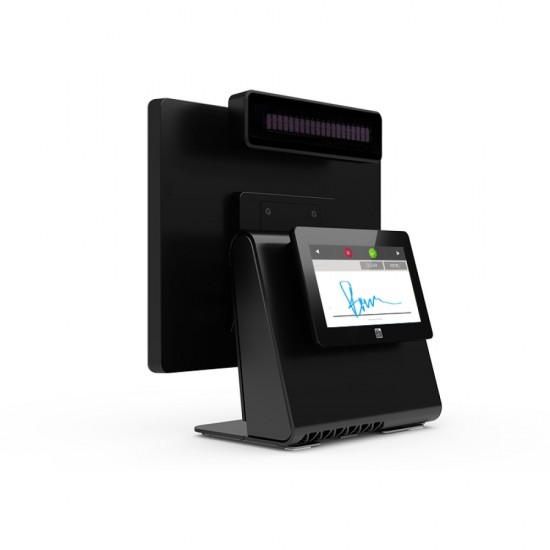

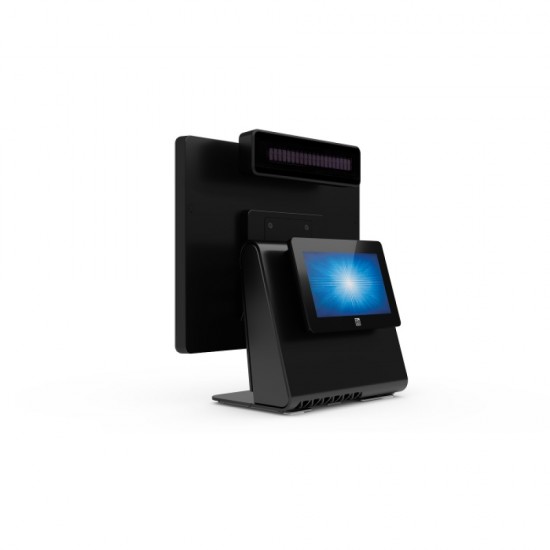

Additional features Touch Touch Systems	Optional Peripherals: Optional accessories include MSR, barcode scanner, fingerprint reader, EMVs and customer facing displays. Mounting Options 75mm VESA mount. Wireless Connectivity 802.11 a/b/g/n/ac 2.4GHz and 5GHz; Bluetooth 5.0. Regulatory approvals and declarations UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC
