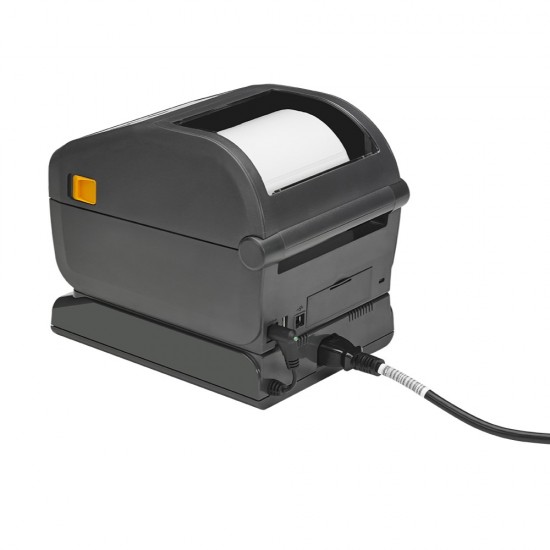

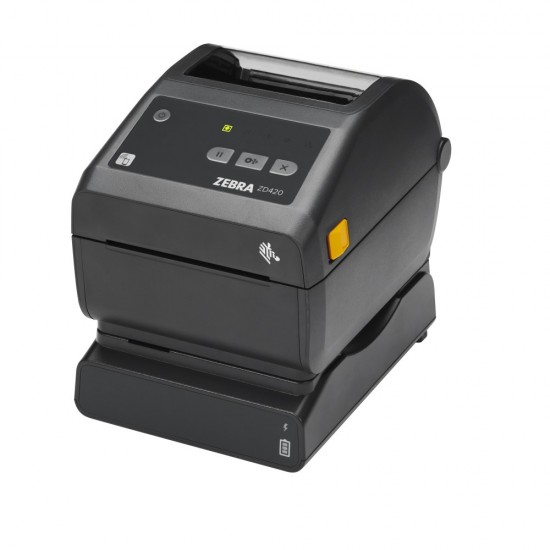

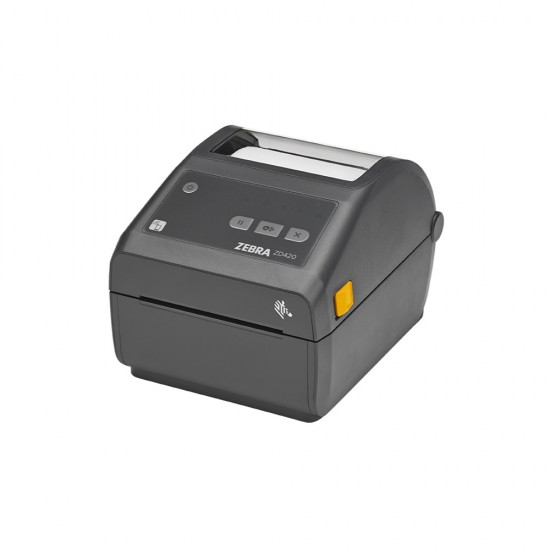

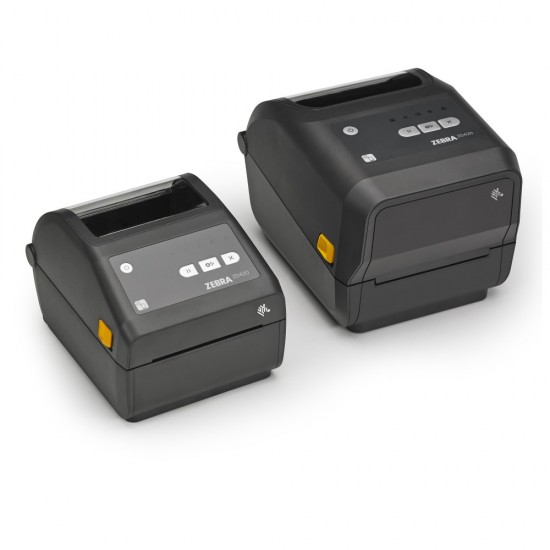

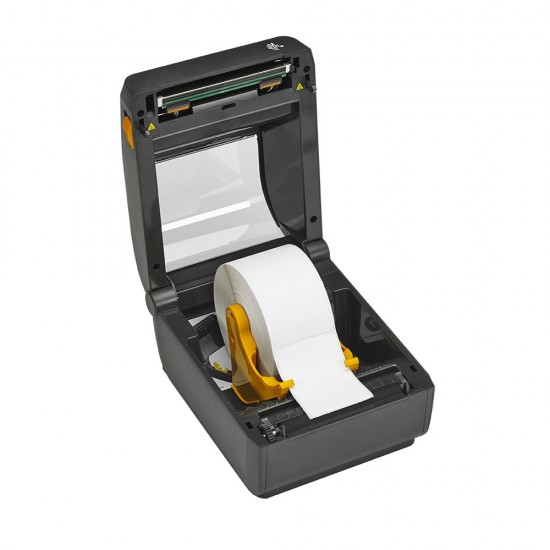

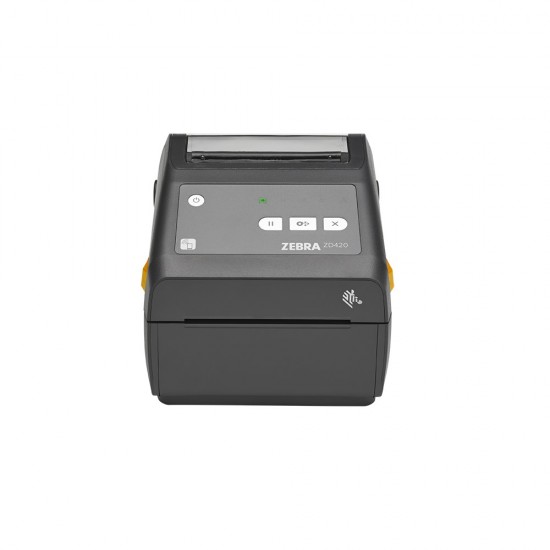

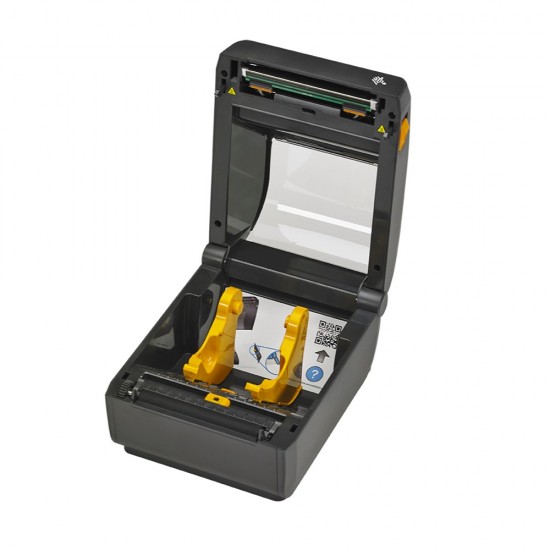

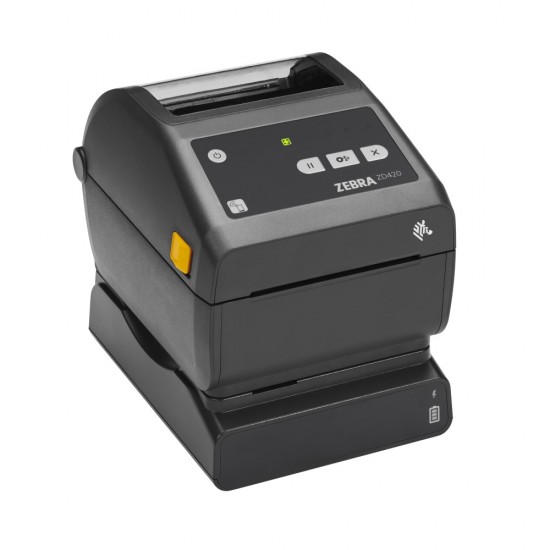

ZD-420d Barcode Printer

Downloads

File	Size	Download
zd420d-technical-specifications-en-us.pdf	161.45KB	Download

Description

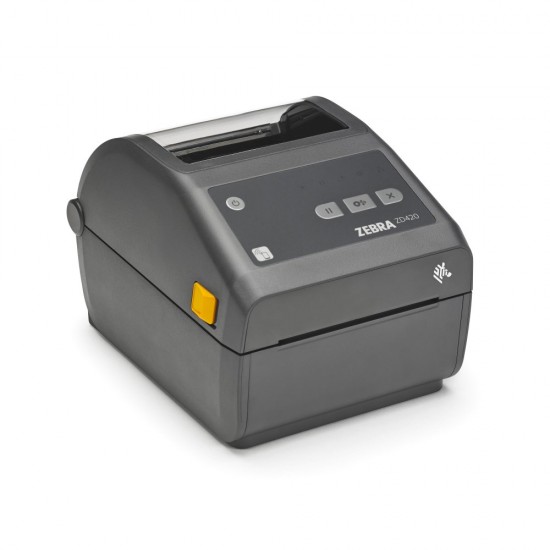

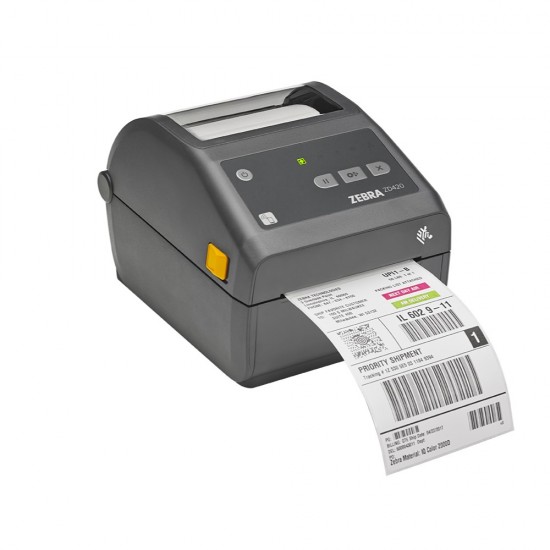

Barcode Printer ZD-420d direct thermal USB 2.0-USB Host-Ethernet-BTLE.

Fast 4-inch printer that is easy to use, easy to deploy and easy to manage. A new ribbon cartridge and more status icons maximize uptime by making using the printer easier than ever to use. With virtually every modern wired and wireless connectivity option and support for many printer languages, deployment is always fast and easy. New connectivity and media handling options whenever needed. Monitor and manage all ZD420c printers from the cloud. Memory 512MB Flash/ 256MB SDRAM. Maximum Print Width 4.09in./104mm. Maximum Print Speed 6in./152mm per second, 203dpi. Firmware ZPL II, EPL 2, XML, ZBI.

ZD230d direct thermal printer

ZD230t thermal transfer printer

ZEBRA

Specifications

Barcode Printers
Printing technology	Direct Thermal ZD420d
Printing Speed	152mm/sec
Printing Width	104mm
Printing Resolution	203dpi
Memory	512MB Flash, 256MB SDRAM (standard)
Interfaces printers	USB 2.0, USB Host, Ethernet, Bluetooth Low Energy. Options: RS-232 Serial, DB-9 factory Ethernet 10/100 internal/ wireless radio: 802.11ac Wi-Fi and Bluetooth 4.1
Additional features	Programming Language: ZPL II; EPL 2; XML; ZBI Sensors: Head-up sensor, movable black mark sensor, limited range from center to left side, fixed off-center gap sensor. Dimension: 254x202x177mm/ Weight: 2.3kg.
