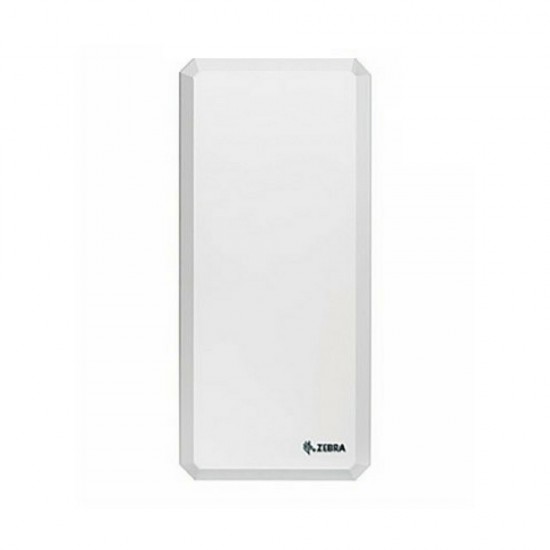

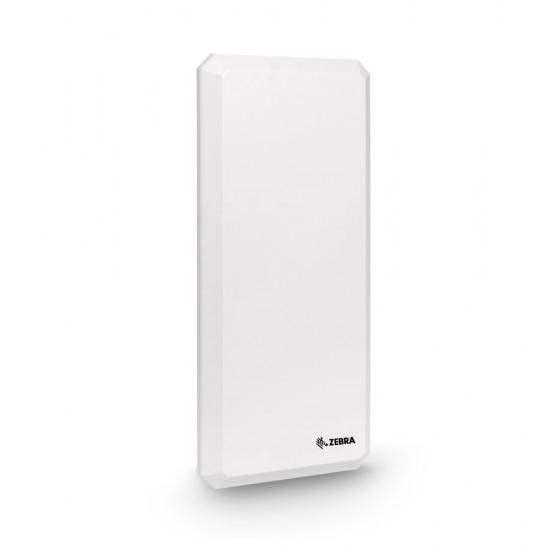

Zebra AN440 Wide-band RFID Antenna

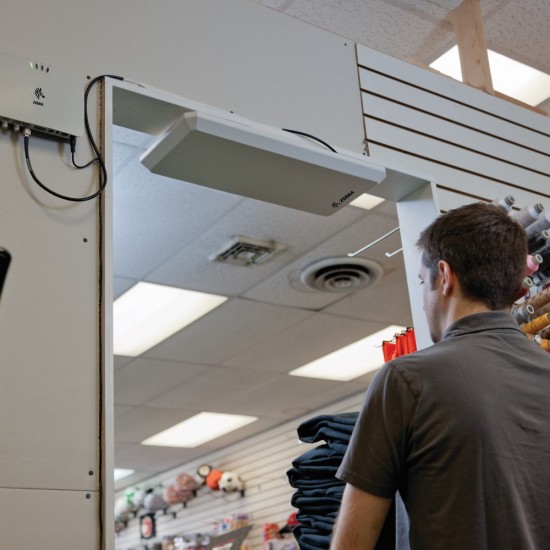

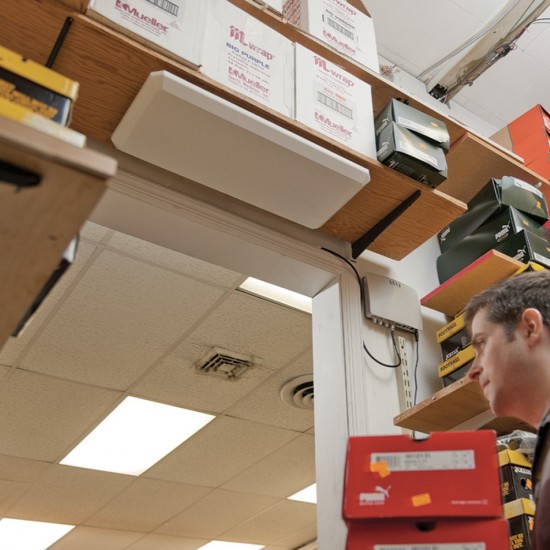

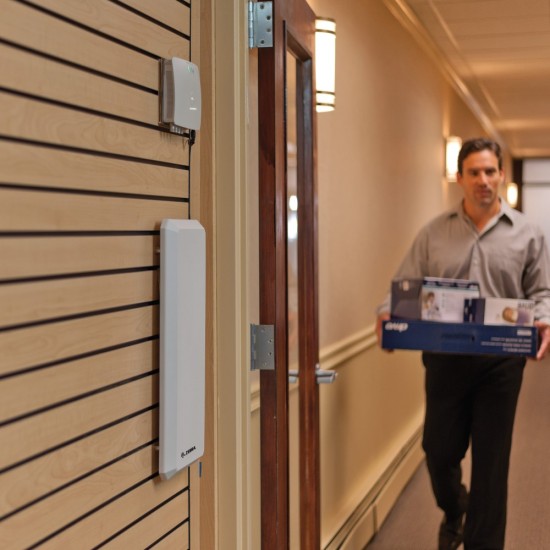

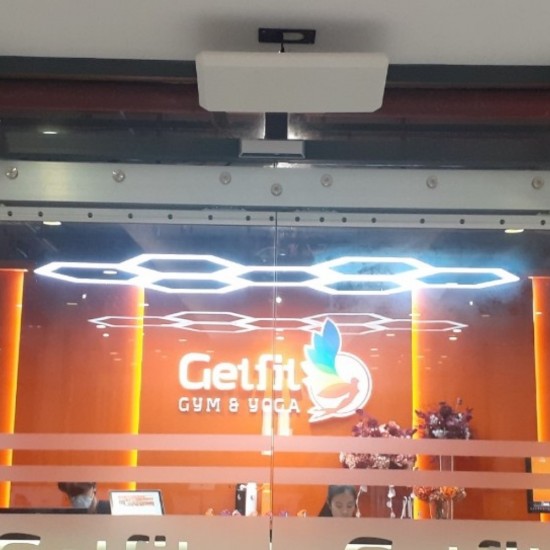

Wide-band frequency ranges enable these antennas to be utilized in worldwide deployments, providing cost-efficiencies and a simplified RFID infrastructure. Large area coverage for high-capacity, high-throughput environments. Easy to mount with rugged white housing to fit to customer-facing and industrial settings. Achieves superior read zones around stockroom shelves, warehouse doorways and dock platforms. Designed to deliver fast and accurate communication of EPC-compliant passive tag data to the RFID readers. Workflows keeps flowing, inventory counts stay accurate and productivity reaches new heights.


Specifications

Device
Environment Operating Temperature -30°C to +70° C. Storage Temperature -40°C to +85°C. Sealing IP67. Humidity IEC-68-2-30 (-25°C to +40°C, 24 hour cycles of 90% relative humidity.
Device dimension 575.1x259.1x33.52mm/ Weight 3.2kg

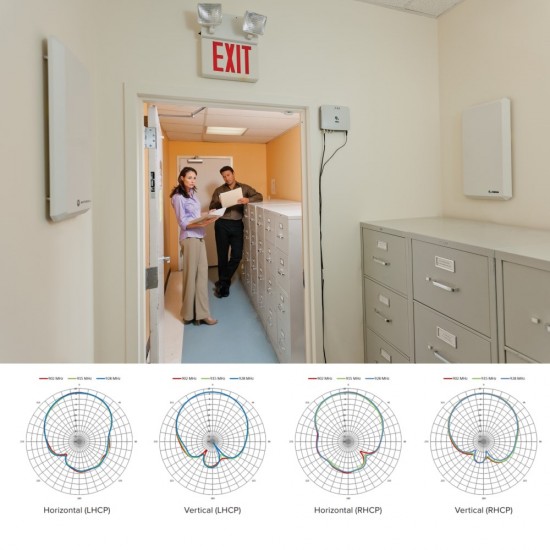

Additional device features Polarization 1 x Left-hand circular / 1 x Right-hand circular. Connector Dual N-Type Female. Connector Location Rear. Mounting studs provided. VSWR (Return Loss) 1.22:1. Front to Back Ratio 20 dB. Maximum Power 10 Watts. Vibration: MIL-STD-810G, Method 507.5, Procedure II – Aggravated, IEC-68-2-6 (10 to 150 Hz, 0.5g, one hour in each of two axes – random vibration).
Frequency Frequency ranges: EU:865-868MHz
