HC20 Mobile Computer

Downloads

File	Size	Download
hc2x-hc5x-spec-sheet-en-us (2).pdf	416.6KB	Download
hc2x-hc5x-guide-accessory-en-us (1).pdf	1.9MB	Download

Description
Video

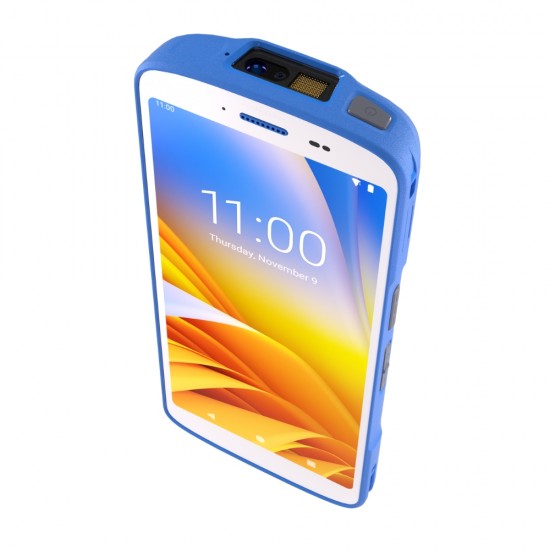

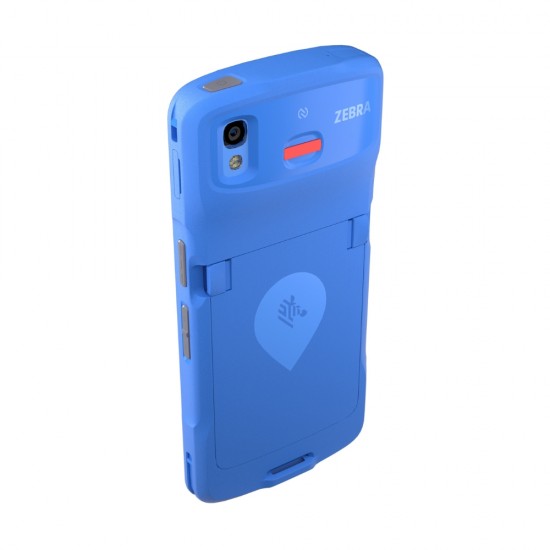

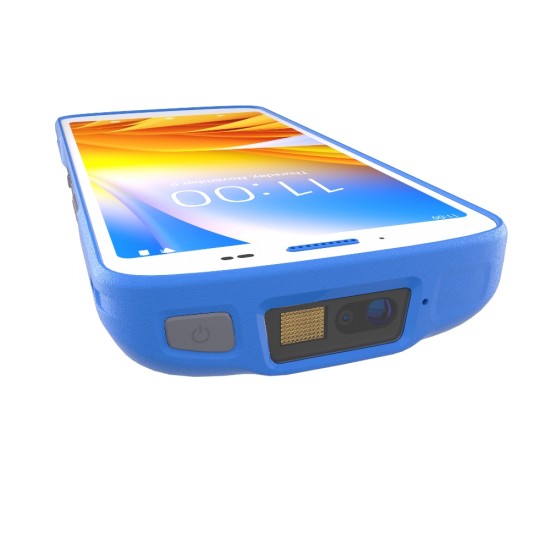

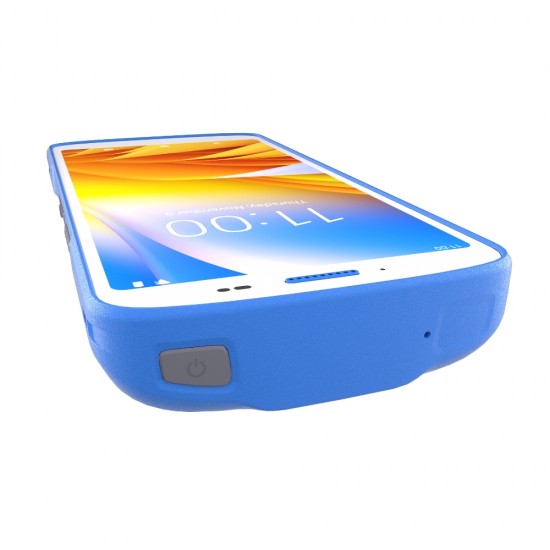

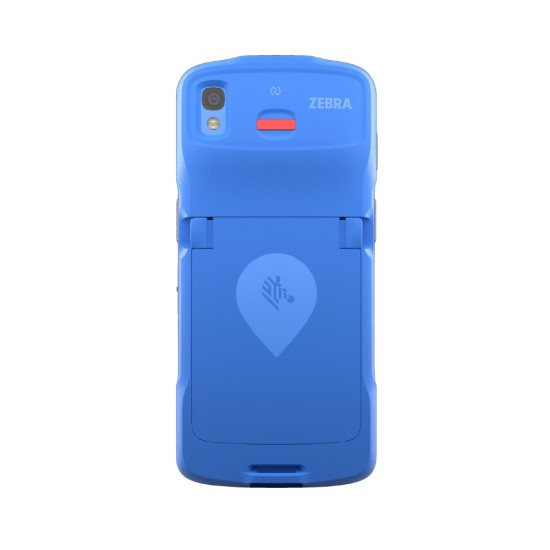

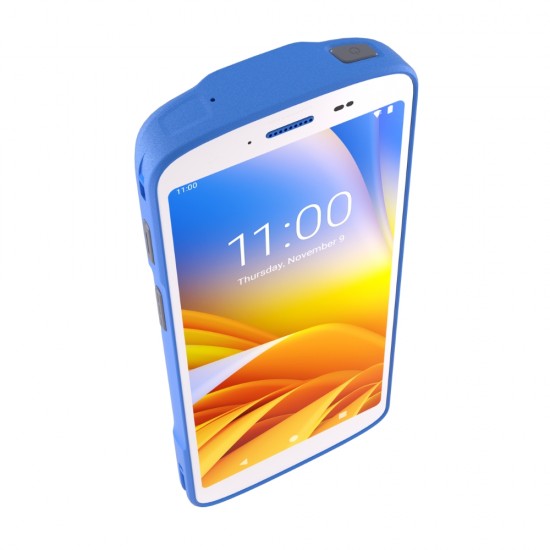

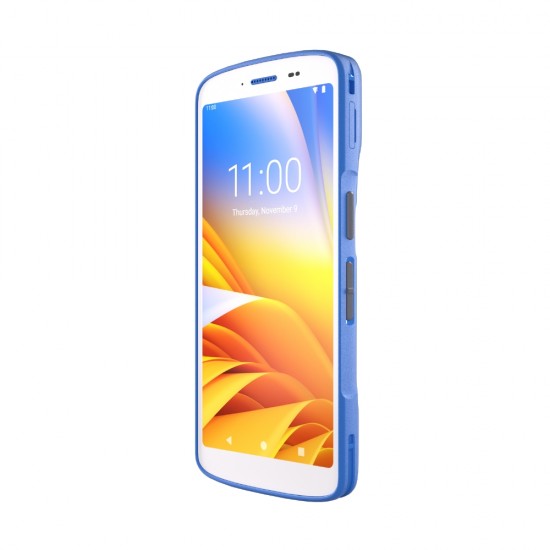

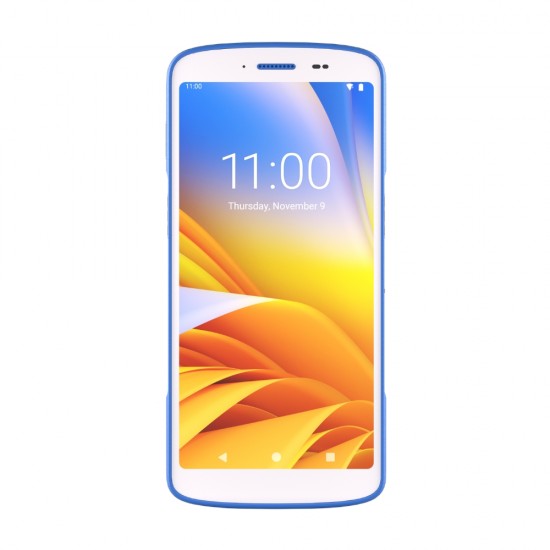

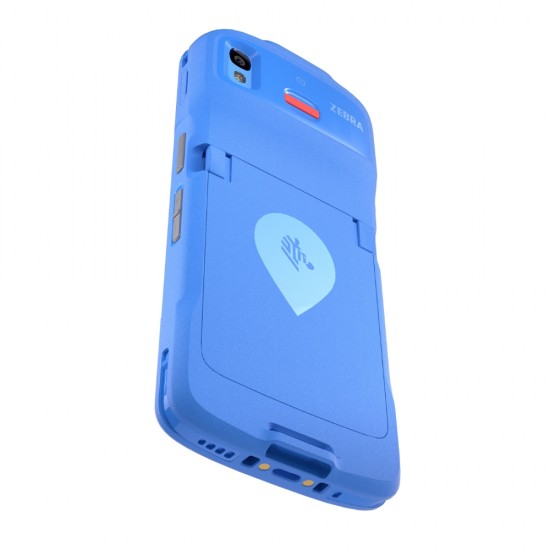

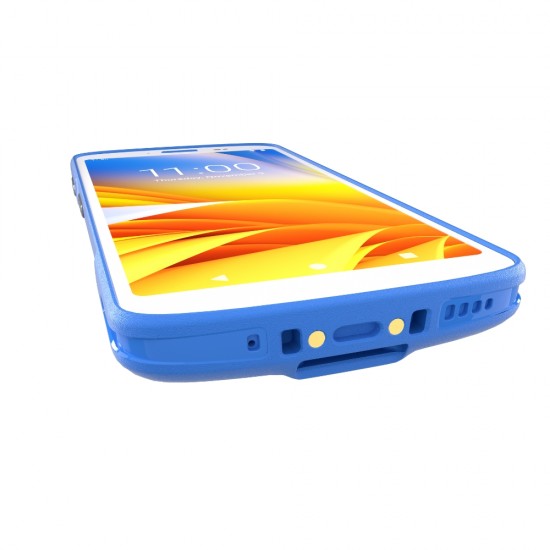

Zebra HC20 Mobile Computer Healthcare 2D, PTT, USB-C, BT, Wi-Fi, NFC, Android, GMS

The Zebra HC20 is a healthcare-specific mobile computer designed for clinical efficiency, featuring a disinfectant-resistant design, an SE4720 scanner for healthcare barcodes, and a red alarm button for emergencies. It runs on an Android platform with updates up to Android 16 and includes a 16 MP rear camera, Wi-Fi 6, and multiple microphones. Its ergonomic, balanced design and powerful performance from a Qualcomm processor and 6 GB RAM/64 GB storage make it suitable for a variety of healthcare tasks. Disinfectant-resistant design, built with medical-grade plastic, the housing and sealed battery compartment are resistant to disinfectants and easy to clean. Advanced scanning: Equipped with the SE4720 scanning module to capture all 1D and 2D healthcare barcodes, with a bright LED to confirm successful scans. Emergency alert: Features a dedicated red alarm button for rapid, vital communication during emergencies. Enhanced communication: Includes three built-in microphones and supports Bluetooth headsets for clear voice calls and push-to-talk (PTT) functionality.

ZEBRA

Specifications

Mobile Terminals
Monitor pda	6.0 in. color Full High Definition+ LED backlit (1080 x 2160), 450 NITS; Corning® Gorilla® Glass. Multi mode capacitive touch with bare or light gloved fingertip input
NFC	NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support – Front Tap NFC for optimized contactless payment, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK.
Operation System Mobile Computer	Android 13/ Android 14/ Android 16
CPU pda	Qualcomm® 5430 hex-core, 2.1 GHz
Memory pda	6 GB RAM/64 GB UFS Flash
Communication	WWAN (HC25/HC55), WLAN, WPAN, USB 3.1 (Bottom Type C) - Super Speed (host and client)
Interface-Ports	Supports up to 2TB MicroSD
Barcode scanner	SE4720 1D/2D Scan Engine with White Illumination/ Green Aimer/ Occasional barcode scanning available via camera; barcode decoding software included
Battery pda	User removable; rechargeable Li-Ion; 3800mAh/ 14.63Wh; standard capacity with BT BLE; PowerPrecision for real-time battery metrics; fast charge;
Keyboard	On-screen keypad
Sealing	IP68 and IP65, with battery per applicable IEC sealing specifications
Resistance	Multiple 4 ft (1.25m) drops to tile over concrete across temperature (+14F to +122F/-10C to +50C) per MIL-STD 810H. 500 tumbles, 1.6 ft (0.5m). Operating Temperature +14F to +122F (-10C to +50C). Storage Temperature -40F to +158F (-40C to +70C.
Dimensions/ Weight pda	6.5 in L x 3.0 in W x 0.49 in D (165mm L x 76.3mm W x 12.5m D)/ Weight 8.4 oz (239g).
Additional features mobile terminals	Camera Rear 16 MP. Built-in microphones for AI noise suppression and stereo record; vibrate alert; Dual speakers for loudness; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; High quality stereophonic speaker phone; Cellular Circuit Switch voice; HD voice; VoLTE EVS; VoIP incl. SWB Audio
