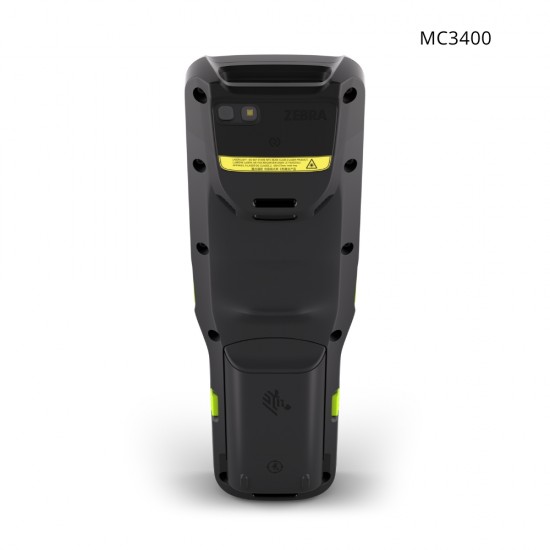

MC3400/MC3450 Mobile Computer

Downloads

File	Size	Download
mc3400-mc3450-spec-sheet-en-us.pdf	401.67KB	Download

Description

Zebra MC3400/MC3450 Mobile Computer Android, WiFi, Bluetooth, NFC, IP65

Versatile key-based mobile computers, the MC3400 and MC3450 are straight shooter and gun, packed with the latest mobility features to empower the workforce and to meet the ever-increasing needs of today’s on-demand, e-commerce economy. Run demanding apps with 2.5x more processing power. Keeps workers connected with Wi-Fi 6E, 5G and Private 5G. Prevents unauthorized device access with biometric facial recognition. An improved keypad design makes data entry easier, a more rugged design increases reliability, and more data capture options increase flexibility. Tap into new capabilities that increase security, make devices easy to find and more with Zebra DNA’s software suite. Easy to run, repair, oversee and manage.

ZEBRA

Specifications

Mobile Terminals
Monitor pda	4 in WVGA (800 x 480), color display, Standard: 350 NITS (typical), Expanded/Full: 600 NITS (typical). Touch Panel Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately), Corning Gorilla Glass optically bonded.
Operation System Mobile Computer	Supported Android versions: Android 13, Android 14, Android 15, Android 18
CPU pda	Qualcomm® 4490 octa-core, 2.4 GHz
Memory pda	Standard: 4 GB RAM/64 GB Flash; Expanded: 6 GB RAM/64 GB Flash; Full: 6 GB RAM/128 GB Flash
Communication	USB 2.0 High Speed OTG (Host and Client) WLAN (WiFi), WPAN (Bluetooth)

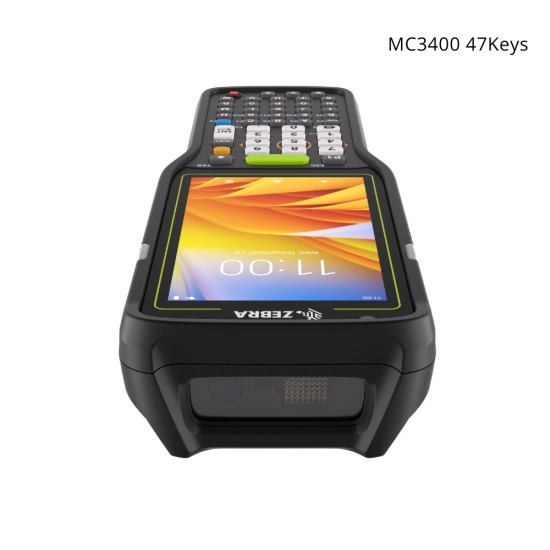

Barcode scanner	SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology; SE55 Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D. Scan Engine; SE4710 1D/2D Scan Engine.
Battery pda	Standard Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.2 Wh); Hot swap battery backup with temporary session persistence.

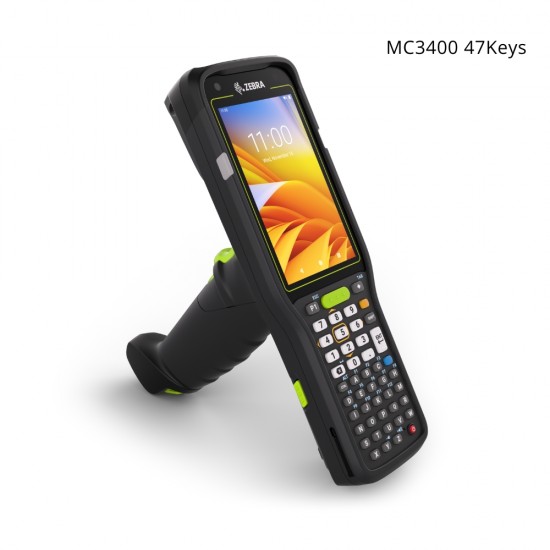

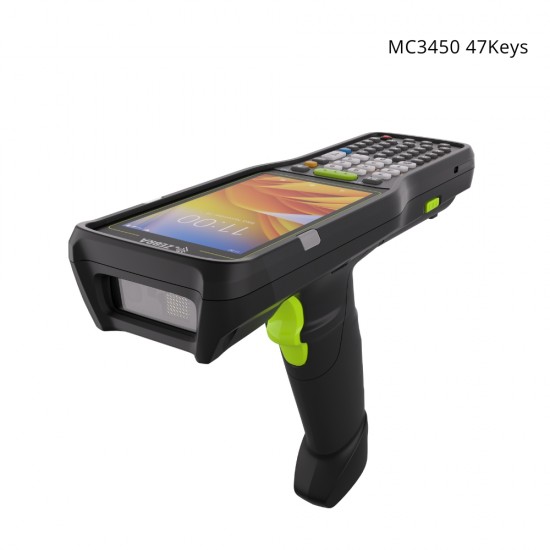

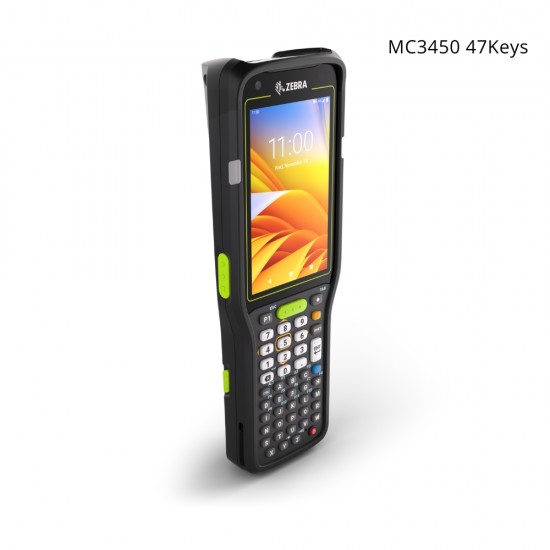

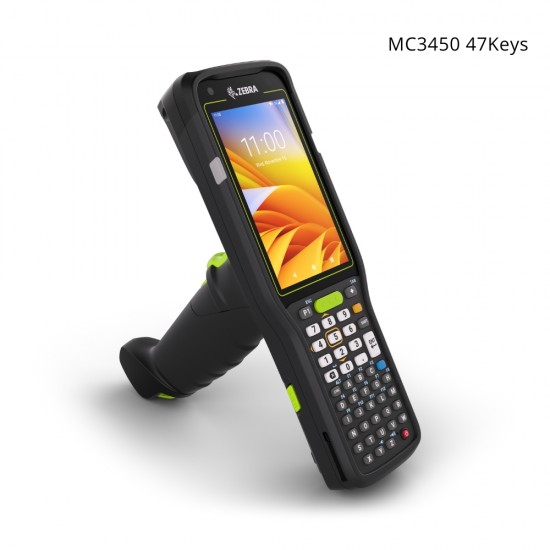

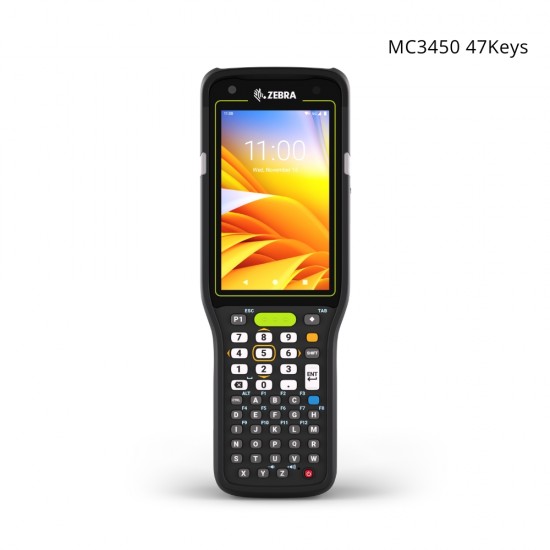

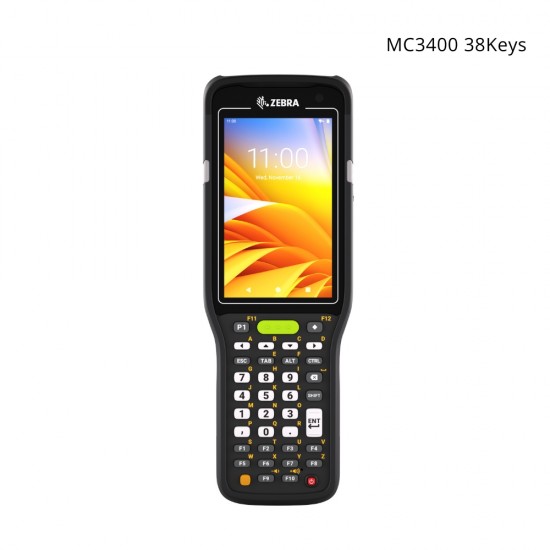

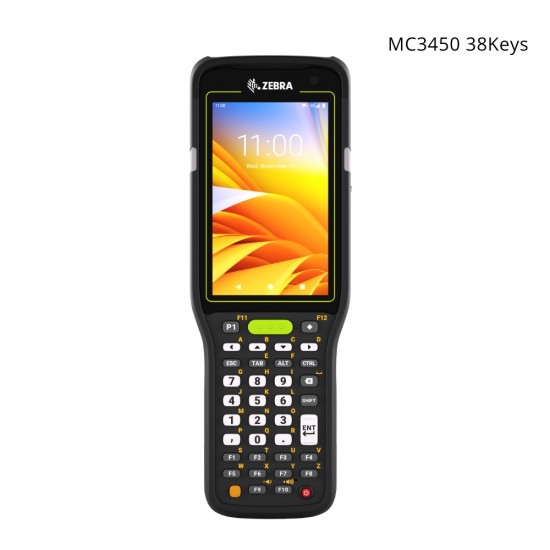

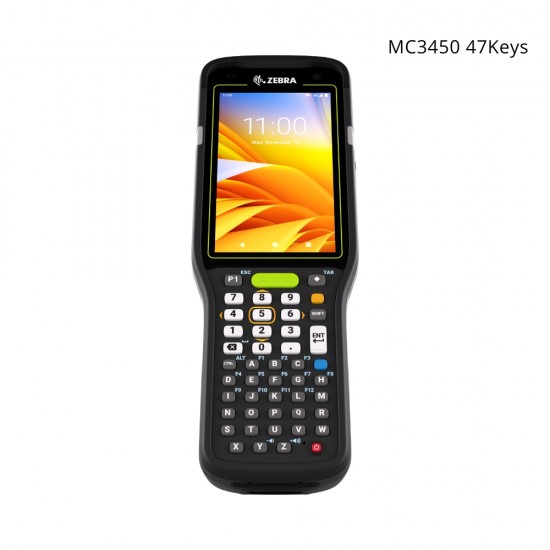

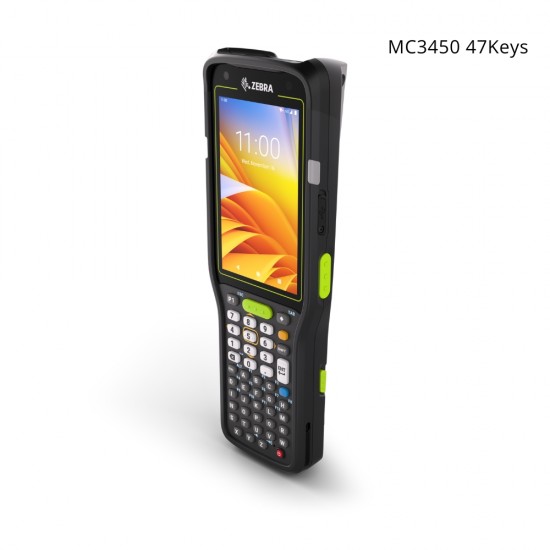

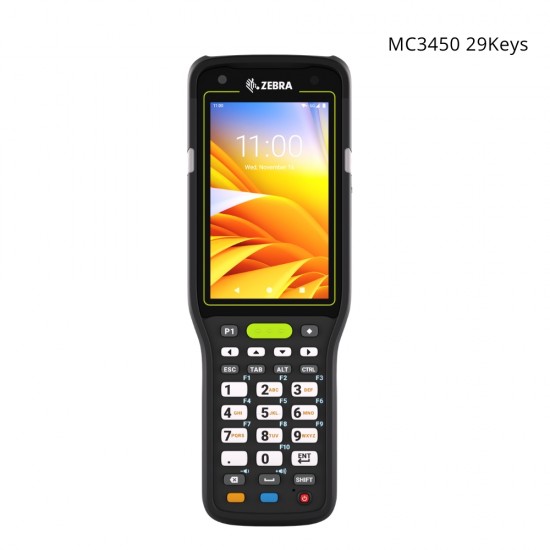

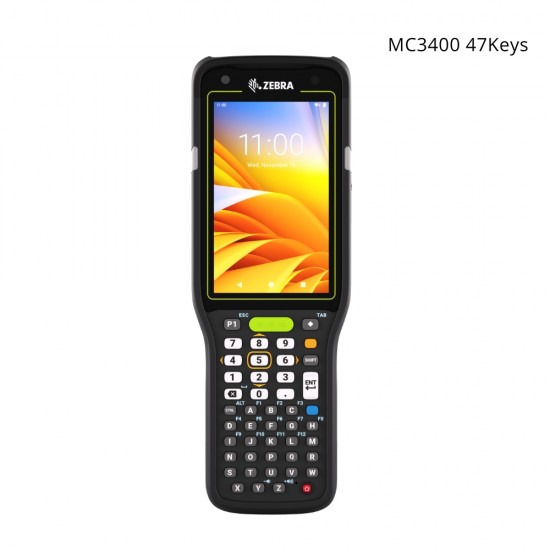

Keyboard	Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key)
Sealing	IP65
Resistance	Per MIL-STD 810H: 8 ft (2.4m)⁶ to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F). Operating Temperature -4F to +122F (-20C to +50C). Storage Temperature -40F to +158F (-40C to +70C)

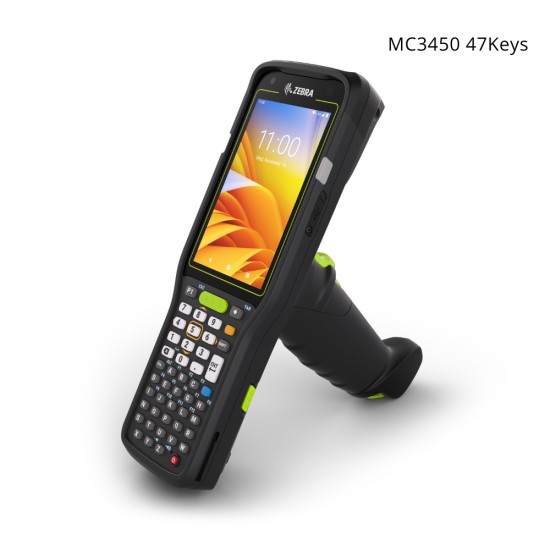

Dimensions/ Weight pda	Straight Shooter: 8.2 in L x 2.9 in W x 1.5 in H (208.5mm L x 73.5mm W x 37.1mm H) Weight Straight Shooter: 15.6 oz (442g) Gun: 8.2 in L x 2.9 in W x 6.5 in H (208.5mm L x 73.5mm W x 165.3mm H) Weight Gun: 18.6 oz (528g)
Additional features mobile terminals	Camera Front: 5 MP; Rear: 13 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR. Light Sensor: Automatically adjusts display backlight brightness (Expanded and Full). Magnetometer: MC3450 only: eCompass automatically detects direction and orientation Motion Sensor: 3-axis accelerometer with MEMS Gyro. Speaker, microphone, Push-to-Talk (PTT Voice; internal speaker, Bluetooth wireless headset support, USB-C headset). TAA compliant, ARCore Google pending.
