TC22R Handheld RFID Reader

Downloads

File	Size	Download
tc2xr-series-spec-sheet-en-us.pdf	169.54KB	Download
tc22-tc27-guide-accessory.pdf	3.09MB	Download

Description
Video

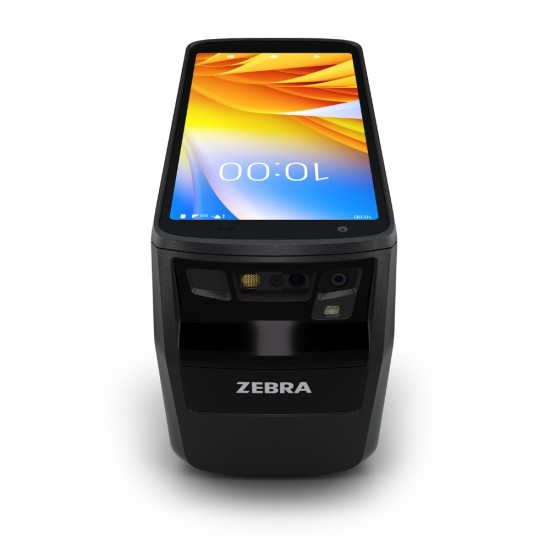

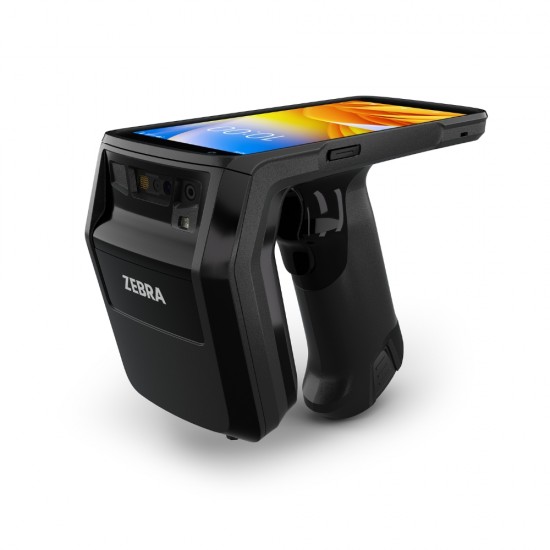

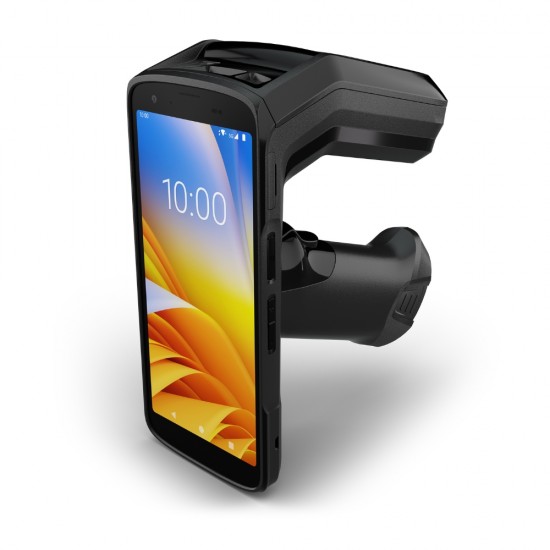

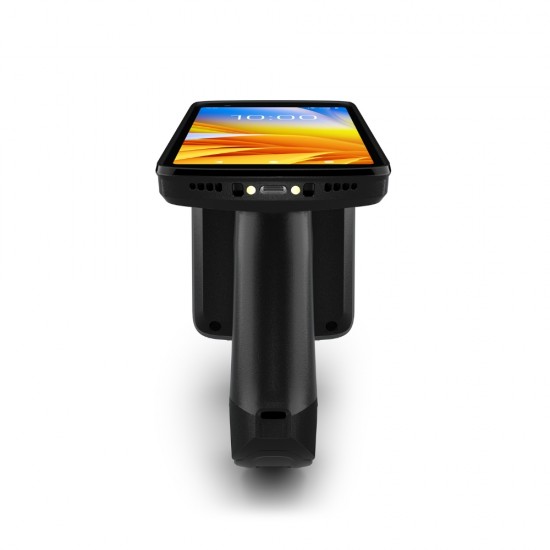

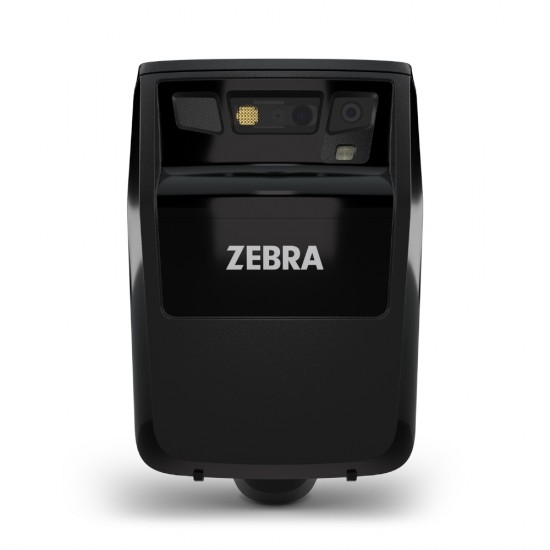

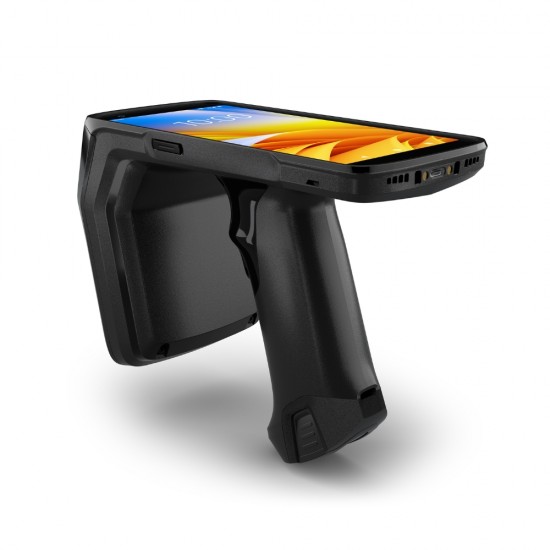

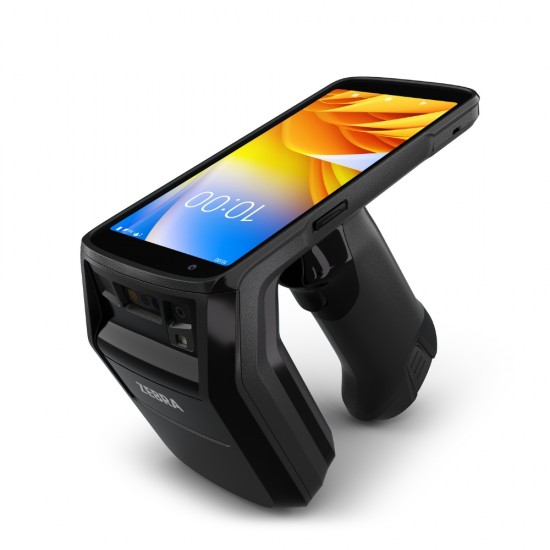

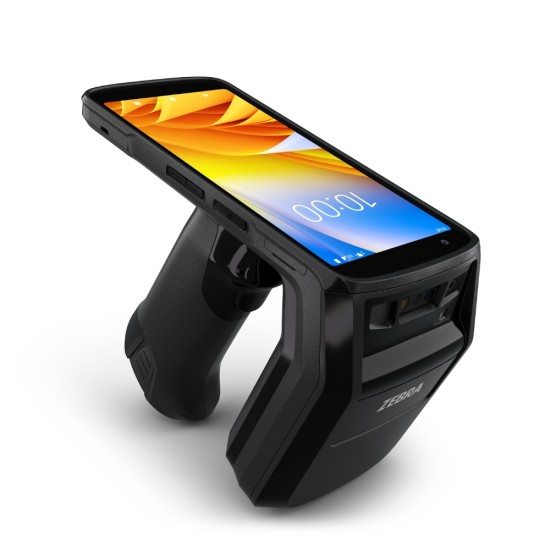

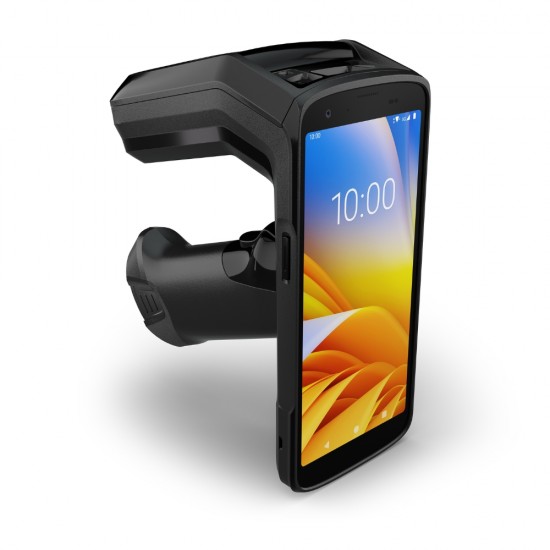

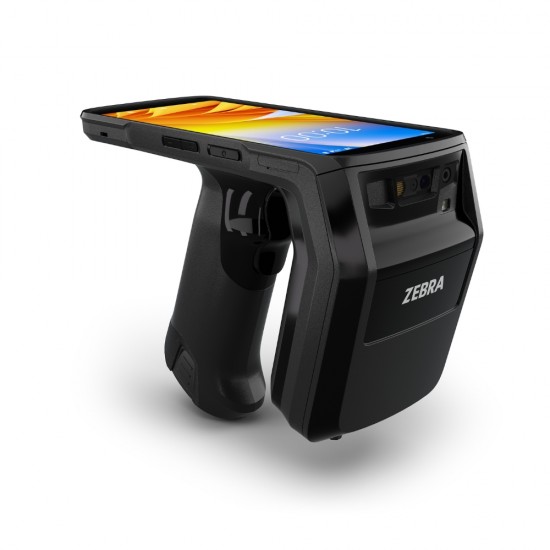

Zebra TC22R Handheld RFID Reader UHF RFID, 800MHz, 2D, SE4710, USB-C, BT, Wi-Fi, NFC, Android, GMS

Integrated, lightweight, all-touch design to track assets and inventory for extended periods with less fatigue. Capture data in less time and with less effort using a TC22R handheld reader that delivers industry-leading performance, in an all-in-one form factor. Multi-modal capacitive touchscreen with 6.0" FHD display and 450 nits. Interfaces: Wi-Fi 6E, Bluetooth 5.2, USB 3.1, and NFC, 2D scan engine (SE4710), 16 MP rear camera, 5 MP front camera, UHF RFID reader with up to 1,300 tags/sec. IP65 certified, drop-resistant from up to 1.5 metres. Reads up to 1,300 tags per second, enables greater insights into asset movement and real-time data from the first mile to the last or from the front of the store to the back. Fully integrated Android-based solution that can be supported by mainstream MDMs, reducing deployment headaches and management overhead.

ZEBRA

Specifications

Mobile Terminals

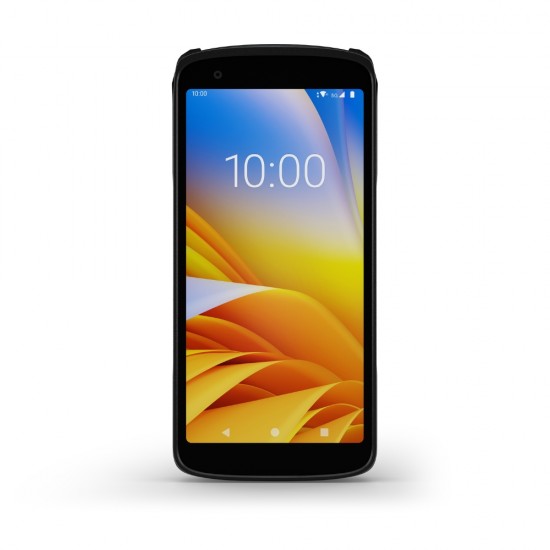

Monitor pda	6.0 in. color Full High Definition+ (1080 x 2160), LED backlight, 450 nits. Multi-mode capacitive touch with bare or light gloved fingertip input
NFC	NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support
Operation System Mobile Computer	Android 13/ Android 14
CPU pda	5430 hexa-core 2.1 GHz
Memory pda	6 GB RAM / 64 GB Flash
Communication	WLAN, WPAN, Class 2, Bluetooth v5.2
Interface-Ports	USB 3.1 (Bottom Type C), Super Speed (host and client)
Barcode scanner	Scanning SE4710 1D/2D scan engine
Battery pda	User-removable, quick-release, rechargeable 7,000 mAh Li-Ion battery with PowerPrecision+ for real-time battery metrics.
Keyboard	On-screen keypad
Sealing	IP65
Resistance	Multiple 5 ft./1.5 m drop to tile over concrete, operating temperature/ Operating Temperature: 14° F to 122° F / -10° C to 50° C/ Storage Temperature: -40° F to 158° F / -40° C to 70° C
Dimensions/ Weight pda	145 x 84 x 177 mm/ 569 gr
Additional features mobile terminals	Camera Forward-facing 16 MP camera, front-facing 5 MP camera. Notifications: Audible tone, vibration. Indicators: Decode LEDs, battery status LED, beeper. Buttons: User-programmable button for barcode scanning (default), PTT or other use, volume up/down, power. User Input: Tri-function user-programmable trigger.
