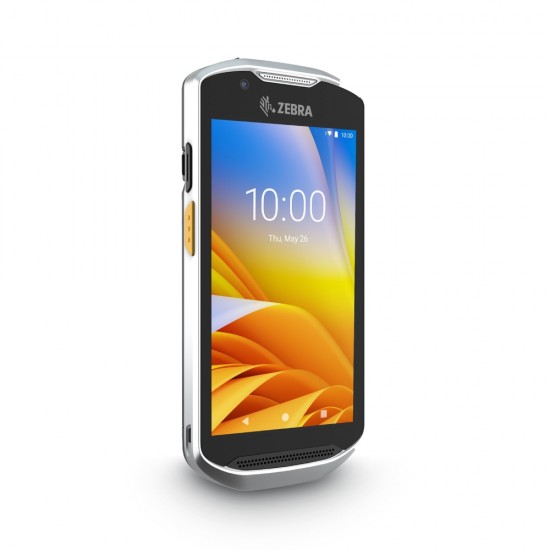

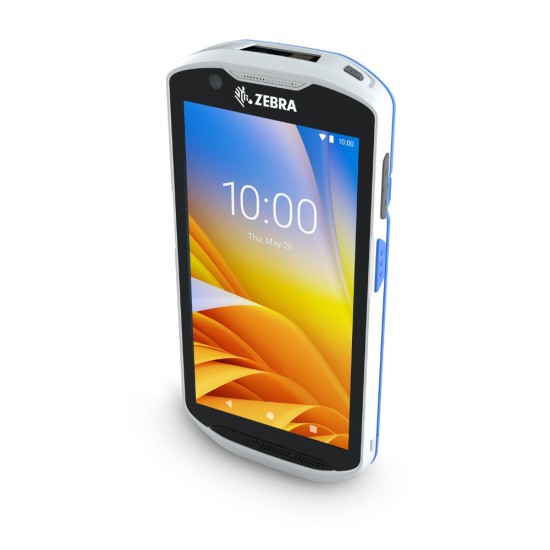

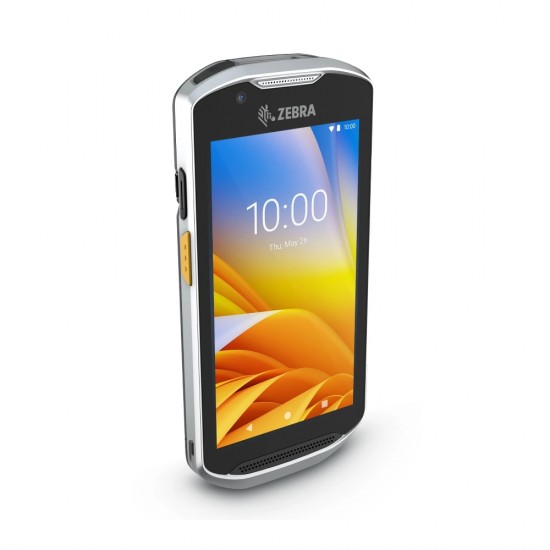

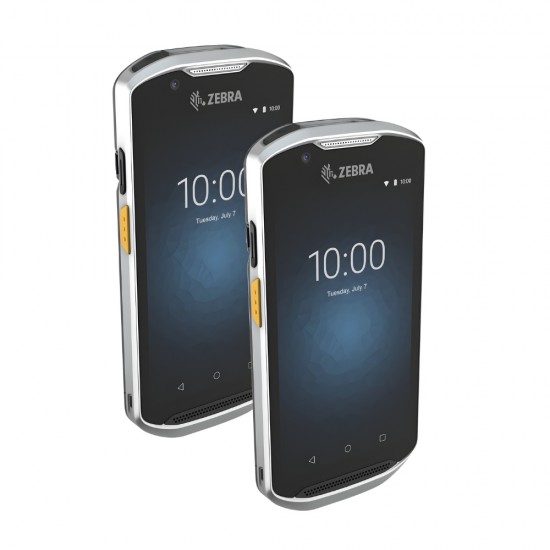

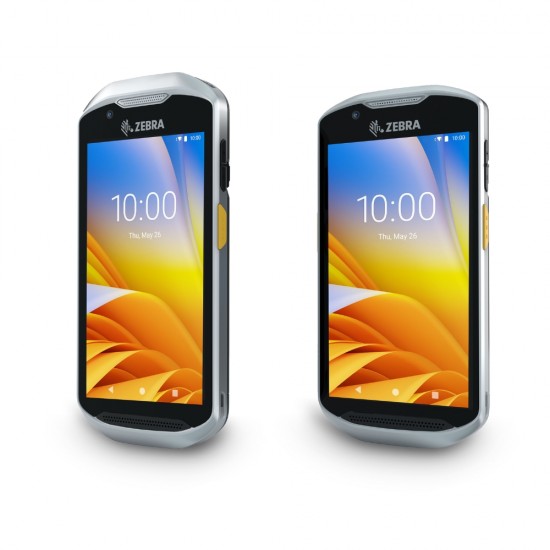

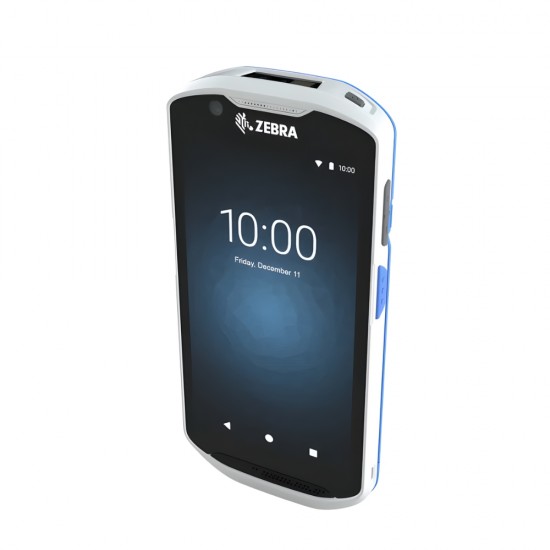

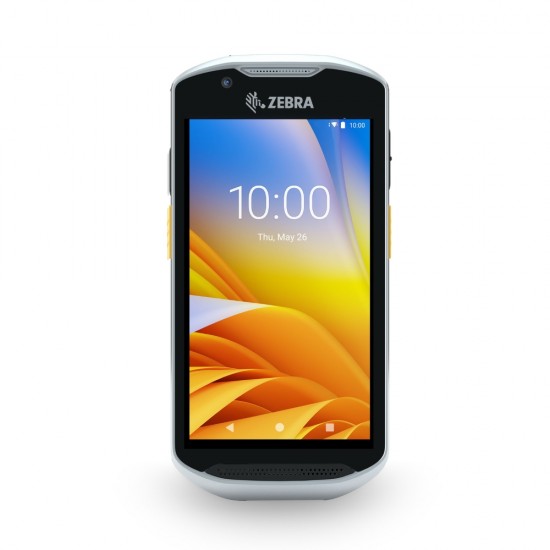

TC52x & TC57x Mobile Touch Computer

Name: TC52x & TC57x Mobile Touch Computer
Brand: ZEBRA
Price: 1.00 EUR
Availability: InStock

TC52x & TC57x Mobile Touch Computer

Downloads

File	Size	Download
tc5x-series-spec-sheet-en-us.pdf	399.03KB	Download

Description
Video

Zebra TC52x, TC52ax & TC57x Mobile Touch Computers

The TC5X Series rugged handheld mobile computers, with three models that deliver the ultimate in rugged, all-touch mobile computing. Mobile touch computers with Android, Integrated 1D/2D scanner (SE4720), PowerPrecision+ battery for up to 14 hours of battery life, including warm-swap mode, IP65 and IP68 certifications, impact-resistant from 1.2 m. Bluetooth 5.0, NFC, GPS, Wi-Fi (802.11ac) and optional 4G LTE. The Wi-Fi only TC52x and the Wi-Fi/cellular TC57x add support for the latest mobile innovations, paving the way for new apps such as payment solutions. Support for more Mobility DNA tools makes everything easier, from the user interface to device management, integration and app development. The Wi-Fi only TC52ax adds Wi-Fi 6, a new scanner option with intelligent focusing, double the memory to boost application performance and the new Workstation Connect solution that allows the TC52ax to function simultaneously as a workstation and a mobile computer.

ZEBRA

Specifications

Mobile Terminals
Monitor pda	5.0 in. Full High Definition (1920 x 1080); LED backlight, optically bonded to touch panel. Corning Gorilla Glass. Touchpanel: Dual mode capacitive touch with stylus, bare or gloved fingertip input (stylus sold separately); Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating.
Operation System Mobile Computer	TC52x/TC57x/TC52ax: Upgradeable to Android 14
CPU pda	TC52x/TC57x/TC52ax: Qualcomm Snapdragon™ 660 octa-core, 2.45 GHz
Memory pda	TC52x/TC57x: 4GB RAM/32GB UFS Flash TC52ax: 4GB RAM/64GB UFS Flash
Communication	TC52x/TC52ax/TC57x: WLAN, WPAN (Bluetooth), USB 2.0, High Speed (Host and Client) Το TC57x μόνο: WWAN

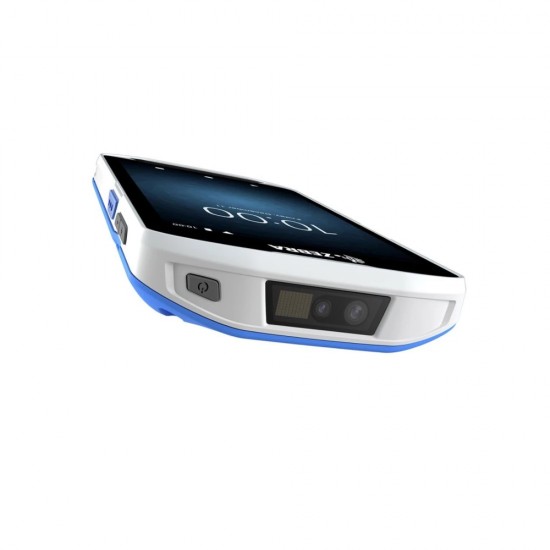

Barcode scanner	All models: SE4720 1D/2D Scan Engine TC52ax only: SE55 Advanced Range 1D/2D Scan Engine with IntelliFocus
Battery pda	Rechargeable Li-Ion, PowerPrecision+; > 15.48 Watt hours, > 4150 mAh, improved battery metrics for better battery management; fast charging (up to 2.4 A); Warm Swap battery mode up to two minutes (120 seconds); BLE battery optional.
Keyboard	On-screen keypad and enterprise keyboard.
Sealing	IP68 and IP65 with battery per applicable IEC sealing specifications
Resistance	Multiple 6 ft./1.8 m drops to concrete with the rugged boot accessory per Mil STD 810 G; multiple 4 ft./1.2 m drops to tile over concrete -10°C to 50°C/14°F to 122°F
Dimensions/ Weight pda	TC52x/TC52ax/TC57x with SE4720: 6.10 in. L x 2.9 in. W x 0.73 in. H 155 mm L x 75.5 mm W x 18.6 mm H TC52ax with SE55: 6.26 in. L x 2.9 in. W x 0.73 in. H 159 mm L x 75.5 mm W x 18.6 mm H Weight (with battery): TC52x/TC57x: 8.8 oz./249 gr TC52ax: (SE4720) 9.2 oz. /260 gr TC52ax: (SE55) 9.4 oz./266 gr
Additional features mobile terminals	Operating Temp. -4°F to 122°F/-20°C to 50°C. Storage Temp. -40°F to 158°F/-40°C to 70°C. Camera, NFC, Light Sensor, Magnetometer, Motion Sensor, Pressure Sensor, Proximity Sensor.
