WT6400 Wearable Computer

Downloads

File	Size	Download
wt6400-spec-sheet-en-us.pdf	387.8KB	Download

Description

ZEBRA WT6400 Wearable Computer Wi-Fi 6, Bluetooth, NFC and MIL-STD 810H

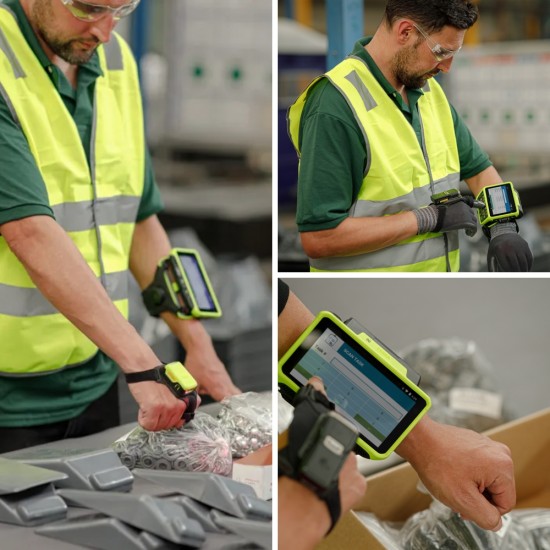

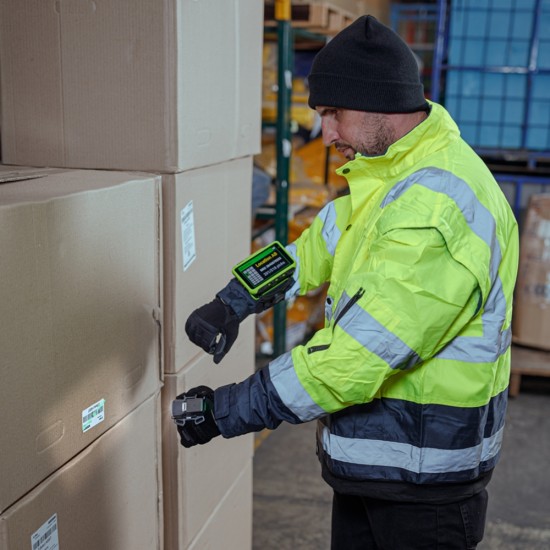

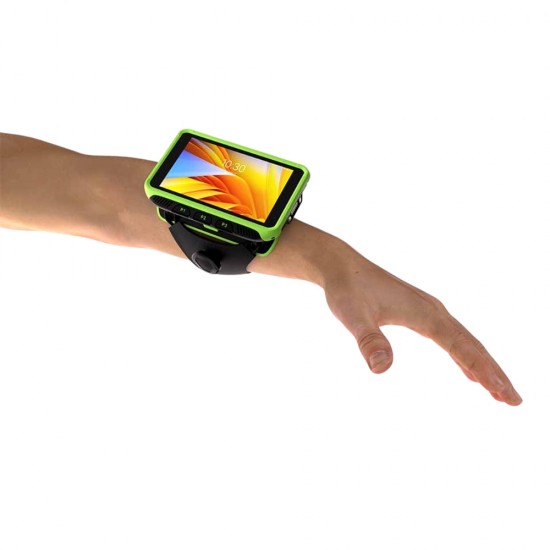

WT6400 is packed with innovations that enable unmatched productivity increases in hands-free computing workflows. Next generation ergonomics bring a new level of comfort, flexibility and ease of use to workers picking orders, sorting goods and managing inventory in demanding environments, including the warehouse, distribution center and manufacturing plant. The touchscreen display area is twice the size of the WT6300, with only a minimal increase in device size. The powerful platform will support your business today and tomorrow, with a next generation Qualcomm processor, double the memory and support through Android 17. And data capture features include an integrated high-resolution 13 MP angled camera, support for Zebra Bluetooth and corded scanners and a model with an innovative integrated keypad. Android Enterprise Recommended (AER).

ZEBRA

Specifications

Mobile Terminals

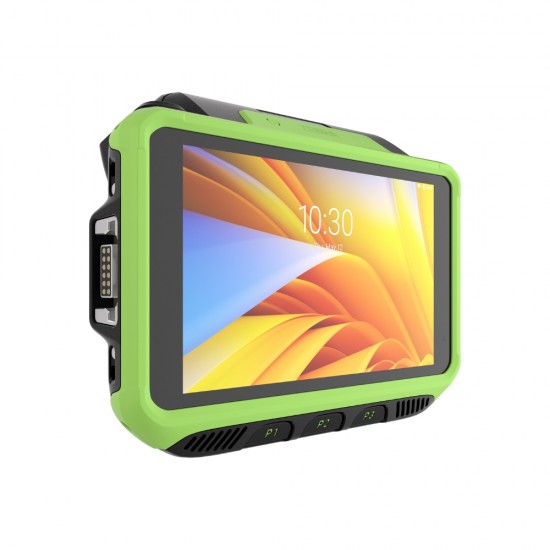

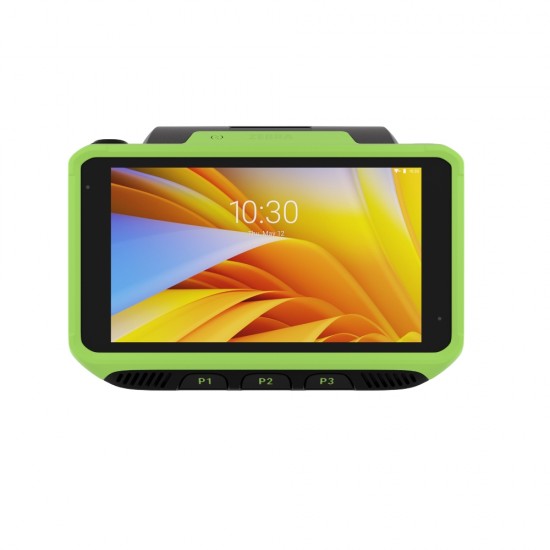

Monitor pda	4.7 inch, color display. Capacitive touch panel; finger, gloved finger or conductive stylus support. Corning™ Gorilla™ Glass Victus™. 720x1280 pixels
NFC	ISO 14443 Type A and B; FeliCa and ISO 15693 cards; NFC Forum cards 1 to 5.
Operation System Mobile Computer	Android 13/ Android 16/ Android 18
CPU pda	Qualcomm™ QCS4490 octa-core; 2.4 GHz
Memory pda	6 GB RAM; 64 GB Flash

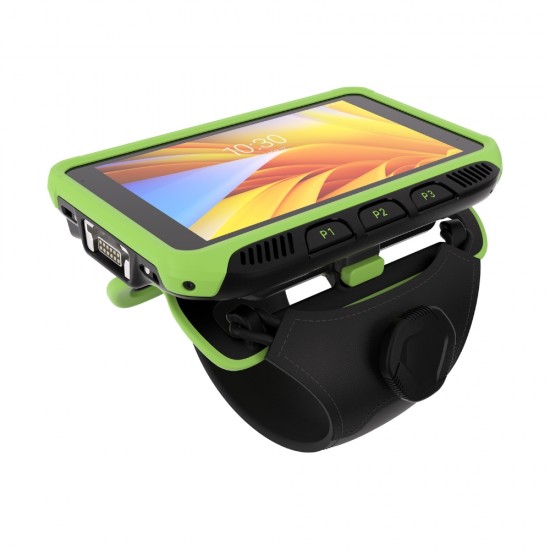

Communication	Two (2) rugged connectors (USB 2.0); two (2) charge pogo pads on each side
Battery pda	Standard battery: typical capacity 3500mAh -4F to +122F (-20C to +50C). Extended battery (freezer rated4): typical capacity, 5000mAh -22F to +122F (-30C to +50C).

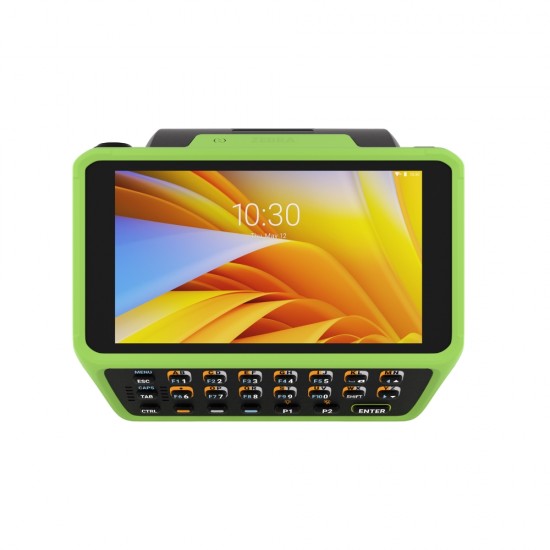

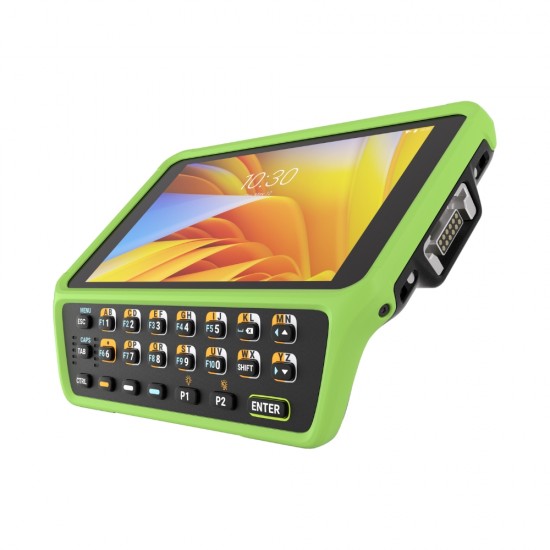

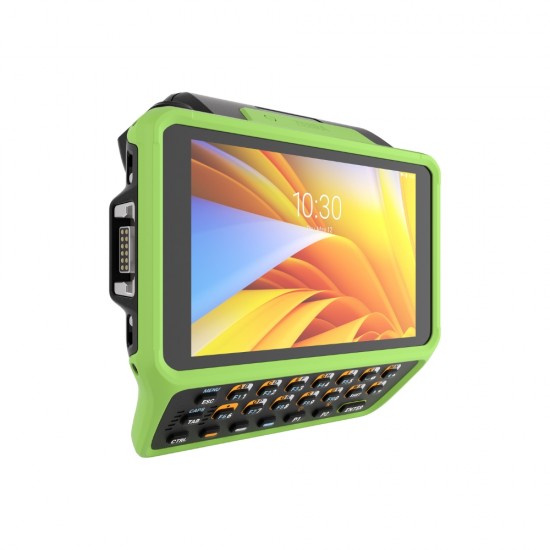

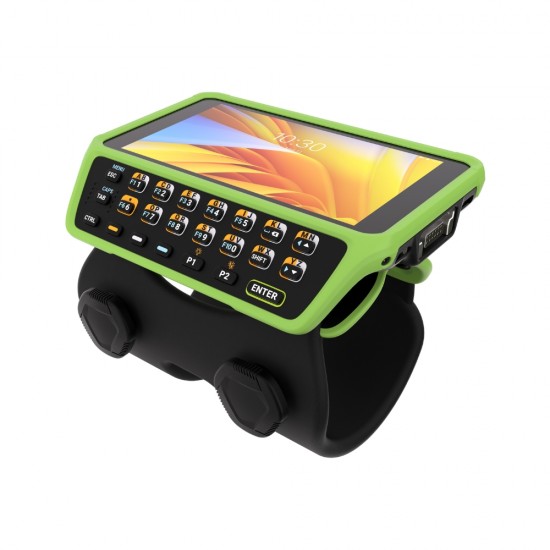

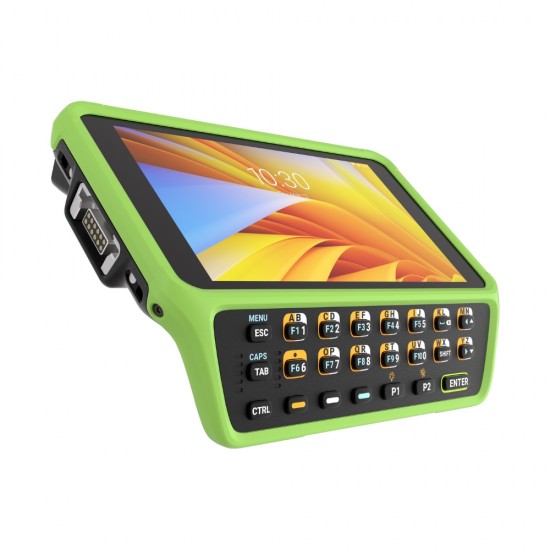

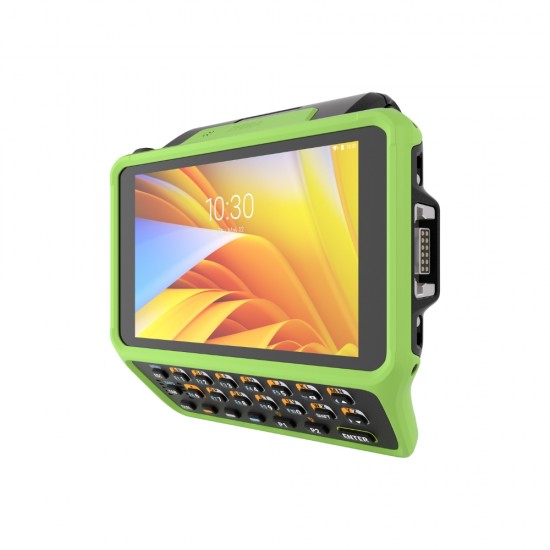

Keyboard	23 key alphanumeric/function (keypad model only)
Resistance	Operating Temperature: -20°C to 50°C/ Storage Temperature: -40ºC to 70ºC. IP65/IP67 . Drop from 1.8m to tile over concrete across operating temperature. MIL-STD 810H
Dimensions/ Weight pda	132.5 x 93 x 13.97mm/ 205 gr without battery

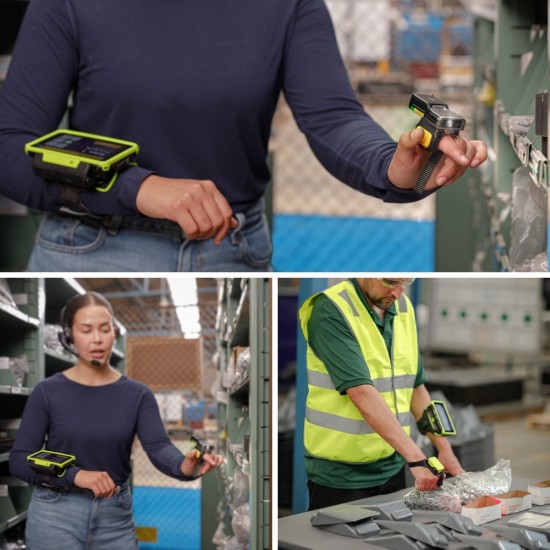

Additional features mobile terminals	Scanning Compatible with Zebra wearable Bluetooth scanners (RS2100, RS5100, RS6100) via NFC tap-to-pair and Zebra wearable corded scanners (RS4000, RS5000) via rugged side connectors. Camera 13 MP side. Light Sensor: Automatically adjusts display backlight brightness. Motion Sensor: 3-axis accelerometer with MEMS Gyro. Magnetometer: eCompass automatically detects direction and orientation. Speaker; microphone; PTT voice.
